1-172520-0

AMP1-172520-0
Heilind Number:AMP1-172520-0
Manufacturer:TE Connectivity
Manufacturer Number:1-172520-0
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

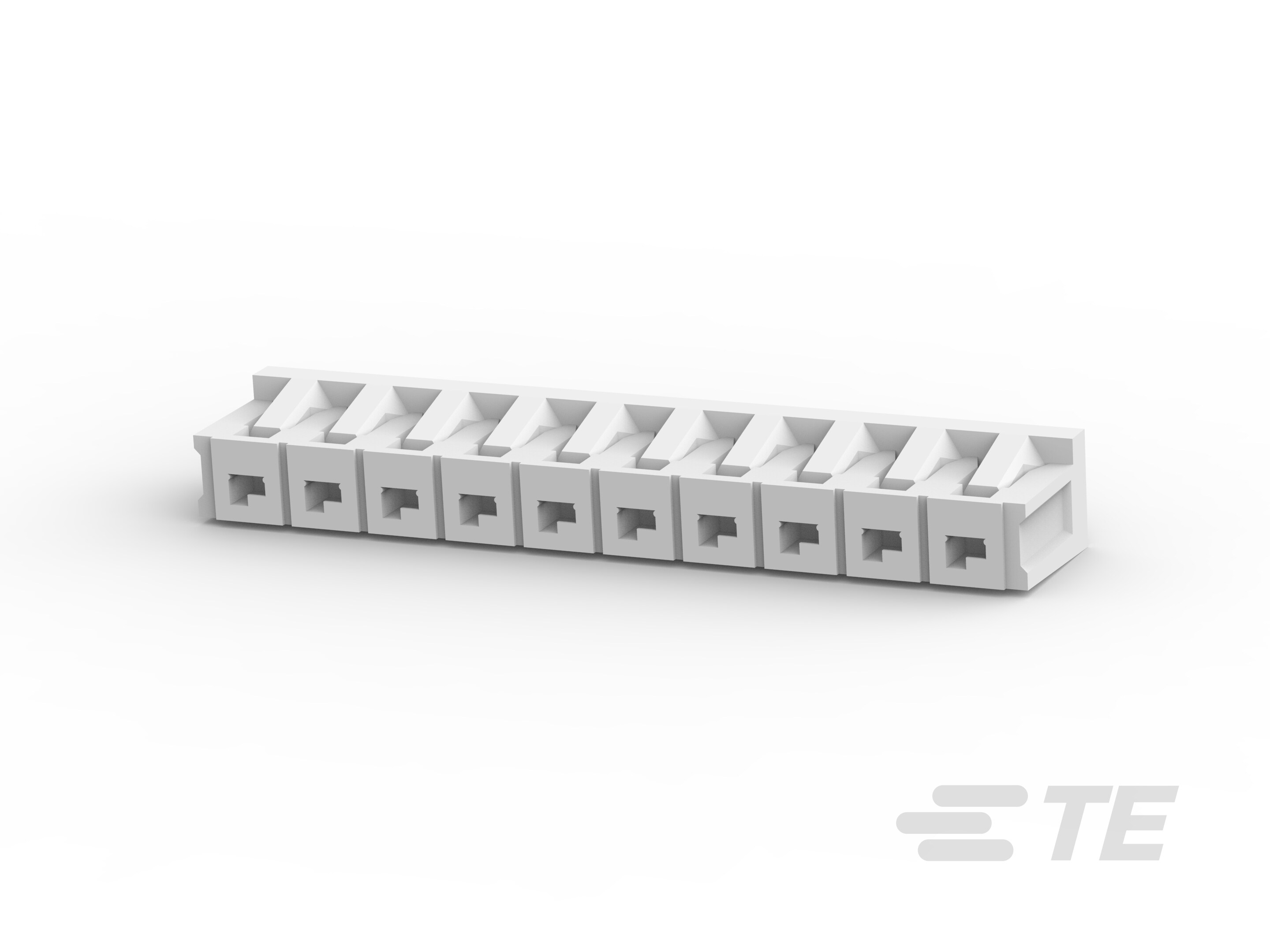

10P 2.5MM MINI AMP-IN HDR HSG

More >>

Specifications

AttributeValue
Product Category:
PC Board Pin & Receptacle Connectors PCB Socket Receptacles
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-172520-0
Color:Natural
Gender:Plug
Housing Material:Nylon 6/6
Number of Rows:1
Mount Type:Cable Mount (Free-Hanging)
Termination Method:Crimp
Contact Material:Brass
Pitch:.098 in, 2.5 mm
Voltage:250 V AC, 250 V DC
Contact Type:Pin
Strain Relief:No Strain Relief
Package Quantity:1000
Number of Positions:10
Housing Color:Natural
GPL:392
Packaging:Bag
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Panel Mount:Without
PCB Retention:Without
PCB Thickness (Recommended):1.19 - 1.6 mm, 1.57 mm
Connector Height:.14 in
Sealable:No
Mating Alignment:Without
GPL Description:Appliances
Connector and Contact Terminate To:Printed Circuit Board
Product Code:1308
Wire Size:.05 - .15 mm², .12 - .35 mm², 26 - 22 AWG, 30 - 22 AWG
Contact Layout:Inline
Connector Length:1.02 in, 26 mm
Connector System:Wire to Board
Connector Product Type:Connector
Mating Retention:Without
Housing Configuration:Both Ends Closed
Material Flammability Standard:UL 94V-0
Part Aliases:1-172520-0
SKU:AMP1-172520-0

Detailed Description

Enhance your connectivity with our Cable Mount Pin Connector, a versatile solution for power and signal applications. Designed for easy installation with a crimp termination method, this connector features a durable Nylon 6/6 housing in a natural color, meeting UL 94V-0 flammability standards. With ten positions and a pitch of 2.5mm, it accommodates a wide range of wire sizes from 26 to 22 AWG. Operating flawlessly in temperatures ranging from -40 to 105°C, it offers reliable performance in various environments. Ideal for appliances and printed circuit board applications, this connector ensures secure and efficient wire-to-board connections.ROHS compliant. Each package contains 1000 units, making it perfect for large-scale projects. Upgrade your connectivity with this essential component.
