1-172520-1

AMP1-172520-1
Heilind Number:AMP1-172520-1
Manufacturer:TE Connectivity
Manufacturer Number:1-172520-1
Datasheet:Drawing
ECAD Model:
3D Model

Description:

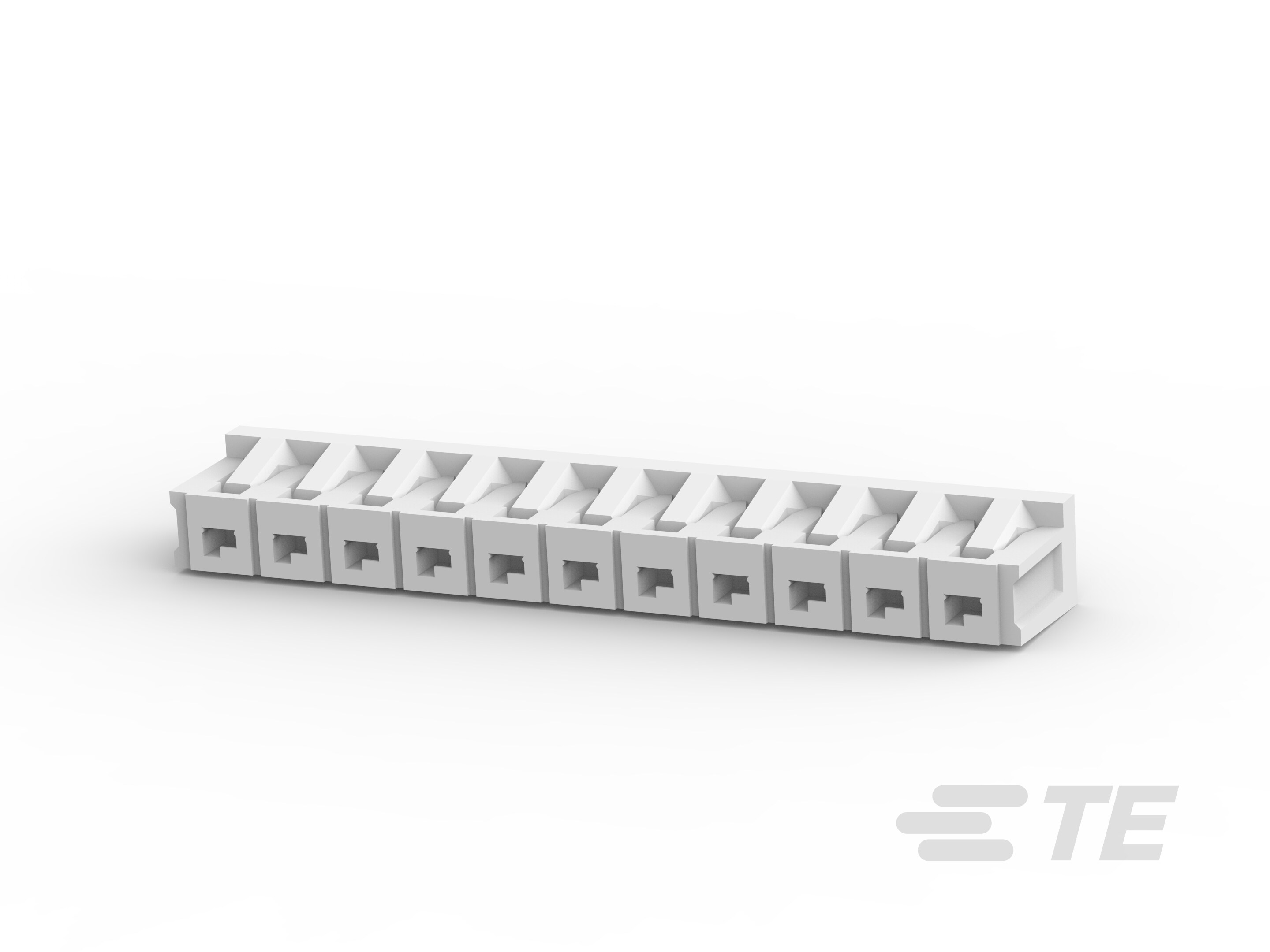

LOW PRO AMPIN 11P

More >>

Specifications

AttributeValue
Product Category:
Connectors PCB Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-172520-1
Housing Material:Nylon GF
Number of Rows:1
Mount Type:Board Mount
Pitch:.098 in, 2.5 mm
Voltage:250 V AC, 250 V DC
Contact Type:Pin
Package Quantity:1000
Number of Positions:11
Housing Color:Natural
Mount Orientation:Vertical
GPL:392
Profile:Low
Packaging:Bag
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Signal
Panel Mount:Without
PCB Retention:Without
PCB Contact Termination Area Plating:Pre-Tin
PCB Thickness (Recommended):.047 - .063 in, 1.19 - 1.6 mm
Connector Height:.14 in, 5 mm
Sealable:No
GPL Description:Appliances
Connector and Contact Terminate To:Printed Circuit Board
Product Code:1308
Contact Layout:Inline
Connector Length:1.32 in, 33.5 mm
Connector System:Wire to Board
ECCN:EAR99
Mating Retention:Without
PCB Mount Alignment:Without
Header Type:Shrouded
Connector Assembly Type:PCB Mount Header
Contact Retention:Without
Material Flammability Standard:UL 94V-0
Part Aliases:1-172520-1
SKU:AMP1-172520-1

Detailed Description

Enhance your electronic connections with our Low Pro AMPIN 11P board mount connector. Designed with durability in mind, this connector features a nylon GF housing in a natural color, meeting UL 94V-0 flammability standards. With a compact profile and vertical mount orientation, it's perfect for signal applications in various electronic devices. Each package contains 1000 connectors, ensuring you have an ample supply for your projects. Operating in a wide temperature range from -40 to 105°C (-40 to 221°F), it offers reliable performance in diverse environments. The connector, with a pitch of 2.5mm (.098 in), accommodates up to 11 pins, suitable for intricate circuitry. Its pre-tin contact plating and PCB mount header assembly type make installation hassle-free. RoHS compliant and suitable for appliances, this connector is a must-have for your PCB connectivity needs.
