1-172890-2

AMP1-172890-2
Heilind Number:AMP1-172890-2
Manufacturer:TE Connectivity
Manufacturer Number:1-172890-2
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

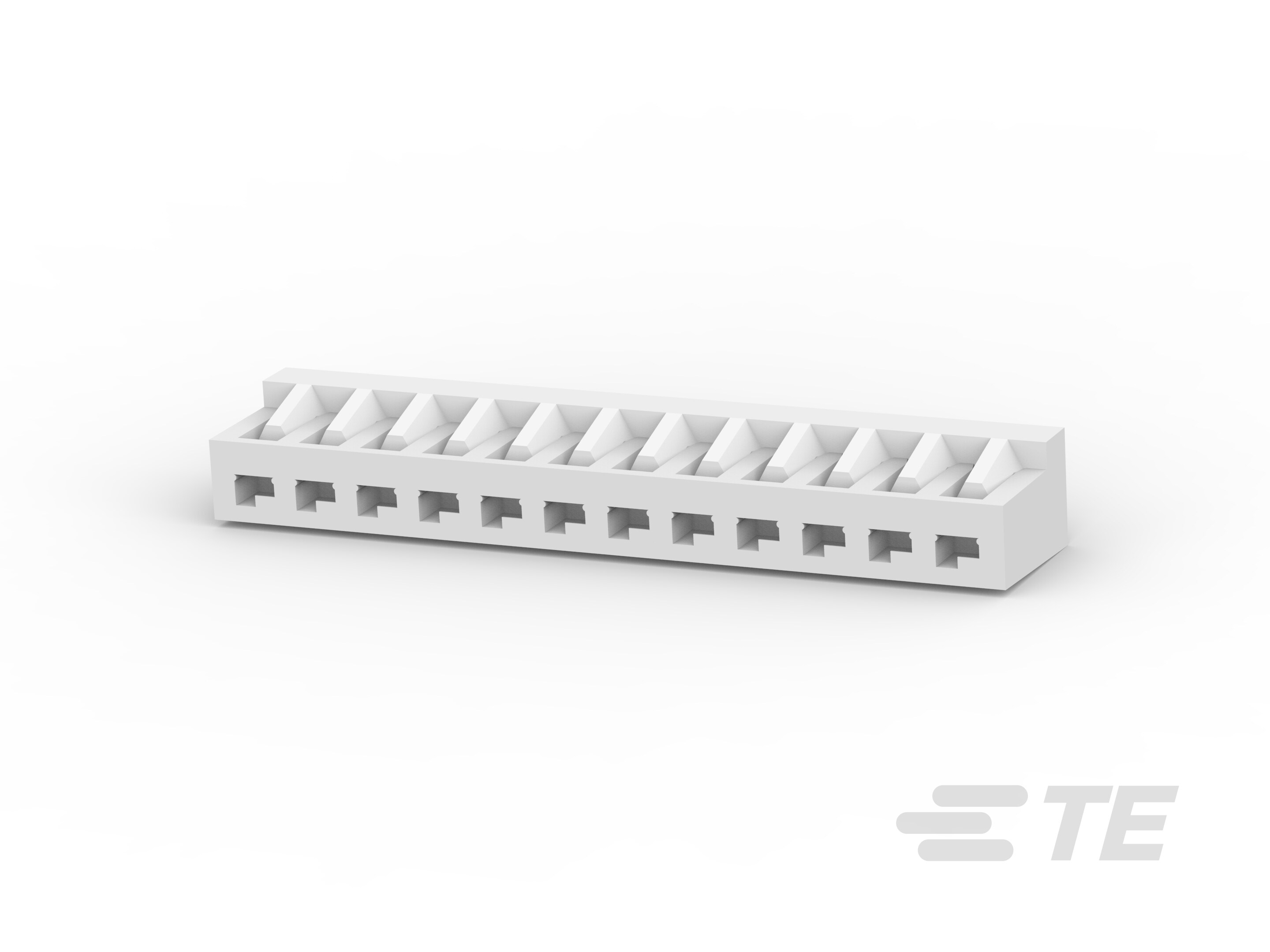

12P 2MM MINI AMP-IN HDR HSG

More >>

Specifications

AttributeValue
Product Category:
PC Board Pin & Receptacle Connectors PCB Socket Receptacles
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-172890-2
Color:Natural
Gender:Plug
Housing Material:Nylon 6/6
Number of Rows:1
Mount Type:Cable Mount (Free-Hanging)
Termination Method:Crimp
Contact Material:Brass
Pitch:.079 in, 2 mm
Voltage:250 V AC, 250 V DC
Contact Type:Pin
Strain Relief:No Strain Relief
Package Quantity:500
Number of Positions:12
Housing Color:Natural
GPL:392
Packaging:Bag
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Panel Mount:Without
PCB Retention:Without
PCB Thickness (Recommended):1.19 - 1.6 mm, 1.57 mm
Connector Height:.14 in
Sealable:No
Mating Alignment:Without
GPL Description:Appliances
Connector and Contact Terminate To:Printed Circuit Board
Product Code:1308
Wire Size:.05 - .15 mm², .12 - .35 mm², 26 - 22 AWG, 30 - 22 AWG
Contact Layout:Inline
Connector Length:24.8 mm, .97 in
Connector System:Wire to Board
Connector Product Type:Connector
Mating Retention:Without
Housing Configuration:Both Ends Closed
Material Flammability Standard:UL 94V-0
Part Aliases:1-172890-2
SKU:AMP1-172890-2

Detailed Description

Enhance your power and signal connections with this high-quality Cable Mount Plug. Designed for convenience and reliability, it features a durable Nylon 6/6 housing in a natural color, meeting UL 94V-0 flammability standards. With 12 positions for seamless connectivity, the brass contacts ensure efficient transmission. The 2mm pitch and crimp termination method make installation a breeze, accommodating wire sizes from 26 to 22 AWG. Operating at temperatures ranging from -40 to 105°C, this connector is suitable for various applications in appliances and beyond. Its compact design, measuring just 24.8mm in length, is ideal for wire-to-board setups. RoHS compliant and packaged in quantities of 500, it's perfect for both professional and DIY projects. Upgrade your PCB connections with this versatile and dependable connector.
