1-178136-2

AMP1-178136-2
Heilind Number:AMP1-178136-2
Manufacturer:TE Connectivity
Manufacturer Number:1-178136-2
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

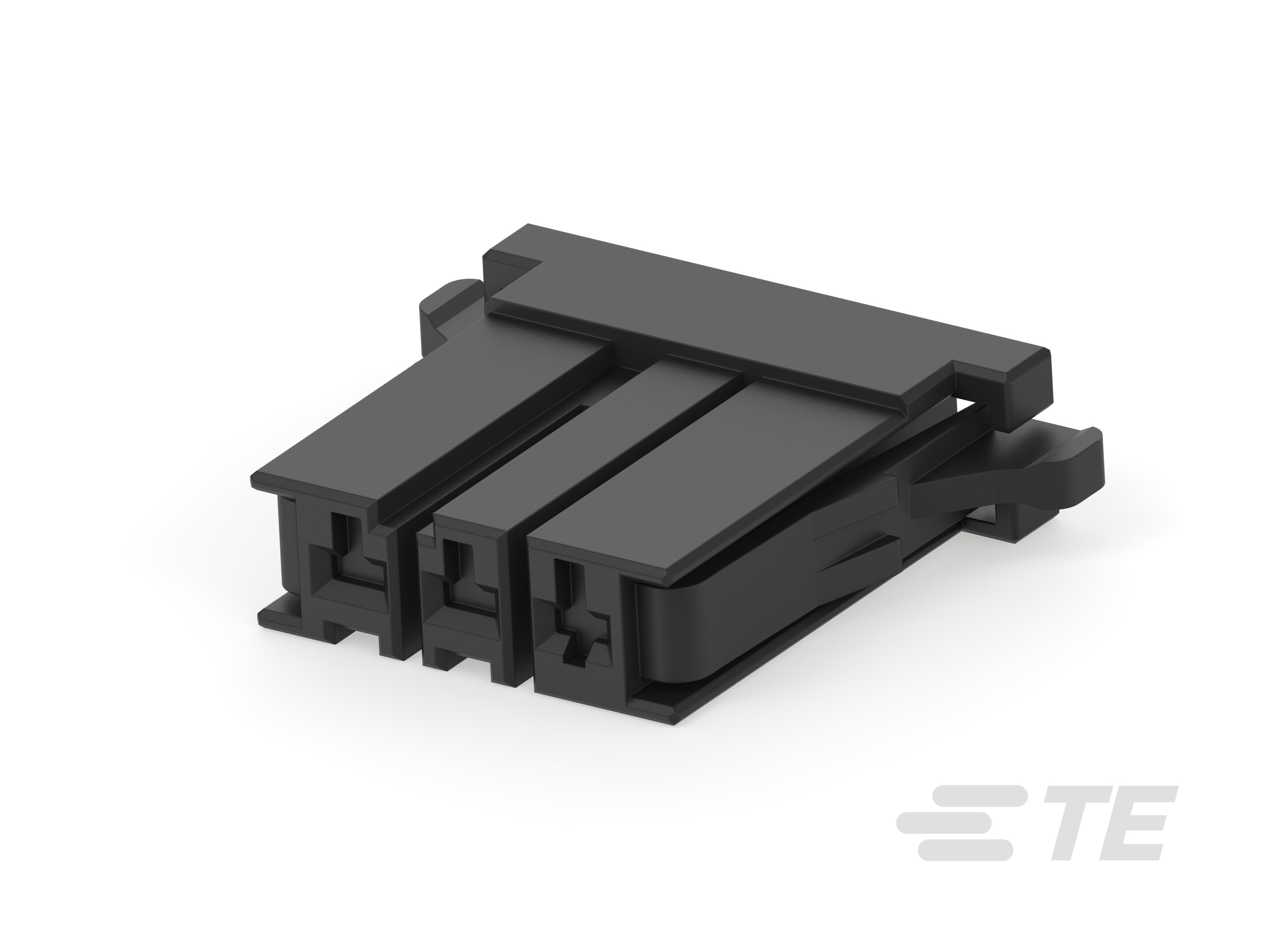

DYNAMIC D3200 HDR V ASSY 3P

More >>

Specifications

AttributeValue
Product Category:
Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-178136-2
Series:Dynamic 3000 Series
Connector Type:Header
Gender:Plug
Housing Material:Polyester - GF
Number of Rows:1
Mount Type:Board Mount
Termination Method:Through Hole - Solder
Contact Plating:Gold
Pitch:.2 in, 5.08 mm
Voltage:600 V AC, 600 V DC
Contact Type:Tab
Strain Relief:No Strain Relief
Keying:X
Package Quantity:20
Contact Amperage:15 A
Number of Positions:3
Housing Color:Black
Mount Orientation:Vertical
GPL:440
Mating Retention Type:Latch
Tail Length:.149 in, 3.8 mm
Packaging:Box & Tube, Tube
Operating Temperature Range:-55 - 105 °C, -67 - 221 °F
Circuit Application:Power & Signal
Shielded:No
PCB Retention:With
PCB Thickness (Recommended):.063 in, 1.6 mm
Connector Height:21.6 mm, .85 in
PCB Retention Type:Retention Leg
Sealable:No
Mating Alignment:With
Mating Alignment Type:Keyed
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:0639
Preloaded:Yes
Contact Layout:Inline
Connector Length:24.16 mm, .951 in
Connector System:Wire to Board
Rated Voltage:250 VAC, 250 VDC
CSA Agency Certification:LR7189
UL Agency Certification:E28476
Connector Product Type:Connector
ECCN:EAR99
Contact Style:Straight
Connector Width:.368 in, 9.35 mm
Mating Retention:With
PCB Mount Alignment:Without
Application Assembly Feature:Without
Header Type:Shrouded
Insertion Force:High
Tail Plating Thickness:2 µm, 78.74 µin
Contact Retention:Without
Glow Wire Rating:Standard Part - Not Glow Wire
VDE Tested:No
Tail Plating:Tin
Multiple Contact Types:Without
Shunts/Shorting Bars:Without
Halogen Free:Yes
Standards Met:UL CSA
Material Flammability Standard:UL 94V-0
Part Aliases:1-178136-2
SKU:AMP1-178136-2

Detailed Description

Enhance your power and signal connections with the Dynamic D3200 HDR V ASSY 3P from the Dynamic 3000 Series. This UL and CSA certified connector features a durable Polyester - GF housing in sleek black, making it suitable for industrial applications. With gold-plated contacts and a 15 A contact amperage, it ensures reliable performance even in demanding environments. The connector offers through-hole solder termination on a 1.6 mm PCB, with a pitch of 5.08 mm for easy installation. Operating temperature range from -55 to 105°C guarantees versatility. Its vertical mount orientation and keying feature provide secure mating alignment, while the Latch mating retention type offers added stability. With a package quantity of 20, it comes in a tube and box packaging for convenience. RoHS compliant and halogen-free, this connector is not only high-performing but also environmentally friendly, meeting the highest industry standards. Perfect for wire-to-board applications, it's a crucial component for your assembly needs.
