1-2118909-1

AMP1_2118909_1
Heilind Number:AMP1-2118909-1
Manufacturer:TE Connectivity
Manufacturer Number:1-2118909-1
Datasheet:Product Specification
ECAD Model:
3D Model

Description:

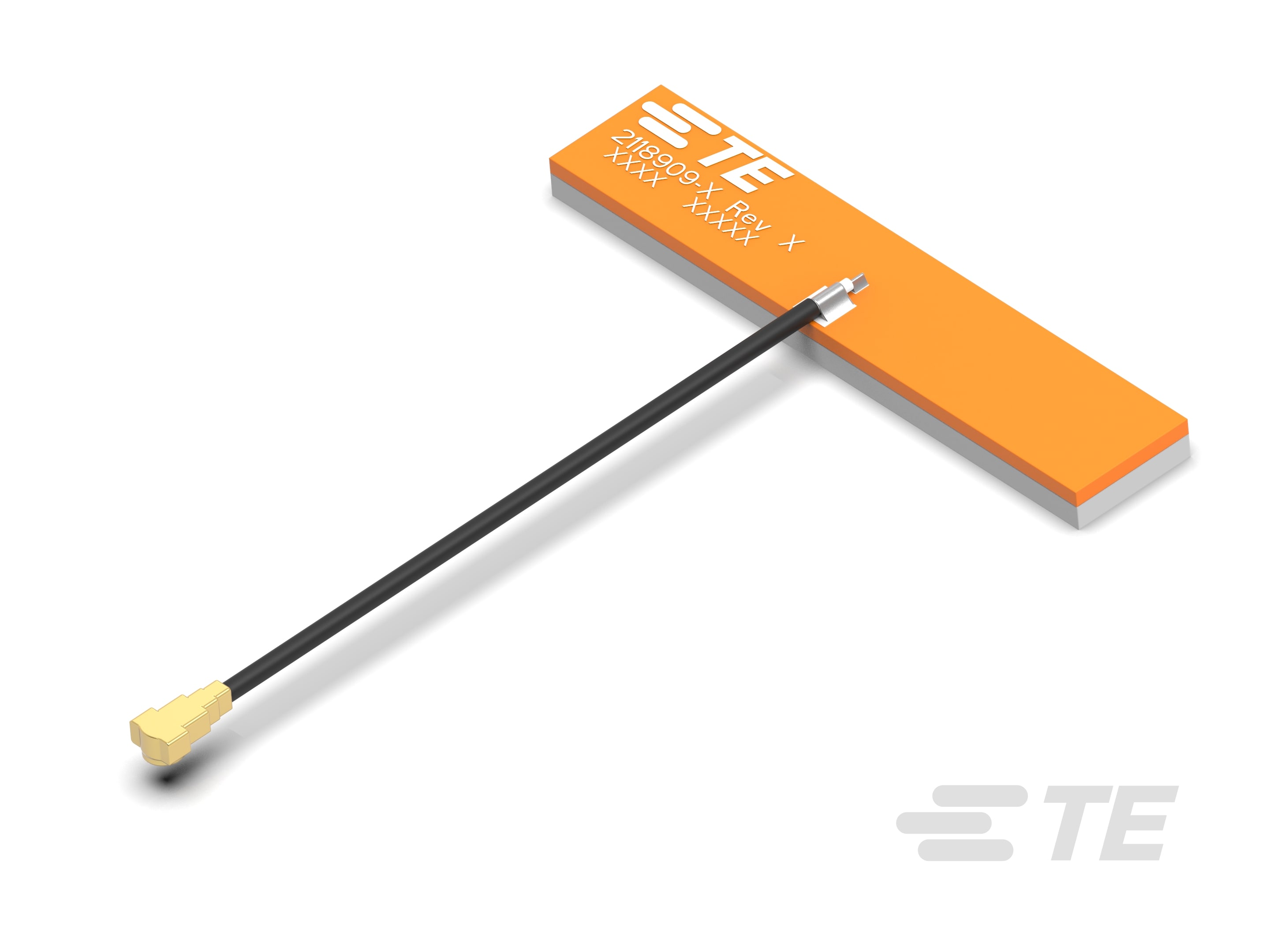

PCB Antenna, Triple Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF / MHF1 / UMCC, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-2118909-1
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Mounting Style:Adhesive
Antenna Type:PCB
Antenna Termination Type:MHF, MHF1, U.FL, UMCC
Application:Bluetooth, Wi-Fi
Band Type:Triple Band
Center Frequency:2505 MHz, 5512.5 MHz, 6525 MHz
Directionality:Omnidirectional
Frequency Range:2340 - 2670 MHz, 5150 - 5875 MHz, 5925 - 7125 MHz
Gain:5 dB
SKU:AMP1-2118909-1

Detailed Description

Stay connected with our Triple Band PCB Antenna, designed for seamless Wi-Fi performance across multiple frequencies. This omnidirectional antenna offers a gain of 5 dB, ensuring reliable signal strength for Bluetooth, ZigBee, and various 802.11 protocols. Its internal/embedded mount with adhesive backing makes installation a breeze, while compatibility with MHF, MHF1, U.FL, and UMCC connectors ensures versatility. With a frequency range spanning 2340 to 7125 MHz and impedance of 50 Ω, this antenna is a perfect choice for a wide range of wireless applications. Trust in its linear polarization and single-port design for optimal performance in any setup.
