1-2118909-2

AMP1_2118909_2
Heilind Number:AMP1-2118909-2
Manufacturer:TE Connectivity
Manufacturer Number:1-2118909-2
Datasheet:3D Model (STP)
ECAD Model:
3D Model

Description:

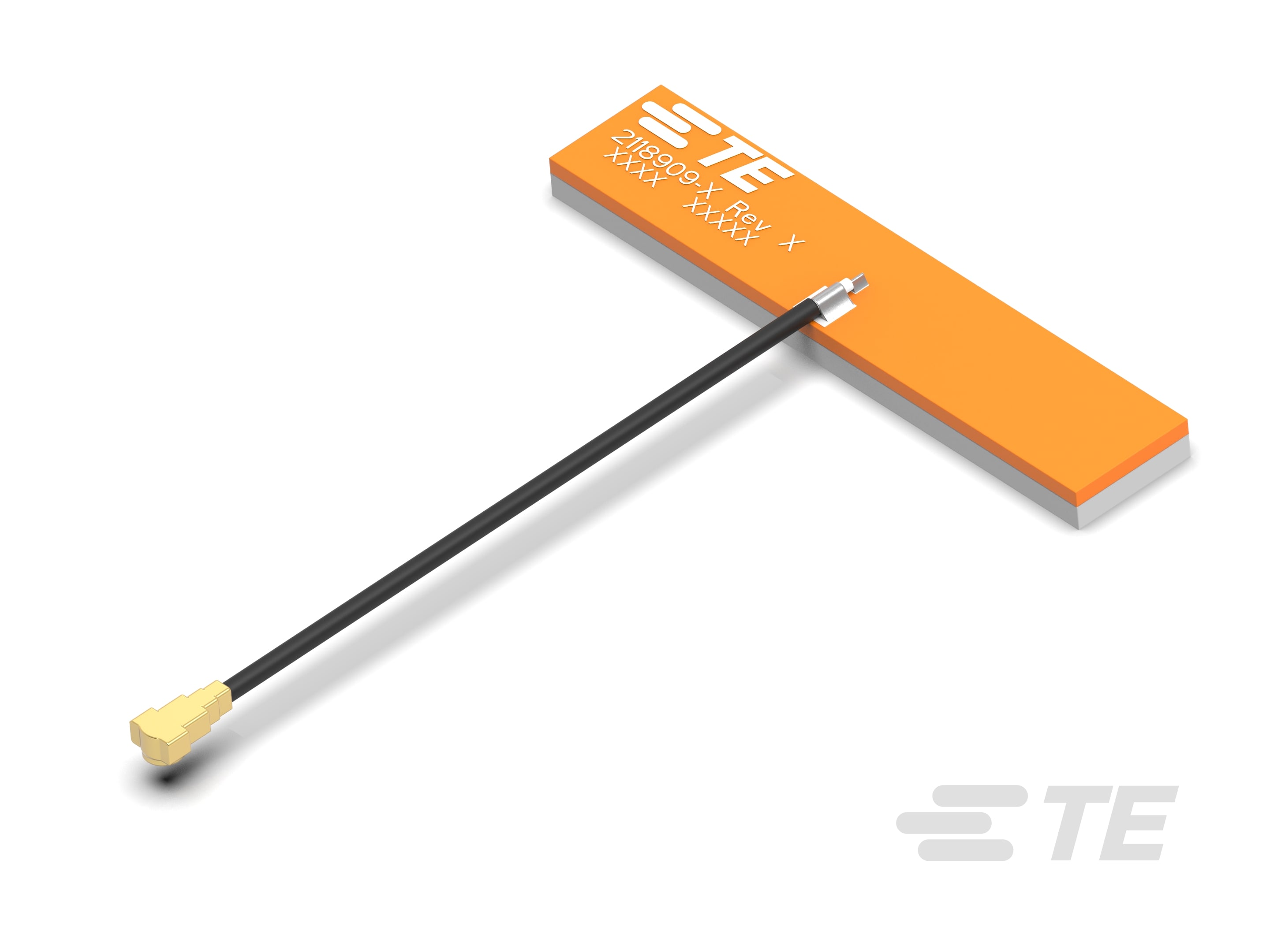

PCB Antenna, Triple Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF / UMCC / U.FL, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-2118909-2
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Mounting Style:Adhesive
Antenna Type:PCB
Antenna Termination Type:MHF, MHF1, U.FL, UMCC
Application:Bluetooth, Wi-Fi
Band Type:Triple Band
Center Frequency:2500 MHz, 5512.5 MHz, 6525 MHz
Directionality:Omnidirectional
Frequency Range:2320 - 2680 MHz, 5150 - 5875 MHz, 5925 - 7125 MHz
Gain:4.2 dB
SKU:AMP1-2118909-2

Detailed Description

Stay connected with our Triple Band PCB Antenna, designed for seamless Wi-Fi performance across multiple frequencies. With an omnidirectional range and adhesive mounting style, it's perfect for internal/embedded use. Supporting MHF, MHF1, U.FL, and UMCC antenna terminations, it offers versatility for various devices. Boasting a gain of 4.2 dB, this antenna ensures strong signal reception in the 2320-2680 MHz, 5150-5875 MHz, and 5925-7125 MHz bands. Whether you're utilizing Bluetooth, ZigBee, or various 802.11 protocols, this antenna with a 50 Ω impedance and linear polarization guarantees reliable connectivity. Ideal for applications requiring a gain between 3 and 6 dBi, it's a crucial component for enhancing wireless performance.
