1-2118909-3

AMP1_2118909_3
Heilind Number:AMP1-2118909-3
Manufacturer:TE Connectivity
Manufacturer Number:1-2118909-3
Datasheet:Product Specification
ECAD Model:
3D Model

Description:

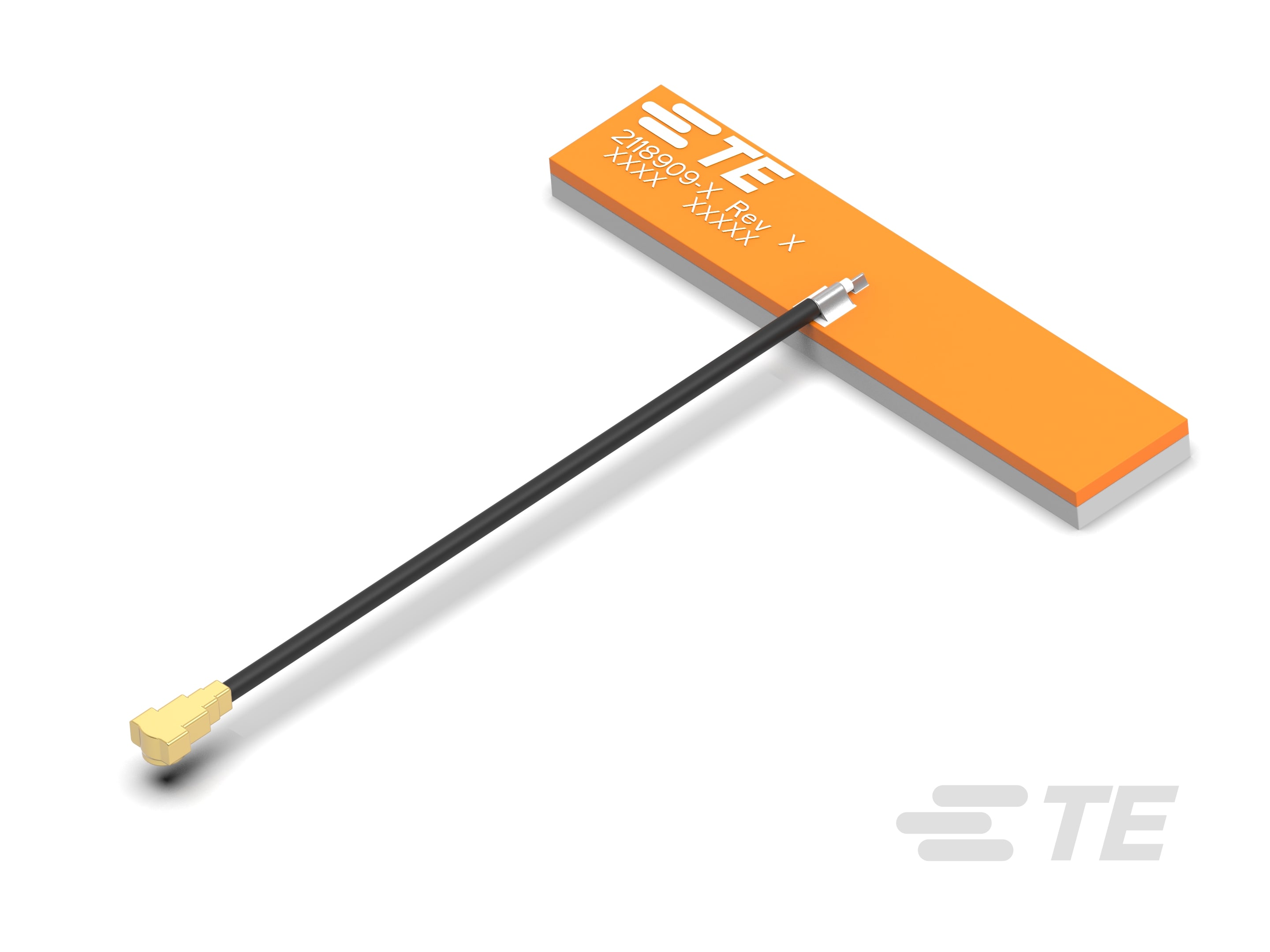

PCB Antenna, Triple Band, Wi-Fi, Internal/Embedded Mount, Adhesive, UMCC / U.FL / MHF1, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-2118909-3
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Mounting Style:Adhesive
Antenna Type:PCB
Antenna Termination Type:MHF, MHF1, U.FL, UMCC
Application:Bluetooth, Wi-Fi
Band Type:Triple Band
Center Frequency:2500 MHz, 5512.5 MHz, 6525 MHz
Directionality:Omnidirectional
Frequency Range:2310 - 2690 MHz, 5150 - 5875 MHz, 5925 - 7125 MHz
Gain:4.9 dB
SKU:AMP1-2118909-3

Detailed Description

Achieve seamless connectivity with this RoHS-compliant Triple Band PCB Antenna, designed for optimal performance across a wide frequency range. With an omnidirectional signal reception and a gain of 4.9 dB, it ensures reliable communication in Bluetooth, Wi-Fi, ZigBee, and various other protocols. Featuring a convenient internal/embedded mount with adhesive backing, installation is effortless. Compatible with MHF, MHF1, U.FL, and UMCC connectors, it offers versatile connectivity options. Perfect for applications requiring high-speed wireless communication, this antenna guarantees efficiency and stability with its 50 Ω impedance and linear polarization. An essential component for any wireless setup, it's a must-have for achieving seamless connectivity in diverse environments.
