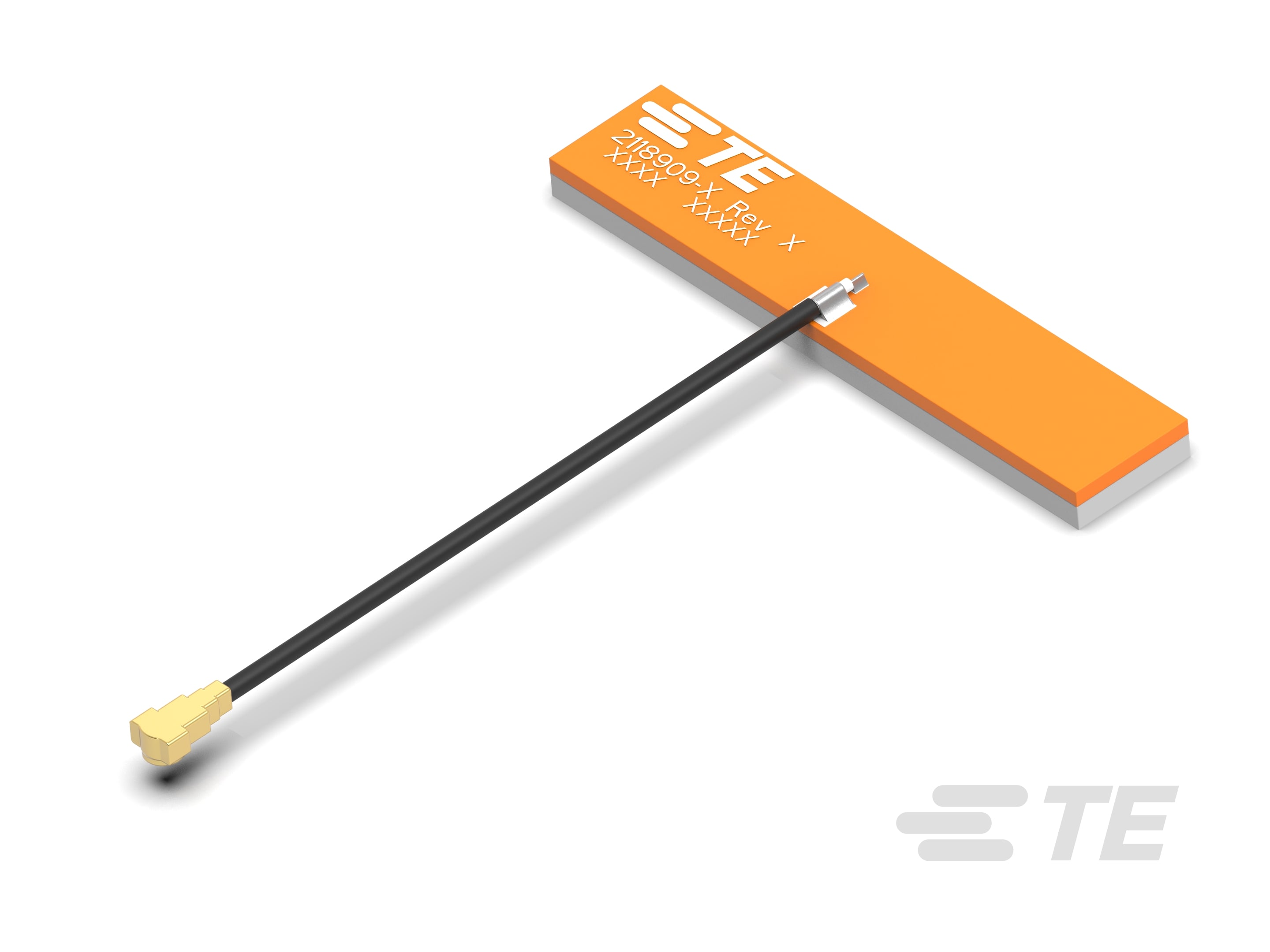

1-2118909-6

AMP1_2118909_6
Heilind Number:AMP1-2118909-6
Manufacturer:TE Connectivity
Manufacturer Number:1-2118909-6
Datasheet:3D Model (PDF)
ECAD Model:
3D Model

Description:

PCB Antenna, Triple Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF4, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-2118909-6
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Mounting Style:Adhesive
VSWR:2:1
Antenna Type:PCB
Antenna Termination Type:MHF4
Application:Bluetooth, Wi-Fi
Band Type:Triple Band
Center Frequency:2495 MHz, 5512.5 MHz, 6525 MHz
Directionality:Omnidirectional
Frequency Range:2310 - 2680 MHz, 5150 - 5875 MHz, 5925 - 7125 MHz
Gain:5.9 dB
SKU:AMP1-2118909-6

Detailed Description

Stay connected seamlessly with our Triple Band PCB Antenna, designed for Wi-Fi applications. This internal/embedded mount antenna boasts an adhesive backing for easy installation and features an MHF4 termination. Enjoy reliable omnidirectional coverage with a gain of 5.9 dB, perfect for optimizing signal strength. Operating across three frequency bands (2310-2680 MHz, 5150-5875 MHz, 5925-7125 MHz) at center frequencies of 2495 MHz, 5512.5 MHz, and 6525 MHz, it ensures broad compatibility with ZigBee, Bluetooth, and various 802.11 protocols. With a VSWR of 2:1 and 50 Ω impedance, this antenna guarantees efficient signal transmission. Ideal for Bluetooth and Wi-Fi applications, it caters to a range of communication needs. Upgrade your connectivity with this high-performance antenna.
