1-2157480-4

AMP1-2157480-4
Heilind Number:AMP1-2157480-4
Manufacturer:TE Connectivity
Manufacturer Number:1-2157480-4
Datasheet:Drawing
ECAD Model:
3D Model

Description:

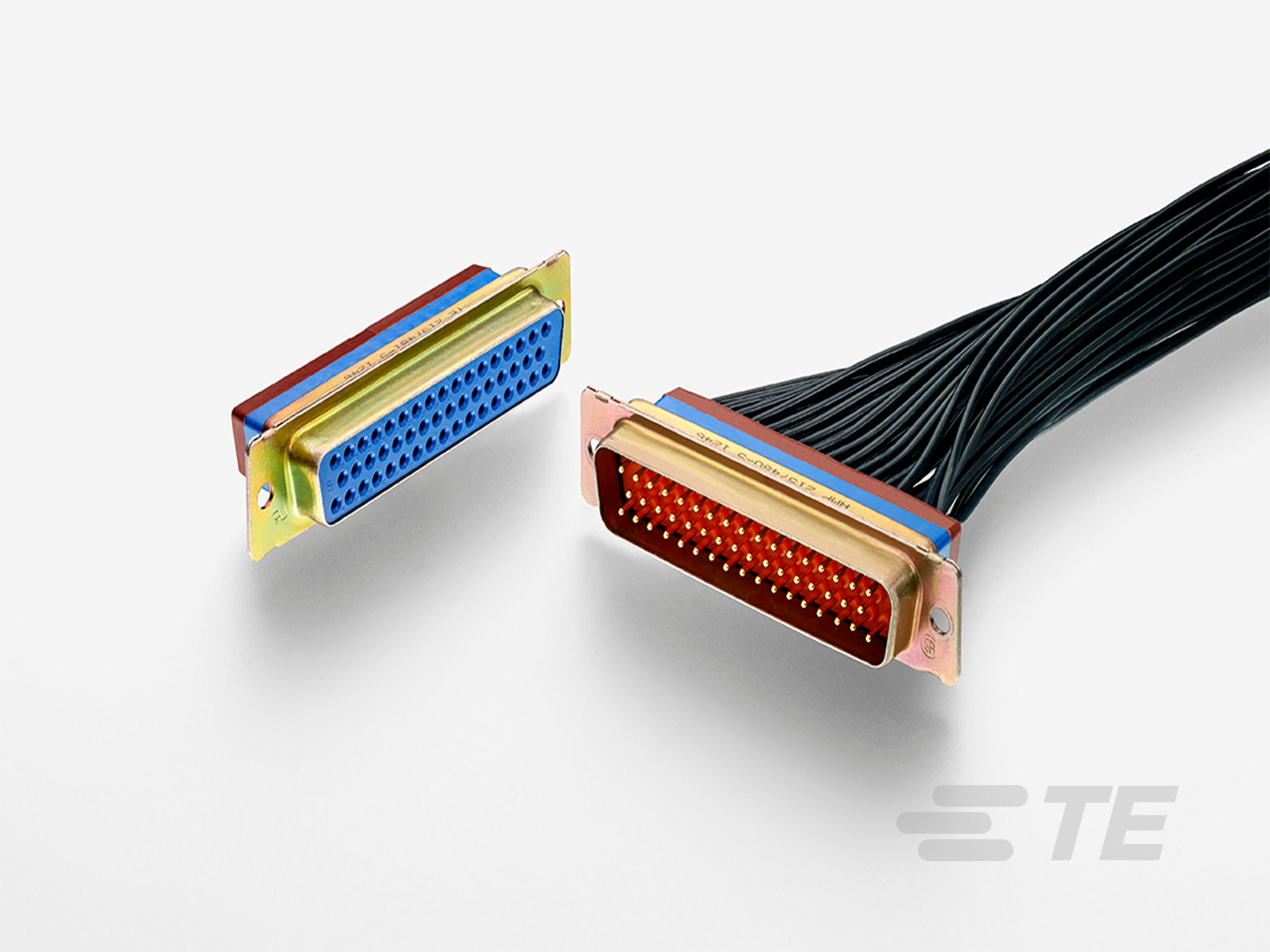

AMPLIMITE IP67,SZ4, 109, 37 POS,IFS,PLUG

More >>

Specifications

AttributeValue
Product Category:
D-Sub & D-Ribbon Connectors & Accessories D-Sub Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-2157480-4
Amperage:7.5 A
Gender:Plug
Contact Material:Copper Alloy
Pitch:.109 in, 2.77 mm
Shell Size:4
Contact Size:20
Contact Type:Pin
Shell Plating:Cadmium
Number of Positions:37
GPL:243
Shell Material:Steel
Packaging:Individual
Operating Temperature Range:-22 - 257 °F, -50 - 125 °C
Circuit Application:Signal
Contact Mating Area Plating:Gold over Nickel
Contact Mating Area Plating Thickness:1.3 µm, 50 - 100 µin
Sealable:Yes
GPL Description:Aerospace Defense & Marine
Connector and Contact Terminate To:Wire & Cable
Product Code:X536
Preloaded:No
Connector System:Cable-to-Cable
Connector Product Type:Connector
Contact Style:Crimp Snap-In
Non Magnetic:Yes
Retainer Clip Material:Stainless Steel
Shell Plating Finish:Yellow Chromate
Front Shell Material:Steel
Front Shell Plating Finish:Yellow Chromate
Front Shell Plating:Cadmium
Rear Shell Material:Steel
Rear Shell Plating:Cadmium
Power Signal Coax Combination:No
Insert Arrangement:MS18276-1
NASA Qualification:No
Ultra-Lite Connector:No
Blind Mate:No
Part Aliases:1-2157480-4
SKU:AMP1-2157480-4

Detailed Description

Experience high-performance connectivity with our AMPLIMITE IP67 Connector, featuring a durable Steel shell and Cadmium plating for robust protection in harsh environments. This Plug connector, with 37 gold-plated Copper Alloy pins, ensures reliable signal transmission with a rated amperage of 7.5 A. Designed for aerospace, defense, and marine applications, it operates seamlessly within a wide temperature range from -50 to 125 °C (-22 to 257 °F). Its Crimp Snap-In contact style and wire & cable termination offer easy installation, while the sealable design guarantees secure connections. With non-magnetic properties and compliance with RoHS standards, this connector is ideal for various signal transmission needs in demanding settings.
