1-2221760-1

AMP1-2221760-1
Heilind Number:AMP1-2221760-1
Manufacturer:TE Connectivity
Manufacturer Number:1-2221760-1
Datasheet:Drawing
ECAD Model:
3D Model

Description:

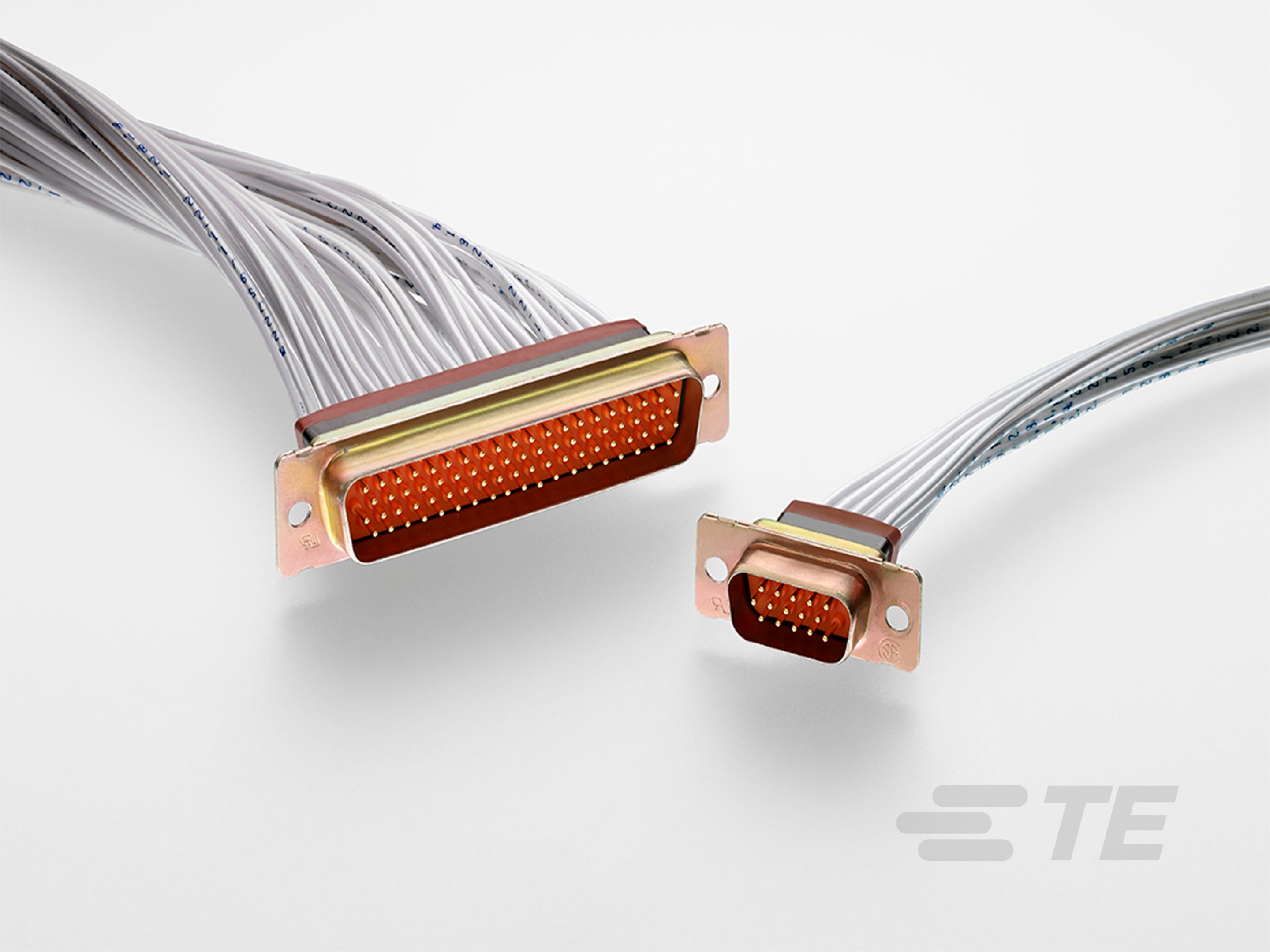

AMPLIMITE IP67, SZ1, 90, 15 POS, RCPT

More >>

Specifications

AttributeValue
Product Category:
D-Sub & D-Ribbon Connectors & Accessories D-Sub Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-2221760-1
Amperage:5 A
Gender:Receptacle
Mount Type:Panel
Contact Material:Copper Alloy
Pitch:.09 in, 2.29 mm
Shell Size:1
Contact Size:22
Contact Type:Socket
Shell Plating:Cadmium
Mount Hole Diameter:.115 - .125 in (2.92 - 3.18 mm), 2.92 - 3.18 mm (0.115 - 0.125 in)
Number of Positions:15
GPL:243
Shell Material:Steel
Packaging:Individual
Operating Temperature Range:-22 - 257 °F, -50 - 125 °C
Circuit Application:Signal
Contact Mating Area Plating:Gold over Nickel
Contact Mating Area Plating Thickness:1.3 µm, 50 - 100 µin
Sealable:Yes
GPL Description:Aerospace Defense & Marine
Connector and Contact Terminate To:Wire & Cable
Product Code:X536
Preloaded:No
Connector System:Cable-to-Cable
Connector Product Type:Connector
Contact Style:Crimp Snap-In
Non Magnetic:Yes
Retainer Clip Material:Stainless Steel
Shell Plating Finish:Yellow Chromate
Front Shell Material:Steel
Front Shell Plating Finish:Yellow Chromate
Front Shell Plating:Cadmium
Rear Shell Material:Steel
Rear Shell Plating:Cadmium
Power Signal Coax Combination:No
Insert Arrangement:MS18273-2
NASA Qualification:No
Ultra-Lite Connector:No
Blind Mate:No
Part Aliases:1-2221760-1
SKU:AMP1-2221760-1

Detailed Description

Experience rugged connectivity with our AMPLIMITE IP67 receptacle, designed for SZ1 applications. With 15 positions for versatile signal transmission, this connector ensures reliable performance in harsh environments. Featuring a panel mount, it is easy to install on various surfaces. The contact material, made of Copper Alloy, guarantees efficient conductivity with an amperage of 5A. Its cadmium shell plating and steel construction provide durability, while the gold over nickel contact mating area plating offers corrosion resistance. This connector is sealable and operates smoothly in temperatures ranging from -50 to 125°C, making it ideal for aerospace, defense, and marine applications. RoHS compliant and featuring non-magnetic properties, it meets high industry standards for quality and performance. Whether for cable-to-cable connections or other applications, this connector is a reliable choice for demanding environments.
