1-2221860-3

AMP1-2221860-3
Heilind Number:AMP1-2221860-3
Manufacturer:TE Connectivity
Manufacturer Number:1-2221860-3
Datasheet:Drawing
ECAD Model:
3D Model

Description:

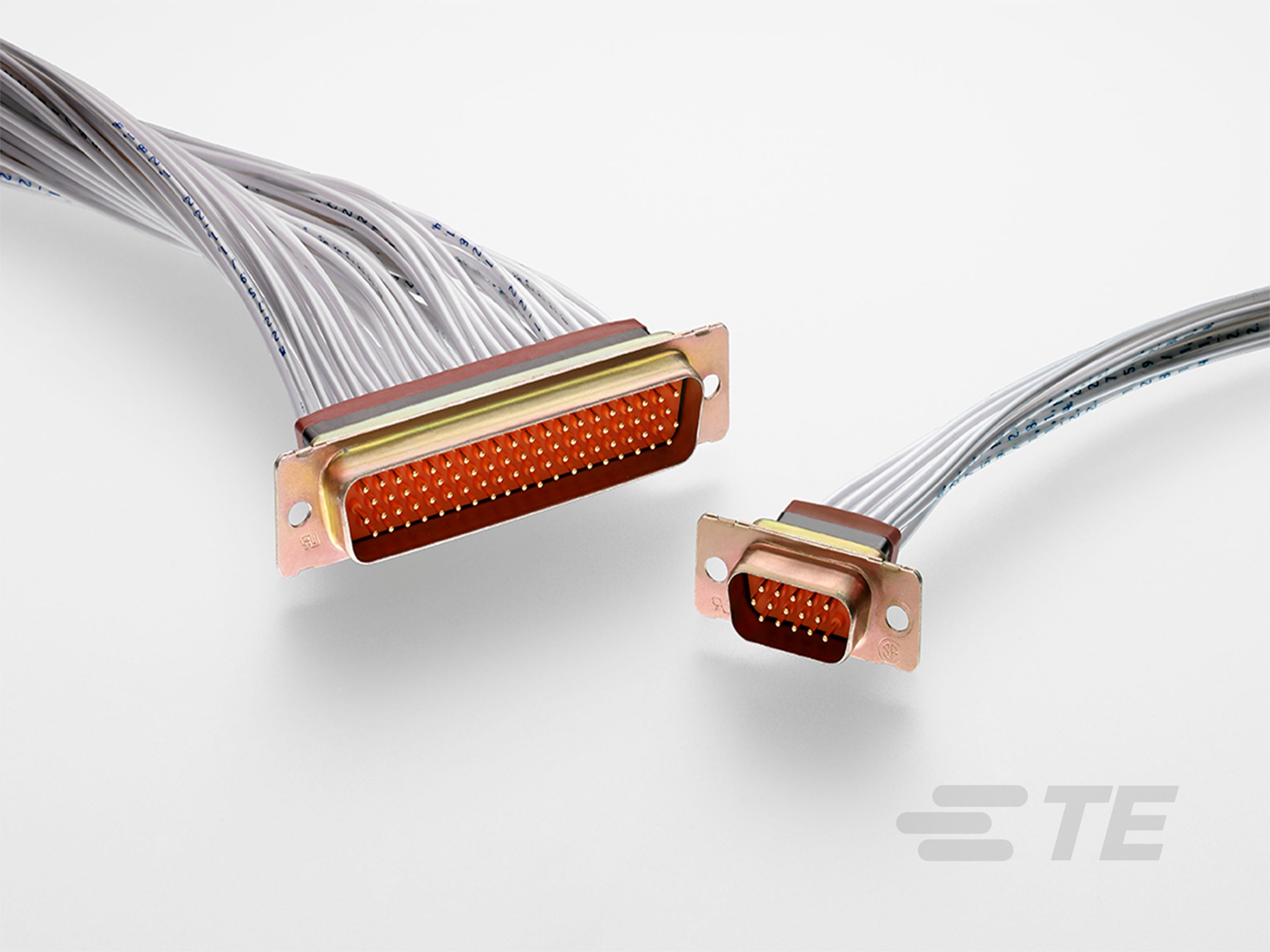

AMPLIMITE IP67,SZ3, 90, 44 POS,IFS,PLUG

More >>

Specifications

AttributeValue
Product Category:
D-Sub & D-Ribbon Connectors & Accessories D-Sub Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-2221860-3
Amperage:5 A
Gender:Plug
Mount Type:Panel
Contact Material:Copper Alloy
Pitch:.09 in, 2.29 mm
Shell Size:3
Contact Size:22
Contact Type:Pin
Shell Plating:Cadmium
Mount Hole Diameter:.115 - .125 in (2.92 - 3.18 mm), 3.05 mm (0.12 in)
Number of Positions:44
GPL:243
Shell Material:Steel
Packaging:Individual
Operating Temperature Range:-22 - 257 °F, -50 - 125 °C
Circuit Application:Signal
Contact Mating Area Plating:Gold over Nickel
Contact Mating Area Plating Thickness:1.3 µm, 50 - 100 µin
Sealable:Yes
GPL Description:Aerospace Defense & Marine
Connector and Contact Terminate To:Wire & Cable
Product Code:X536
Preloaded:No
Connector System:Cable-to-Cable
Connector Product Type:Connector
Contact Style:Pin
Non Magnetic:Yes
Retainer Clip Material:Stainless Steel
Shell Plating Finish:Yellow Chromate
Front Shell Material:Steel
Front Shell Plating Finish:Yellow Chromate
Front Shell Plating:Cadmium
Rear Shell Material:Steel
Rear Shell Plating:Cadmium
Power Signal Coax Combination:No
Insert Arrangement:MS18275-2
NASA Qualification:No
Ultra-Lite Connector:No
Blind Mate:No
Part Aliases:1-2221860-3
SKU:AMP1-2221860-3

Detailed Description

Introducing the AMPLIMITE IP67 Connector, a rugged and reliable solution for your connectivity needs. This SZ3 plug features 44 gold-plated pin contacts, suitable for signal applications in harsh environments. With a shell made of steel and a sealable design, it offers enhanced durability and protection, meeting aerospace, defense, and marine standards. Operating in wide temperature ranges (-50 to 125°C), it ensures performance in extreme conditions. Featuring a panel mount configuration with a pitch of 2.29mm, it's ideal for cable-to-cable connections. The non-magnetic construction and yellow chromate plating make it suitable for various applications. Trust in the AMPLIMITE IP67 Connector for secure and efficient signal transmission.
