| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Aero-Electric Connector | Conesys |
| Manufacturer Part Number: | Aero-Electric Connector | Conesys MS3454LS20-15PW |
| Impedance: | 50 Ω |
| Polarization: | Linear |
| Protocol: | 802.11b, 802.11g, Bluetooth, ZigBee |
| Mounting Style: | Surface Mount |
| VSWR: | 2:1 |
| Antenna Type: | Chip, PCB |
| Application: | Bluetooth, Wi-Fi |
| Band Type: | Single Band |
| Center Frequency: | 2441.75 MHz |
| Directionality: | Omnidirectional |
| Frequency Range: | 2400 - 2483.5 MHz |
| Gain: | 2 dB |
| SKU: | AMP1513431-2 |
MS3454LS20-15PW
| Heilind Number: | AMP1513431-2 |
| Manufacturer: | Aero-Electric Connector | Conesys |
| Manufacturer Number: | MS3454LS20-15PW |
| Datasheet: | 2D Model (DXF) |
| ECAD Model: | |
Description:

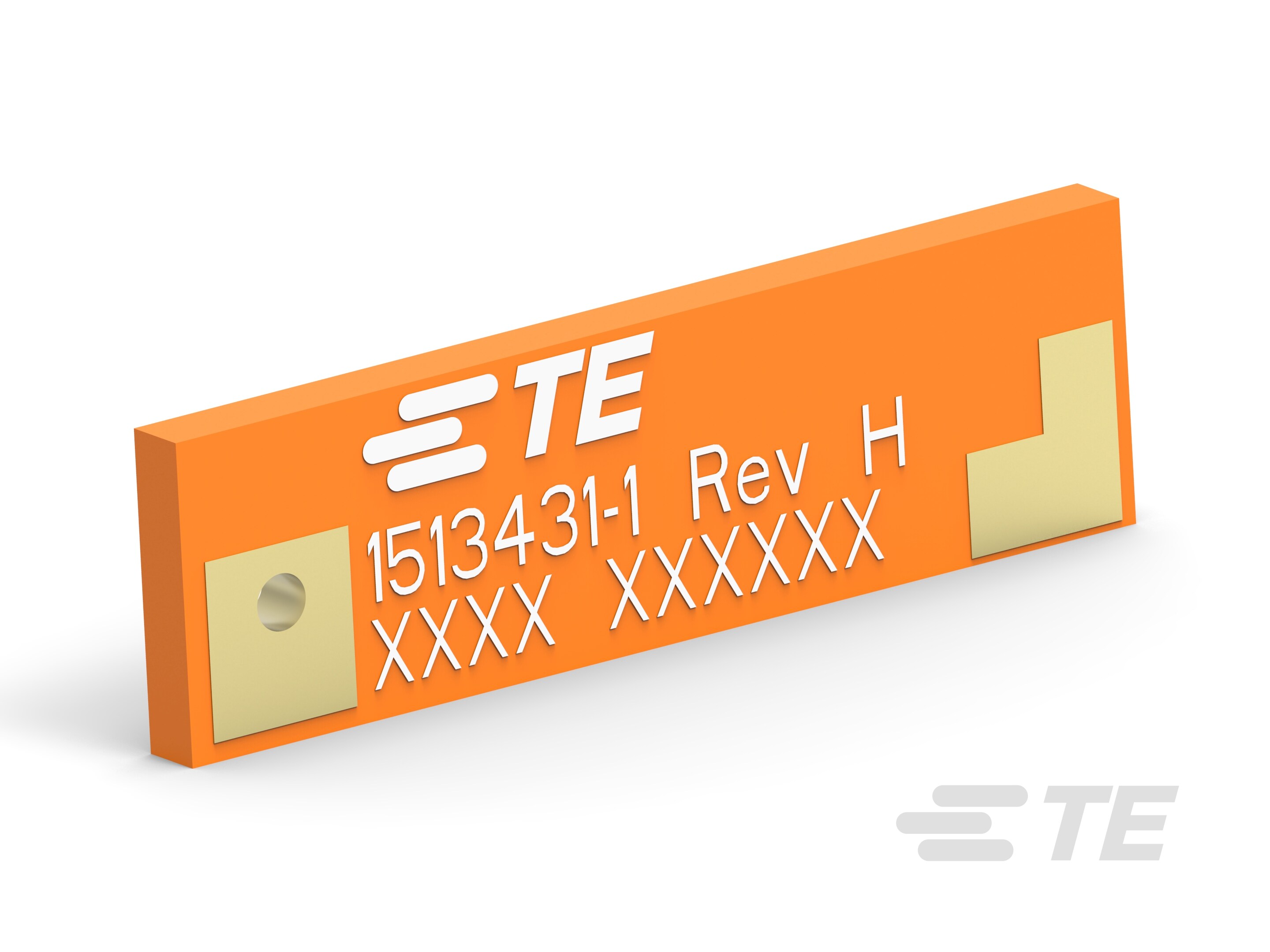

Chip Antenna, Single Band, Bluetooth / Wi-Fi, Internal/Embedded Mount, Surface Mount, Omnidirectional, Single Port, Gain 0 < 3 dBi
More >>Specifications
Detailed Description
This RoHS-compliant chip antenna boasts a 2 dB gain, ideal for enhancing Bluetooth and Wi-Fi connectivity. Designed for internal/embedded mounting on PCBs, it offers surface mount convenience and omnidirectional coverage. Operating within the 2400-2483.5 MHz frequency range with a center frequency of 2441.75 MHz, it's a versatile choice for ZigBee, Bluetooth, 802.11b, and 802.11g protocols. With a VSWR of 2:1, 50 Ω impedance, and linear polarization, it ensures reliable performance in various wireless applications.
For Use With
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
