1513472-8

AMP1513472_8
Heilind Number:AMP1513472-8
Manufacturer:TE Connectivity
Manufacturer Number:1513472-8
Datasheet:2D Model (DXF)
ECAD Model:
3D Model

Description:

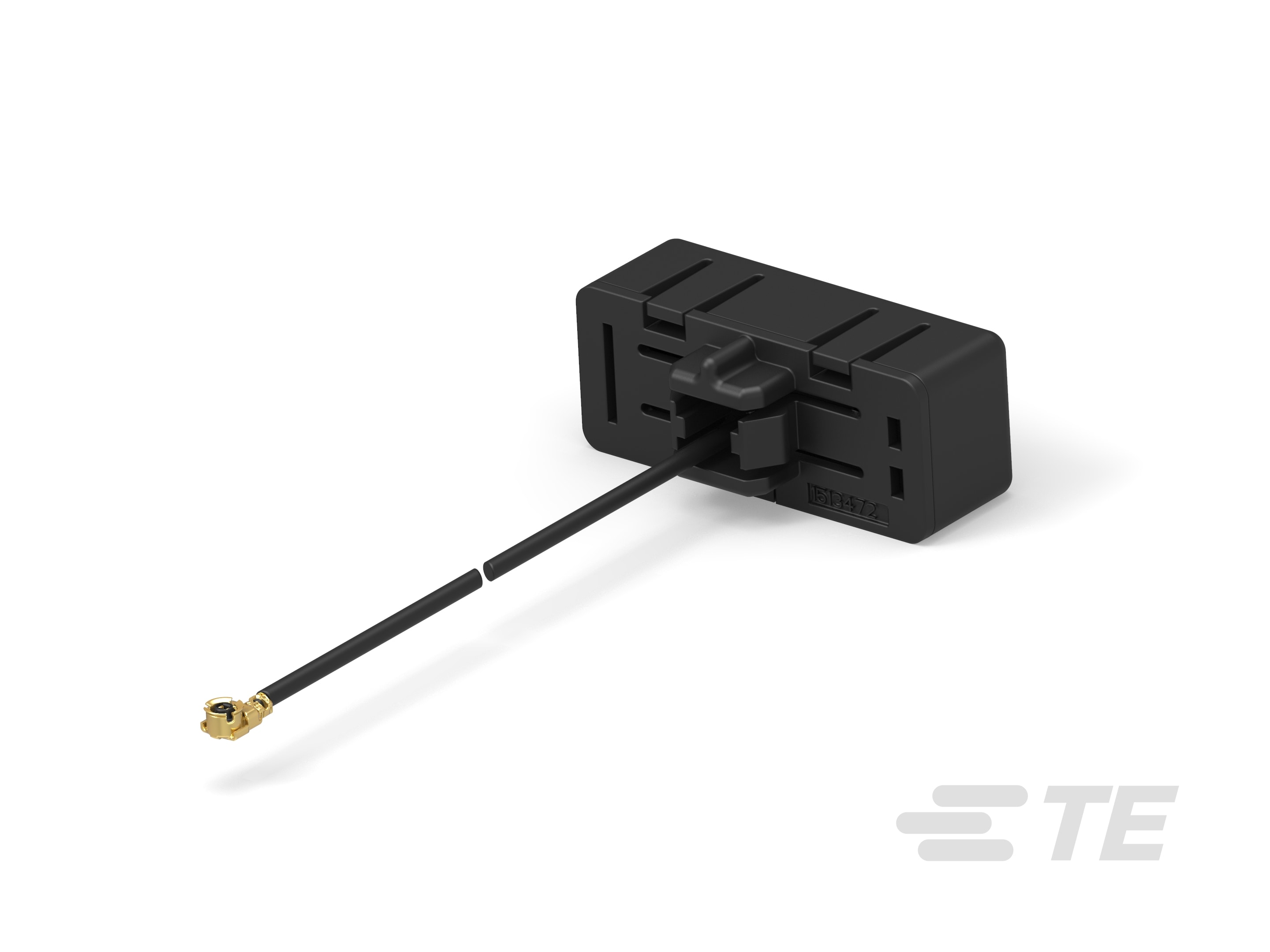

Stamped Metal Antenna, Dual Band, Bluetooth / Wi-Fi, External Mount, Snap-In, MHF / MHF1 / U.FL, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1513472-8
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Mounting Style:Snap In
VSWR:3:1
Antenna Type:Stamped Metal
Antenna Termination Type:MHF, MHF1, U.FL, UMCC
Application:Bluetooth, Wi-Fi
Band Type:Dual Band
Center Frequency:2585 MHz, 5850 MHz
Directionality:Omnidirectional
Frequency Range:2550 - 2620 MHz, 5500 - 6200 MHz
Gain:3 dB
SKU:AMP1513472-8

Detailed Description

Ensure seamless connectivity with our dual-band stamped metal antenna, designed for Bluetooth and Wi-Fi applications. This omnidirectional antenna boasts a 3dB gain, making it ideal for external mounting. With compatibility for MHF, MHF1, U.FL, and UMCC antenna terminations, it offers versatility in installation. Operating at frequencies ranging from 2550 to 2620 MHz and 5500 to 6200 MHz, it covers a wide spectrum for enhanced signal strength. Whether you're utilizing ZigBee, Bluetooth, or various 802.11 protocols, this antenna guarantees optimal performance with its 50 Ω impedance and linear polarization. Perfect for a range of applications, it's a must-have component for reliable wireless communication.
