1586040-2

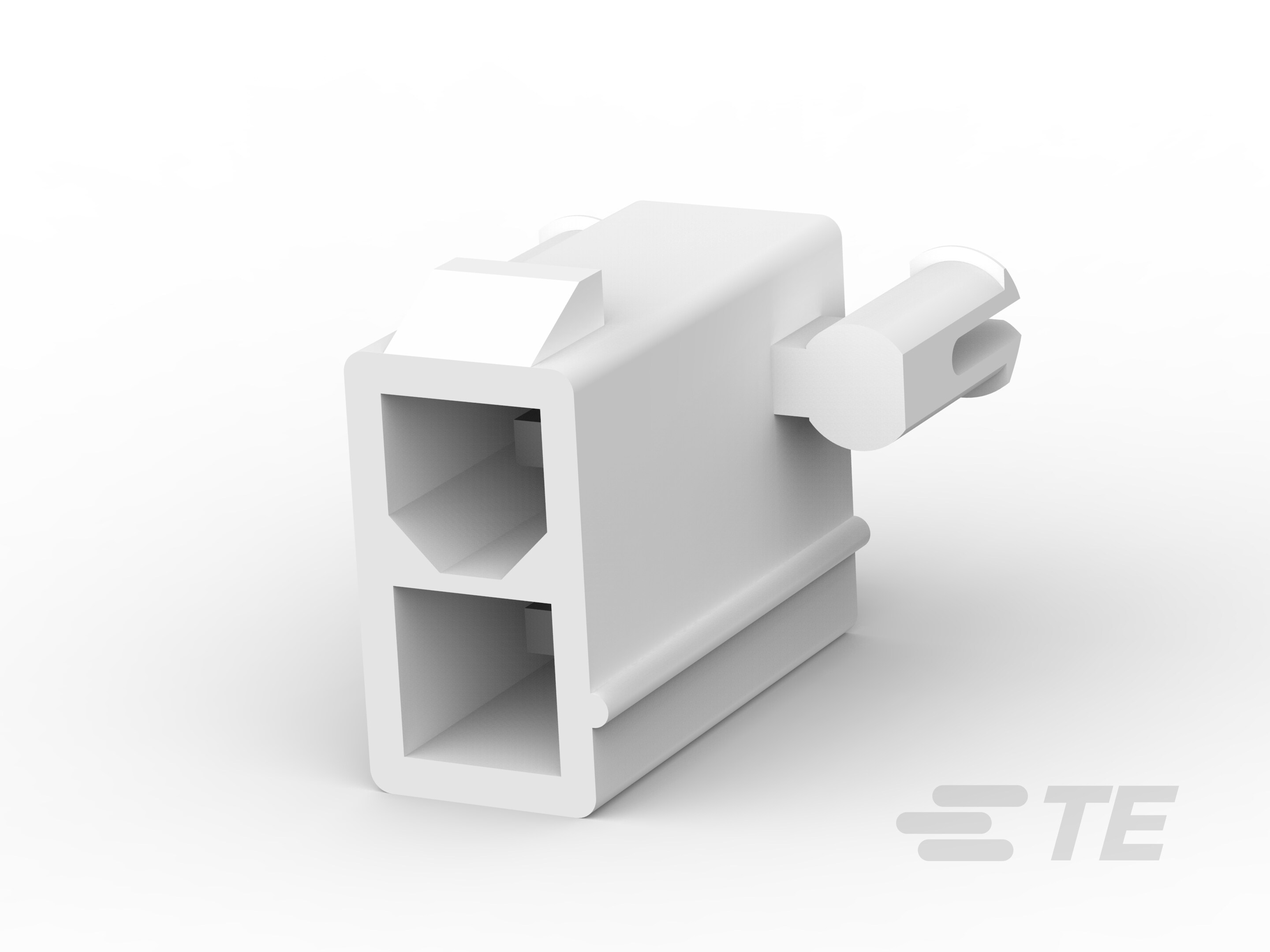

AMP1586040-2
Heilind Number:AMP1586040-2
Manufacturer:TE Connectivity
Manufacturer Number:1586040-2
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

2P VAL-U-LOK VRT HDR W/P V0

More >>

Specifications

AttributeValue
Product Category:
Connectors Power Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1586040-2
Housing Material:Nylon
Number of Rows:2
Mount Type:Board Mount
Termination Method:Through Hole - Solder
Pitch:.165 in, 4.2 mm
Voltage:600 V AC
Contact Type:Pin
Row Spacing:.165 in, 4.2 mm
Package Quantity:690
Contact Amperage:9 A
Number of Positions:2
Housing Color:Natural
Mount Orientation:Vertical
GPL:G31
Mating Retention Type:Latch
Packaging:Box & Tray, Tray
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power
Contact Mating Area Plating:Tin
Contact Mating Area Plating Thickness:2.03 µm, 80 µin
PCB Retention:With
PCB Thickness (Recommended):.063 in, 1.6 mm
Connector Height:12.8 mm, .504 in
PCB Retention Type:Boardlock
Sealable:No
Mating Alignment:With
Mating Alignment Type:Keyed
GPL Description:Appliances
Connector and Contact Terminate To:Printed Circuit Board
Product Code:K926
Number of Power Positions:2
Contact Layout:Inline
Connector Length:.213 in, 5.4 mm
Connector System:Wire to Board
CSA Agency Certification:208567
Contact Termination Plating:Tin
Connector Product Type:Header
ECCN:EAR99
Connector Width:.386 in, 9.8 mm
Mating Retention:With
PCB Mount Alignment:With
Termination Post Tail Length:.138 in, 3.5 mm
Header Type:Shrouded
Accepts Wire Insulation Diameter:.047 - .122 in, 1.2 - 3.1 mm
Contact Retention:Without
Glow Wire Rating:Standard Part - Not Glow Wire
Circuit Identification Feature:With
Connector and Housing Type:Plug
Standards Met:CSA UL
Material Flammability Standard:UL 94V-0
Part Aliases:1586040-2
SKU:AMP1586040-2

Detailed Description

Enhance your power connections with this UL and CSA certified Power Connector, featuring a durable Nylon housing in a natural color. With two rows of pins for secure through-hole solder termination on your circuit board, it ensures reliable performance in demanding environments. The 4.2mm pitch and 600V AC voltage rating make it ideal for high-power applications. Its compact design, with a connector height of 12.8mm, allows for vertical board mounting with ease. With 690 pieces included in a convenient tray packaging, this connector is perfect for bulk assembly in appliances and other power-related systems. RoHS compliant and operating within a wide temperature range of -40 to 105°C, it guarantees safety and performance. Trust in its quality construction for seamless power transmission in your projects.
