MS3454W36-7SZ

AMP2_1513472_5
Heilind Number:AMP2-1513472-5
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Number:MS3454W36-7SZ
Datasheet:2D Model (DXF)
ECAD Model:
3D Model

Description:

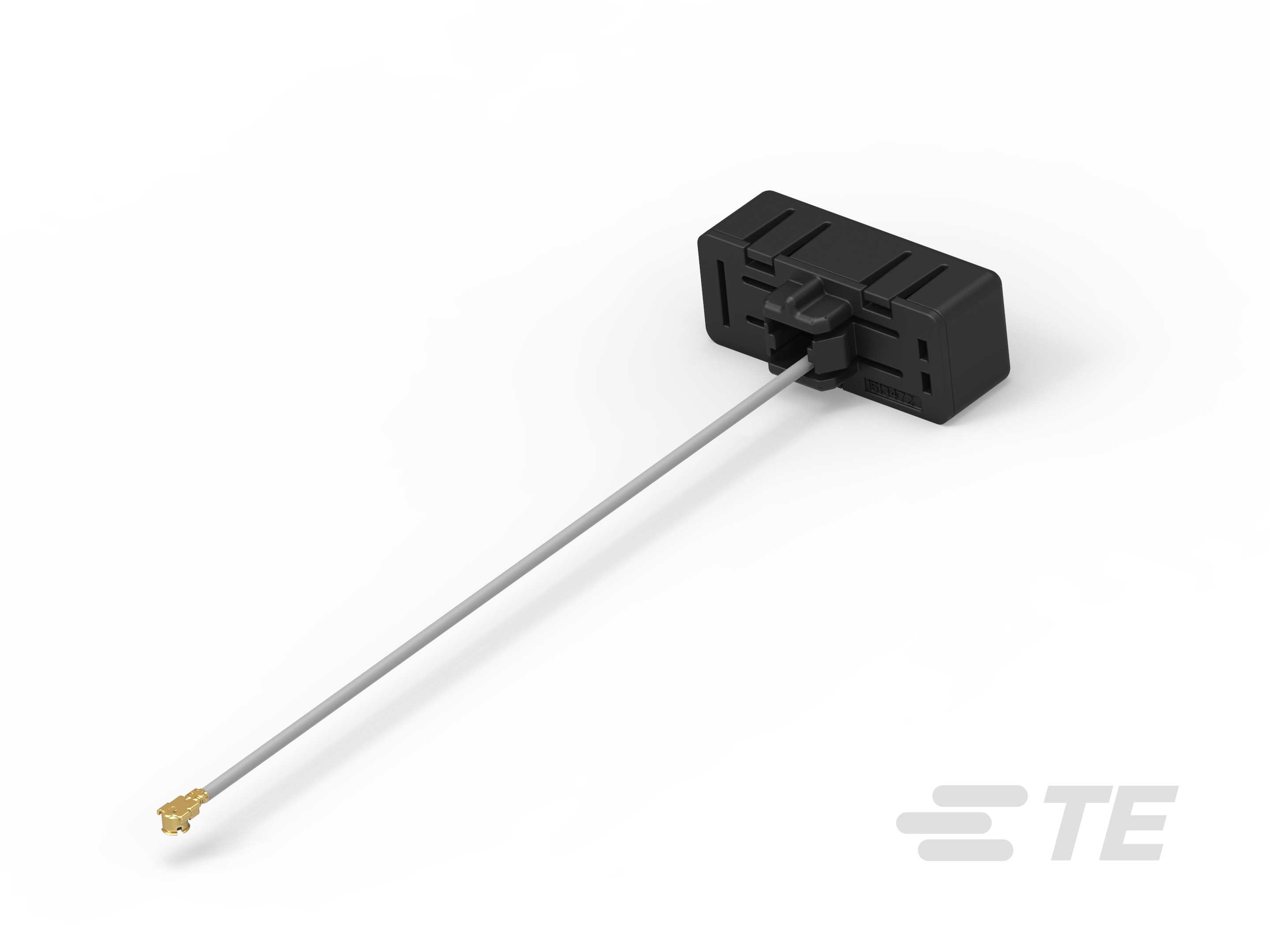

Stamped Metal Antenna, Dual Band, Bluetooth / Wi-Fi, External Mount, Snap-In, MHF4, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Part Number:Aero-Electric Connector | Conesys MS3454W36-7SZ
Gain:3 dB
Band Type:Dual Band
Antenna Type:Stamped Metal
Directionality:Omnidirectional
Mounting Style:Snap In
Frequency Range:2480 - 2620 MHz, 5500 - 6200 MHz
Center Frequency:2550 MHz, 5850 MHz
Antenna Termination Type:MHF4
Application:Bluetooth, Wi-Fi
VSWR:3:1
Protocol:802.11a, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Impedance:50 Ω
Polarization:Linear
SKU:AMP2-1513472-5

Detailed Description

Ensure seamless RoHS compliance with this dual-band stamped metal antenna, ideal for enhancing Bluetooth and Wi-Fi connectivity. With an omnidirectional design and a snap-in mounting style, it offers easy external installation. Operating at frequencies ranging from 2480 to 2620 MHz and 5500 to 6200 MHz, it guarantees optimal performance in both bands. Boasting a 3 dB gain and linear polarization, it provides reliable signal strength for various applications, including ZigBee, Bluetooth, and 802.11 protocols. With a VSWR of 3:1 and impedance of 50 Ω, it ensures efficient signal transmission. Perfect for use in diverse environments, this antenna is a must-have for seamless wireless communication.
