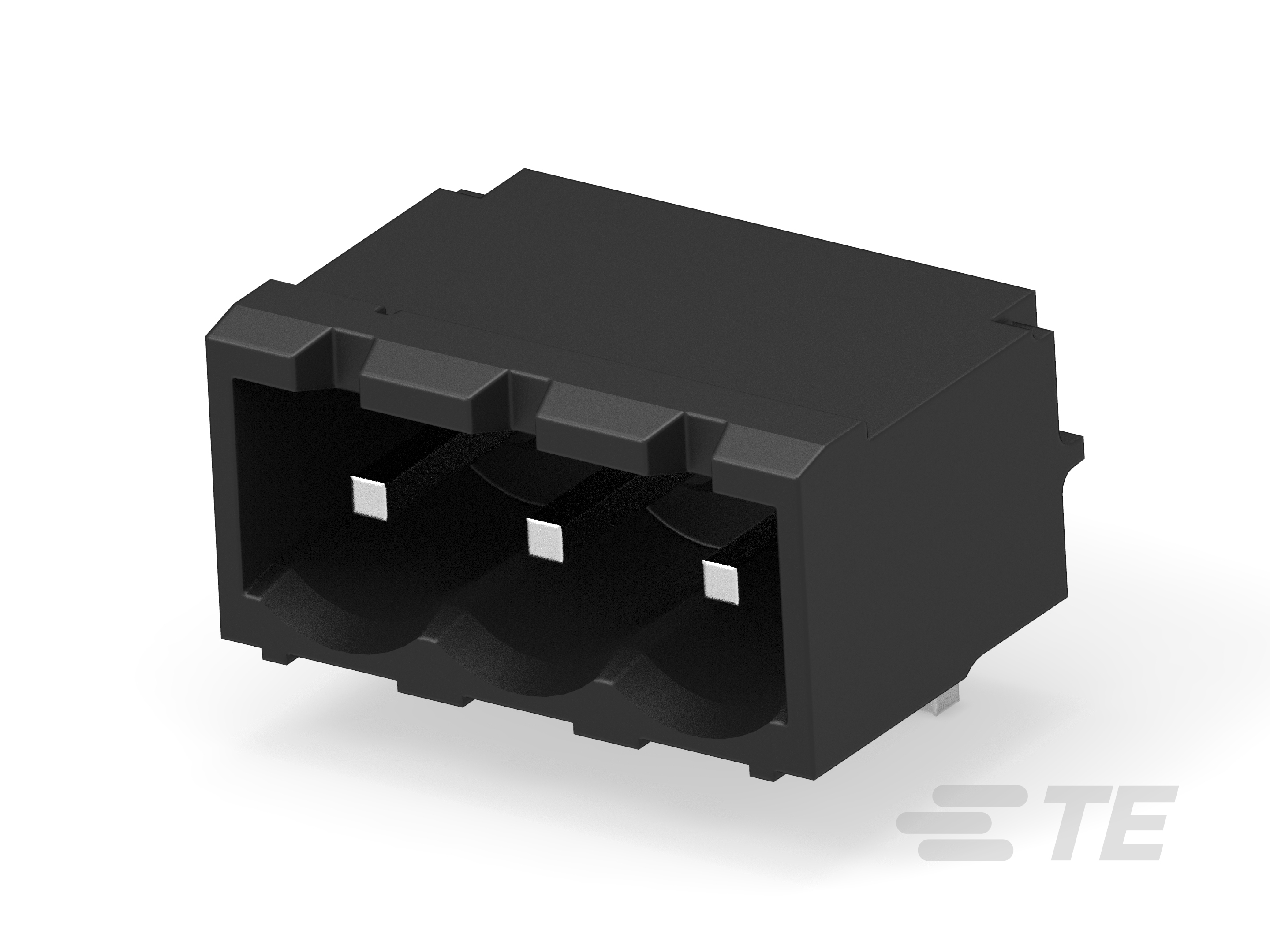

2-2342083-0

AMP2-2342083-0
Heilind Number:AMP2-2342083-0
Manufacturer:TE Connectivity
Manufacturer Number:2-2342083-0
Datasheet:3DDrawing
ECAD Model:
3D Model

Description:

20POS HDR 90 DEG,HT,5.08MM PITCH,TL2.6MM

More >>

Specifications

AttributeValue
Product Category:
Connectors Terminal Blocks
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2-2342083-0
Amperage:15 A
Gender:Header
Housing Material:High Temperature Polyamide
Number of Rows:1
Mount Type:Board Mount
Contact Material:CuMg
Pitch:.2 in, 5.08 mm
Voltage:300 V AC
Mount Angle:Vertical
Block Type:PCB Mount
Contact Amperage:15 A
Number of Positions:20
Housing Color:Black
GPL:124
Tail Length:.102 in, 2.6 mm
Packaging:Box
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7744
Connector System:Wire to Board
Header Type:Shrouded
Contact Mount Style:Through Hole
Screw Flange:Without
Screwless Terminal Block:No
Part Aliases:2-2342083-0
SKU:AMP2-2342083-0

Detailed Description

Easily connect power and signal circuits on your printed circuit board with this 15 A header. Featuring a single row design with 20 positions, it's perfect for efficient board mounting. The high temperature polyamide housing in sleek black ensures durability, while the contact material of CuMg guarantees reliable conductivity. With a voltage rating of 300 V AC and operating temperature range of -40 to 105 °C, this header is suitable for industrial applications. RoHS compliant and lead-free solder capable, it meets environmental standards without compromising performance. The 5.08 mm pitch and through-hole mount style offer ease of installation, making it ideal for various projects in the power and signal circuitry.
