2029054-3

AMP2029054-3
Heilind Number:AMP2029054-3
Manufacturer:TE Connectivity
Manufacturer Number:2029054-3
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

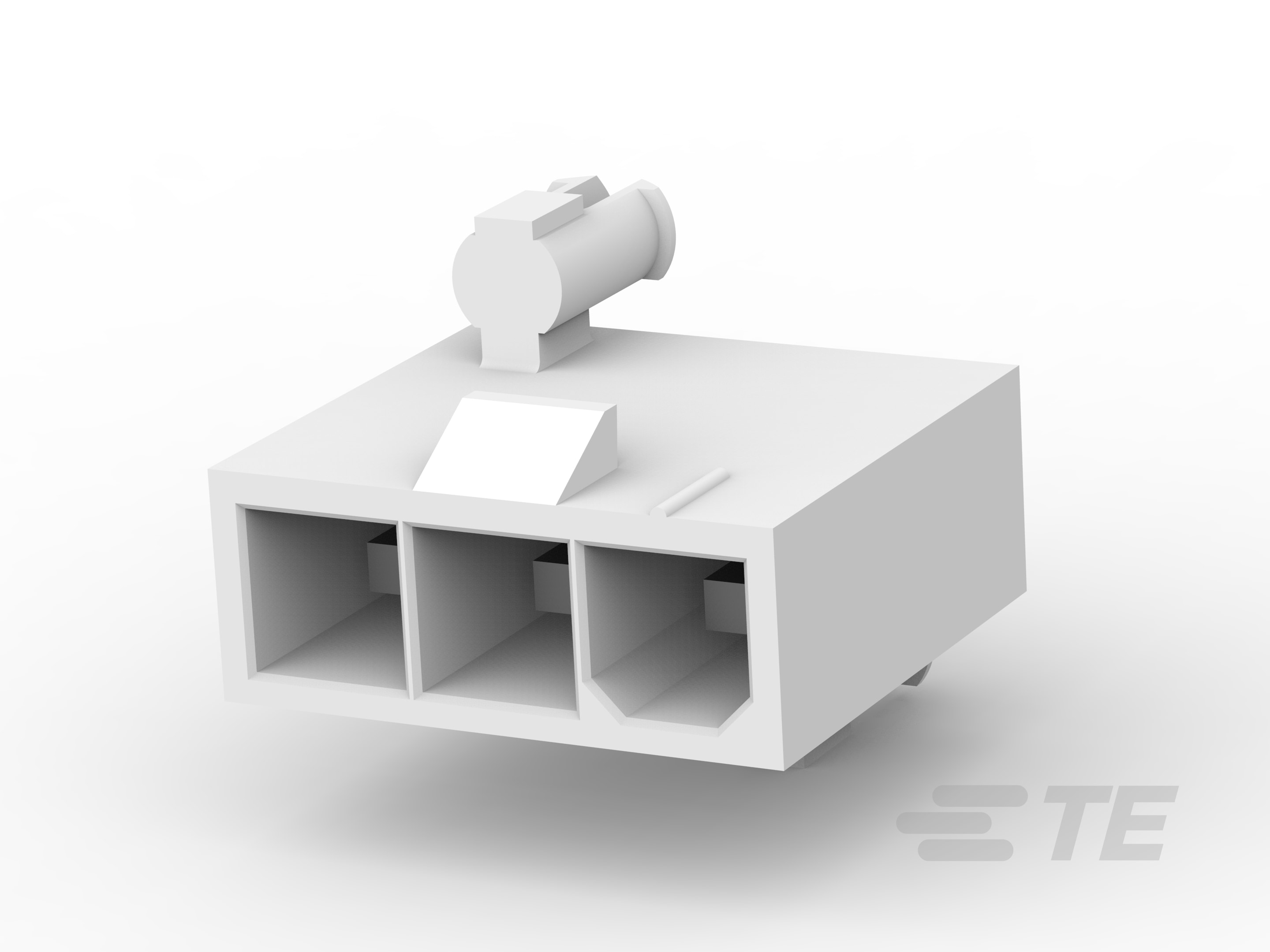

3P VAL-U-LOK SR HDR SN V2 W/DH

More >>

Specifications

AttributeValue
Product Category:
Connectors Power Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2029054-3
Housing Material:Nylon
Number of Rows:1
Mount Type:Board Mount
Termination Method:Through Hole - Solder
Pitch:.165 in, 4.2 mm
Voltage:600 V AC
Contact Type:Pin
Package Quantity:1000
Contact Amperage:9 A
Number of Positions:3
Housing Color:Natural
Mount Orientation:Vertical
GPL:G31
Mating Retention Type:Latch
Packaging:Box & Tray, Package
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power
Contact Mating Area Plating:Tin
Contact Mating Area Plating Thickness:2.03 µm, 80 µin
PCB Retention:With
PCB Thickness (Recommended):.07 in, 1.78 mm
Connector Height:12.8 mm, .504 in
PCB Retention Type:Boardlock
Sealable:No
Mating Alignment:With
Mating Alignment Type:Keyed
GPL Description:Appliances
Connector and Contact Terminate To:Printed Circuit Board
Product Code:K926
Number of Power Positions:3
Contact Layout:Inline
Connector Length:13.8 mm, .543 in
Connector System:Wire to Board
CSA Agency Certification:208567
Contact Termination Plating:Tin
Connector Product Type:Header
ECCN:EAR99
Connector Width:.213 in, 5.4 mm
Mating Retention:With
PCB Mount Alignment:With
Termination Post Tail Length:.138 in, 3.5 mm
Header Type:Shrouded
Max Insulation Diameter:2.39 in, 2.39 mm
Accepts Wire Insulation Diameter:.047 - .122 in, 1.2 - 3.1 mm
Contact Retention:Without
Glow Wire Rating:Standard Part - Not Glow Wire
Circuit Identification Feature:With
VDE Tested:No
Connector and Housing Type:Plug
Standards Met:CSA UL
Material Flammability Standard:UL 94V-2
Part Aliases:2029054-3
SKU:AMP2029054-3

Detailed Description

Enhance your power connections with this high-quality header connector, perfect for board mounting in appliances. Meeting CSA and UL standards for safety, its durable nylon housing in a natural color ensures reliability. With three inline pin contacts rated for 9A at 600V AC, it's ideal for power circuit applications. Featuring through-hole solder termination and a 4.2mm pitch, installation is secure and efficient. The shrouded header design, with a mating alignment key, guarantees proper connection every time. With 1000 pieces per package, this connector is a cost-effective solution for various projects. RoHS compliant and with a UL 94V-2 flammability rating, it's environmentally friendly and safe for use. Operating in temperatures ranging from -40 to 105°C, it's suitable for a wide range of applications. Upgrade your power systems with this reliable and efficient connector.
