2029058-3

AMP2029058-3
Heilind Number:AMP2029058-3
Manufacturer:TE Connectivity
Manufacturer Number:2029058-3
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

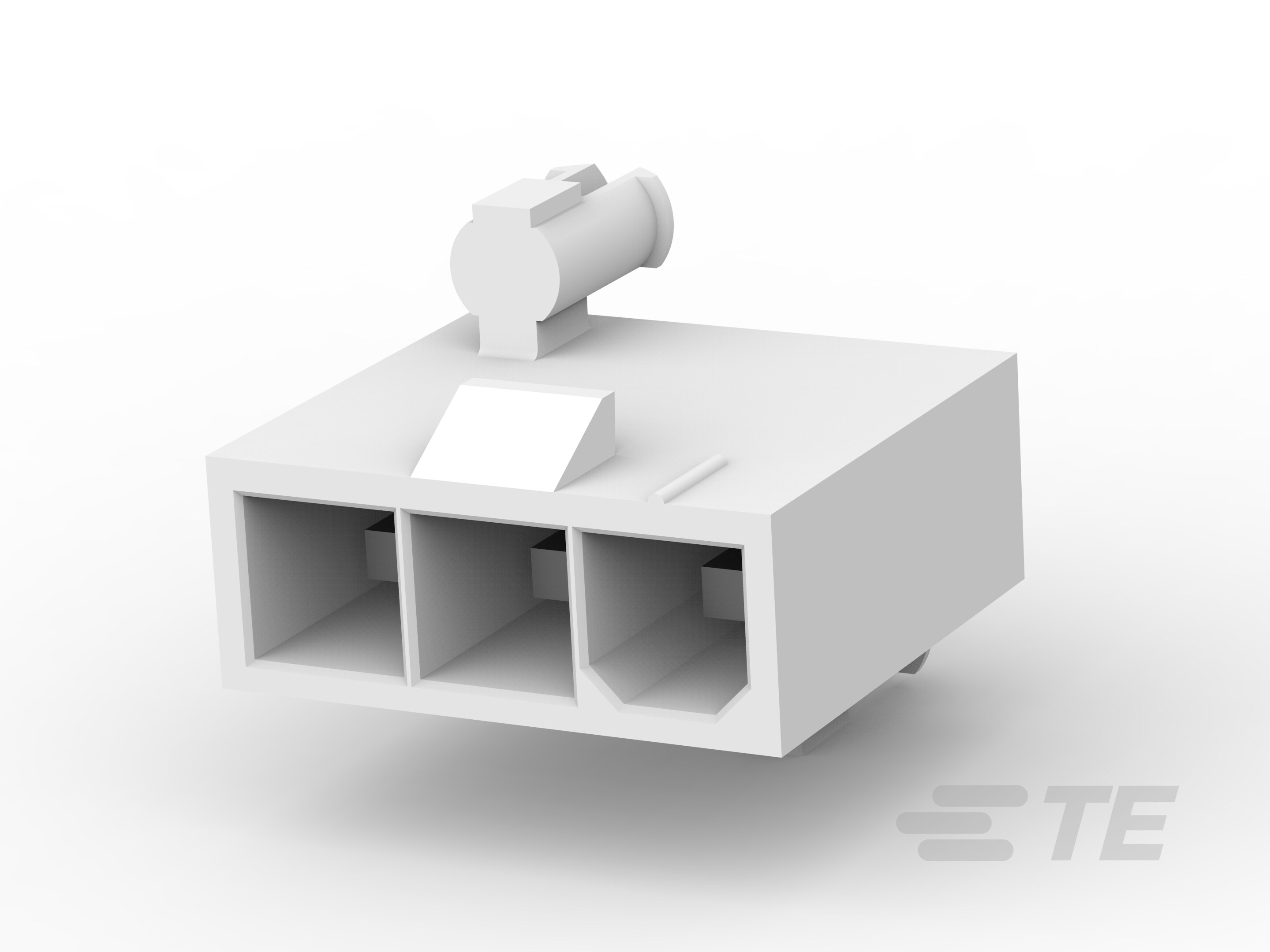

3P VAL-U-LOK SR HDR SN V2 WODH

More >>

Specifications

AttributeValue
Product Category:
Connectors Power Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2029058-3
Housing Material:Nylon
Number of Rows:1
Mount Type:Board Mount
Termination Method:Through Hole - Solder
Pitch:.165 in, 4.2 mm
Voltage:600 V AC
Contact Type:Pin
Contact Amperage:9 A
Number of Positions:3
Housing Color:Natural
Mount Orientation:Vertical
GPL:G31
Mating Retention Type:Latch
Packaging:Box & Tray, Package
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power
Contact Mating Area Plating:Tin
Contact Mating Area Plating Thickness:2.03 µm, 80 µin
PCB Retention:With
PCB Thickness (Recommended):.063 in, 1.78 mm
Connector Height:12.8 mm, .504 in
PCB Retention Type:Boardlock
Sealable:No
Mating Alignment:With
Mating Alignment Type:Keyed
GPL Description:Appliances
Connector and Contact Terminate To:Printed Circuit Board
Product Code:K926
Number of Power Positions:3
Contact Layout:Inline
Connector Length:13.8 mm, .543 in
Connector System:Wire to Board
CSA Agency Certification:208567
Contact Termination Plating:Tin
Connector Product Type:Header
ECCN:EAR99
Connector Width:.213 in, 5.4 mm
Mating Retention:With
PCB Mount Alignment:With
Termination Post Tail Length:.138 in, 3.5 mm
Header Type:Shrouded
Accepts Wire Insulation Diameter:.047 - .122 in, 1.2 - 3.1 mm
Contact Retention:Without
Glow Wire Rating:Standard Part - Not Glow Wire
Circuit Identification Feature:With
Connector and Housing Type:Plug
Standards Met:CSA UL
Material Flammability Standard:UL 94V-2
Part Aliases:2029058-3
SKU:AMP2029058-3

Detailed Description

Experience seamless power connectivity with this UL and CSA certified board mount connector, designed for reliable performance in various applications. With a durable nylon housing in a natural color, it offers a secure vertical mount orientation. Featuring through-hole solder termination and a pitch of 4.2mm, it ensures easy installation on printed circuit boards. Rated for up to 600V AC and 9A contact amperage, it is ideal for power circuit applications. The tin-plated pin contacts with a contact mating area plating thickness of 80µin guarantee efficient signal transmission. With a compact connector length of 13.8mm and width of 5.4mm, it fits seamlessly into wire-to-board setups. Its shrouded header design with a mating retention latch ensures a secure connection. Operating in a wide temperature range of -40 to 105°C, it is suitable for use in diverse environments. RoHS compliant and with a UL 94V-2 flammability rating, this connector prioritizes safety and environmental standards. Perfect for appliances and other power-intensive devices, it offers three power positions with inline contact layout, making it a versatile choice for your connectivity needs.
