2108783-1

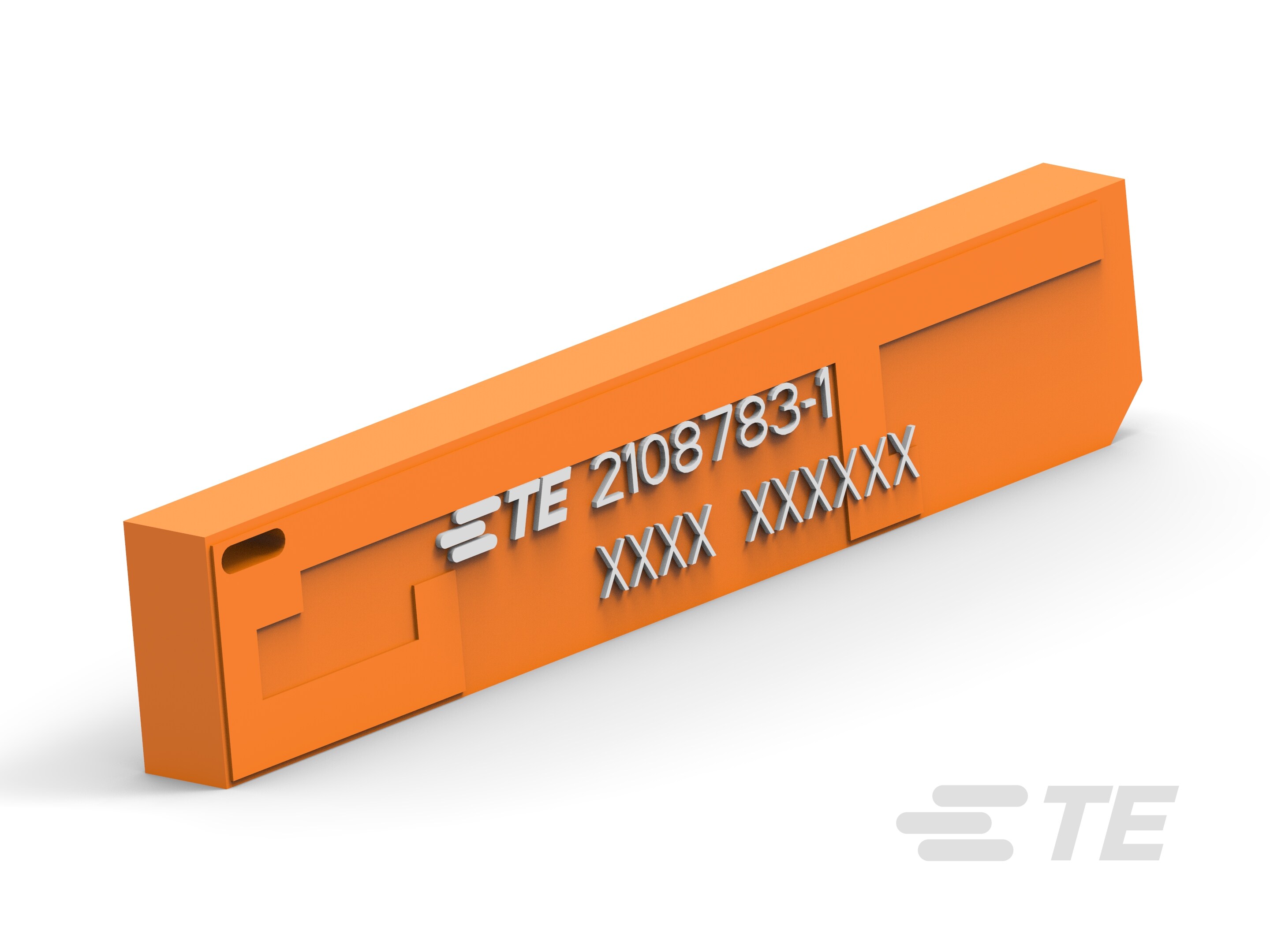

AMP2108783_1
Heilind Number:AMP2108783-1
Manufacturer:TE Connectivity
Manufacturer Number:2108783-1
Datasheet:3D Model (STP)
ECAD Model:
3D Model

Description:

Chip Antenna, Multi Band, 5G / Cat-M/NB-IoT / Cellular, Internal/Embedded Mount, Surface Mount, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2108783-1
Impedance:50 Ω
Polarization:Linear
Protocol:EU Triband, LTE, UMTS, US Dual Band, WCDMA
Mounting Style:Surface Mount
VSWR:2:1
Antenna Type:Chip, PCB
Application:5G, Bluetooth, Cat-M/NB-IoT, Cellular, ISM, LoRaWAN, LPWA, Wi-Fi
Band Type:Multi Band
Center Frequency:1517.5 MHz, 2305 MHz, 3550 MHz, 768.5 MHz
Directionality:Omnidirectional
Frequency Range:1427 - 1608 MHz, 1710 - 2900 MHz, 3300 - 3800 MHz, 617 - 920 MHz
Gain:2.5 dB, 2 dB, 3.2 dB, 4.9 dB
SKU:AMP2108783-1

Detailed Description

Stay connected with our RoHS-compliant Multi Band Chip Antenna, designed for seamless integration in a variety of wireless applications. Offering a gain ranging from 2 dB to 4.9 dB across multiple frequency bands, including 5G, Bluetooth, Cat-M/NB-IoT, and Wi-Fi, this omnidirectional antenna ensures reliable performance. With a surface mount design and linear polarization, it's ideal for internal/embedded mounting. Whether you're in need of LTE, UMTS, or EU Triband compatibility, this antenna with an impedance of 50 Ω is the perfect solution for your connectivity needs.
