2108789-1

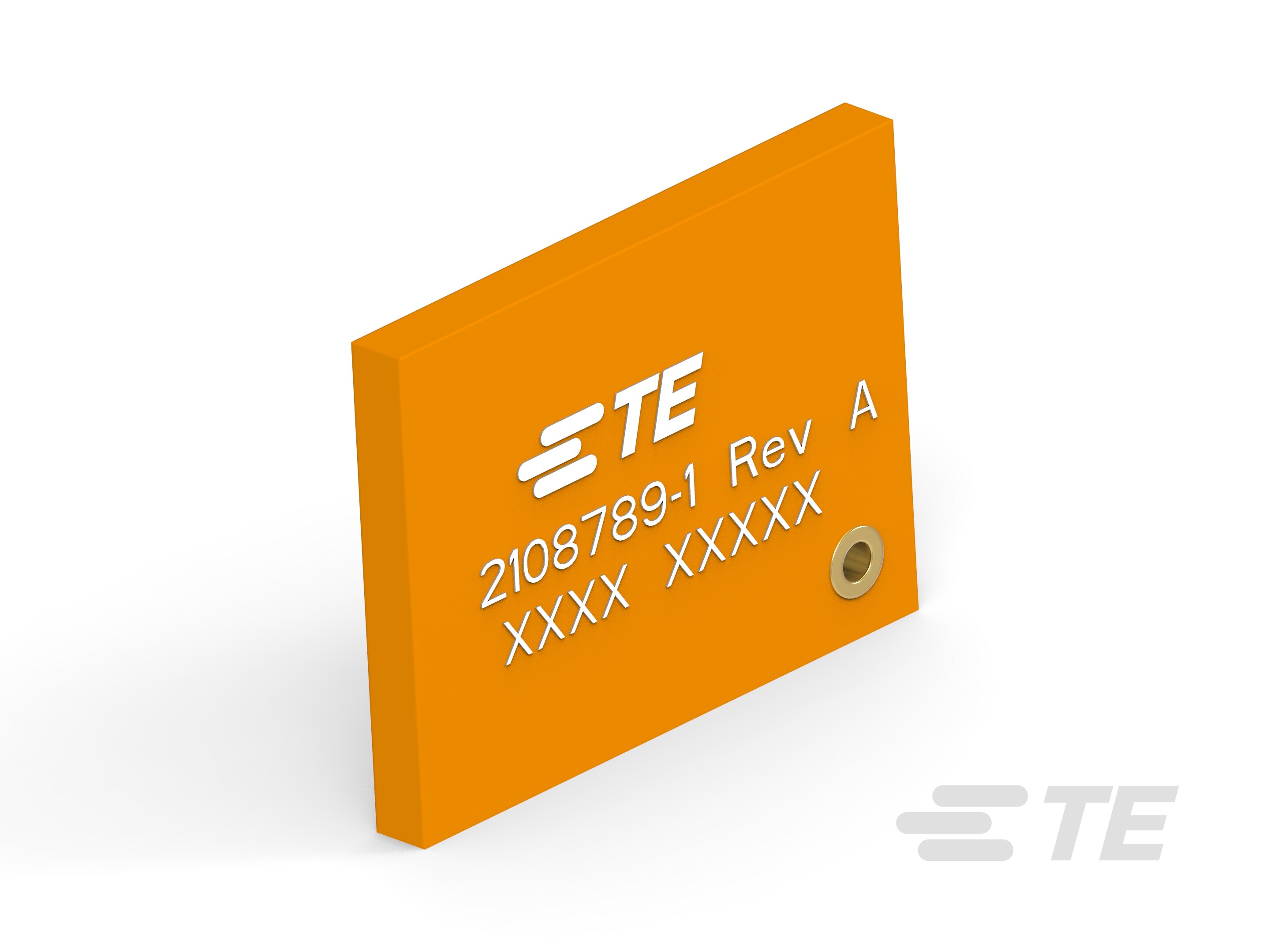

AMP2108789_1
Heilind Number:AMP2108789-1
Manufacturer:TE Connectivity
Manufacturer Number:2108789-1
Datasheet:Product Specification
ECAD Model:
3D Model

Description:

Chip Antenna, Single Band, Bluetooth / Wi-Fi, Internal/Embedded Mount, Surface Mount, Omnidirectional, Single Port, Gain 0 < 3 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2108789-1
Gain:1 dB
Band Type:Single Band
Antenna Type:Chip, PCB
Directionality:Omnidirectional
Mounting Style:Surface Mount
Frequency Range:2400 - 2483.5 MHz
Center Frequency:2441.75 MHz
Application:Bluetooth, Wi-Fi
VSWR:2:1
Protocol:802.11b, 802.11g, Bluetooth, ZigBee
Impedance:50 Ω
Polarization:Linear
SKU:AMP2108789-1

Detailed Description

Ensure seamless wireless connectivity with this RoHS-compliant chip antenna, featuring a 1 dB gain and omnidirectional coverage for reliable signal transmission. Designed for Bluetooth and Wi-Fi applications, it operates within the 2400-2483.5 MHz frequency range, with a center frequency of 2441.75 MHz. Perfect for internal/embedded mounting on PCBs, its surface mount design offers easy installation. Compatible with ZigBee, Bluetooth, 802.11b, and 802.11g protocols, this antenna has a 50 Ω impedance and linear polarization, guaranteeing optimal performance. Ideal for a range of wireless devices, it boasts a VSWR of 2:1 and a compact form factor, making it a versatile choice for enhancing connectivity in various applications.
