2108790-1

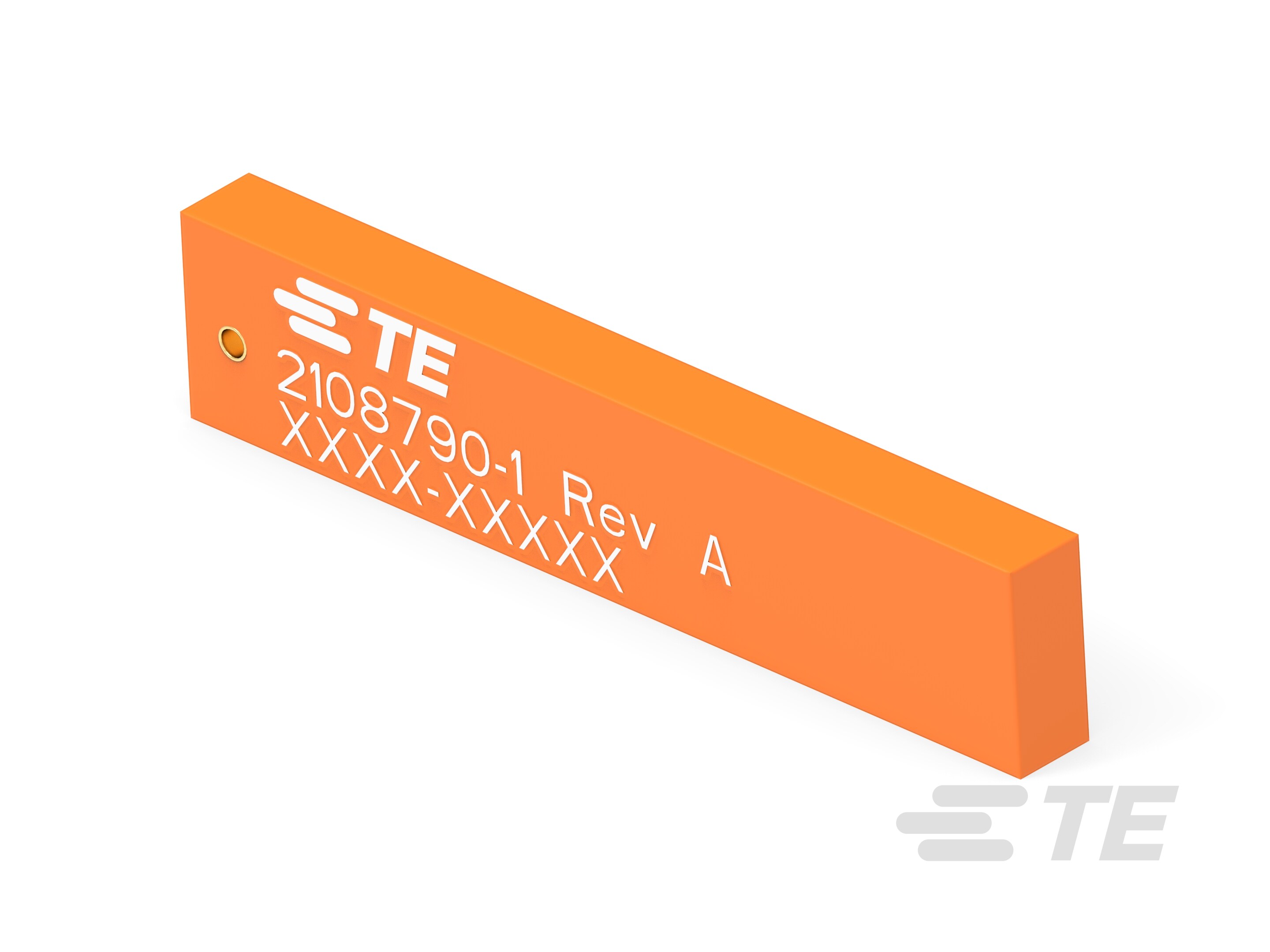

AMP2108790_1
Heilind Number:AMP2108790-1
Manufacturer:TE Connectivity
Manufacturer Number:2108790-1
Datasheet:2D Model (DXF)
ECAD Model:
3D Model

Description:

Chip Antenna, Single Band, Bluetooth / Wi-Fi, Internal/Embedded Mount, Surface Mount, Omnidirectional, Single Port, Gain 0 < 3 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2108790-1
Impedance:50 Ω
Polarization:Vertical Linear
Protocol:802.11b, 802.11g, Bluetooth, ZigBee
Mounting Style:Surface Mount
VSWR:2:1
Antenna Type:Chip, PCB
Application:Bluetooth, Wi-Fi
Band Type:Single Band
Center Frequency:2441.75 MHz
Directionality:Omnidirectional
Frequency Range:2400 - 2483.5 MHz
Gain:2 dB
SKU:AMP2108790-1

Detailed Description

This RoHS-compliant chip antenna offers a 2 dB gain within a single band, making it ideal for Bluetooth and Wi-Fi applications. Designed for internal/embedded mounting with surface mount compatibility, its omnidirectional nature ensures efficient signal transmission. Operating at a center frequency of 2441.75 MHz within the 2400-2483.5 MHz range, it supports various protocols including ZigBee, Bluetooth, 802.11b, and 802.11g. With a 50 Ω impedance and vertical linear polarization, it guarantees reliable performance for wireless connectivity needs. This antenna is a valuable component for enhancing signal strength in a variety of electronic devices.
