2108790-2

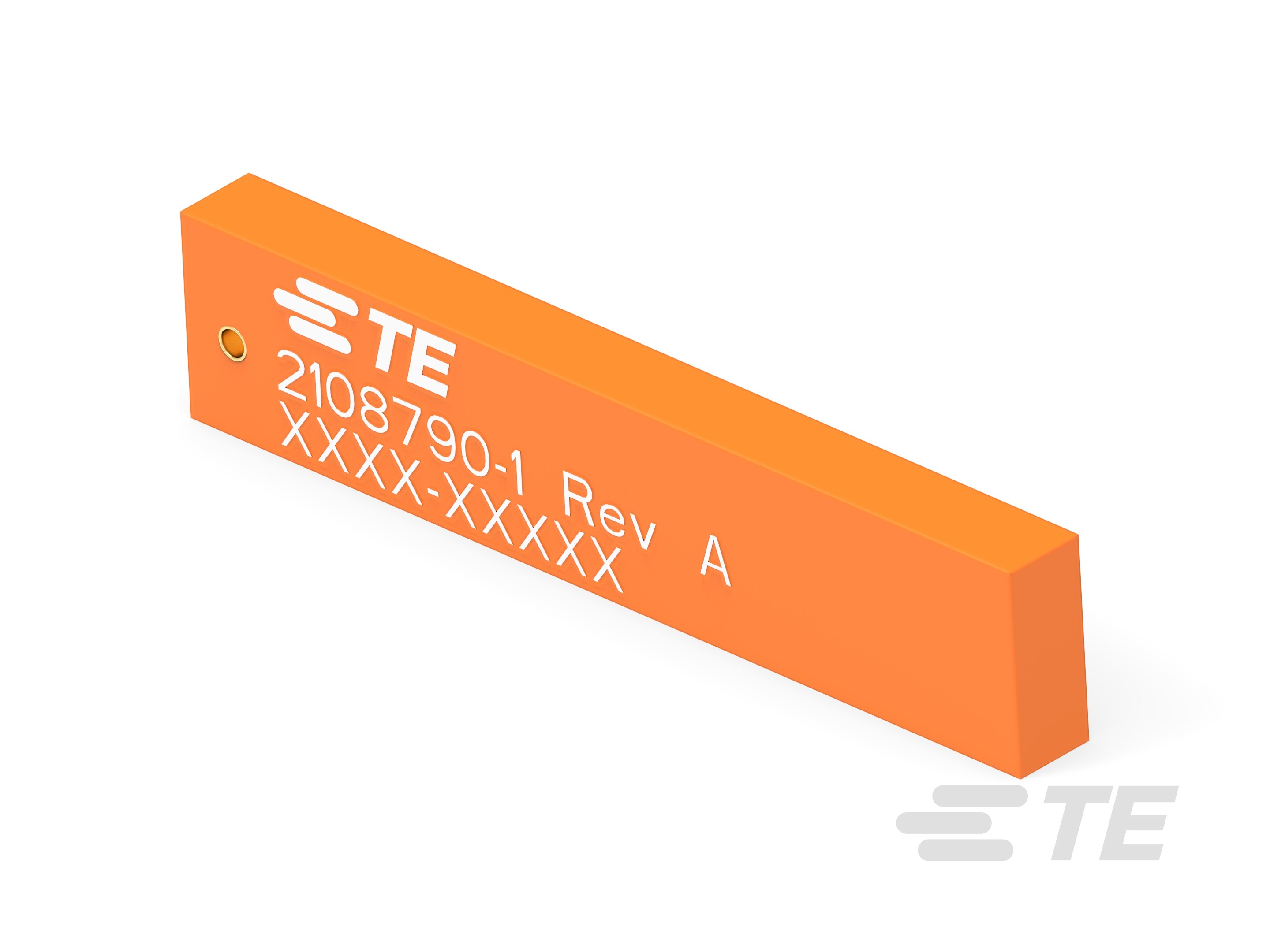

AMP2108790_2
Heilind Number:AMP2108790-2
Manufacturer:TE Connectivity
Manufacturer Number:2108790-2
Datasheet:Material Declaration (XLSX)
ECAD Model:
3D Model

Description:

Chip Antenna, Single Band, Bluetooth / Wi-Fi, Internal/Embedded Mount, Surface Mount, Omnidirectional, Single Port, Gain 0 < 3 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2108790-2
Impedance:50 Ω
Polarization:Linear, Vertical Linear
Protocol:802.11b, 802.11g, Bluetooth, ZigBee
Mounting Style:Surface Mount
VSWR:2:1
Antenna Type:Chip, PCB
Application:Bluetooth, Wi-Fi
Band Type:Single Band
Center Frequency:2441.75 MHz
Directionality:Omnidirectional
Frequency Range:2400 - 2483.5 MHz
Gain:2 dB
SKU:AMP2108790-2

Detailed Description

Enhance the performance of your Bluetooth and Wi-Fi devices with this single band chip antenna. Designed for internal/embedded mounting with a surface mount option, it offers omnidirectional coverage with a 2 dB gain. Operating within a frequency range of 2400-2483.5 MHz, it's perfect for applications in ZigBee, Bluetooth, 802.11b, and 802.11g protocols. With a VSWR of 2:1 and an impedance of 50 Ω, it ensures efficient signal transmission. Its linear, vertical polarization and compact design make it ideal for various wireless communication systems. Upgrade your devices with this high-performance antenna for seamless connectivity.
