2108792-1

AMP2108792_1
Heilind Number:AMP2108792-1
Manufacturer:TE Connectivity
Manufacturer Number:2108792-1
Datasheet:2D Model (DXF)
ECAD Model:
3D Model

Description:

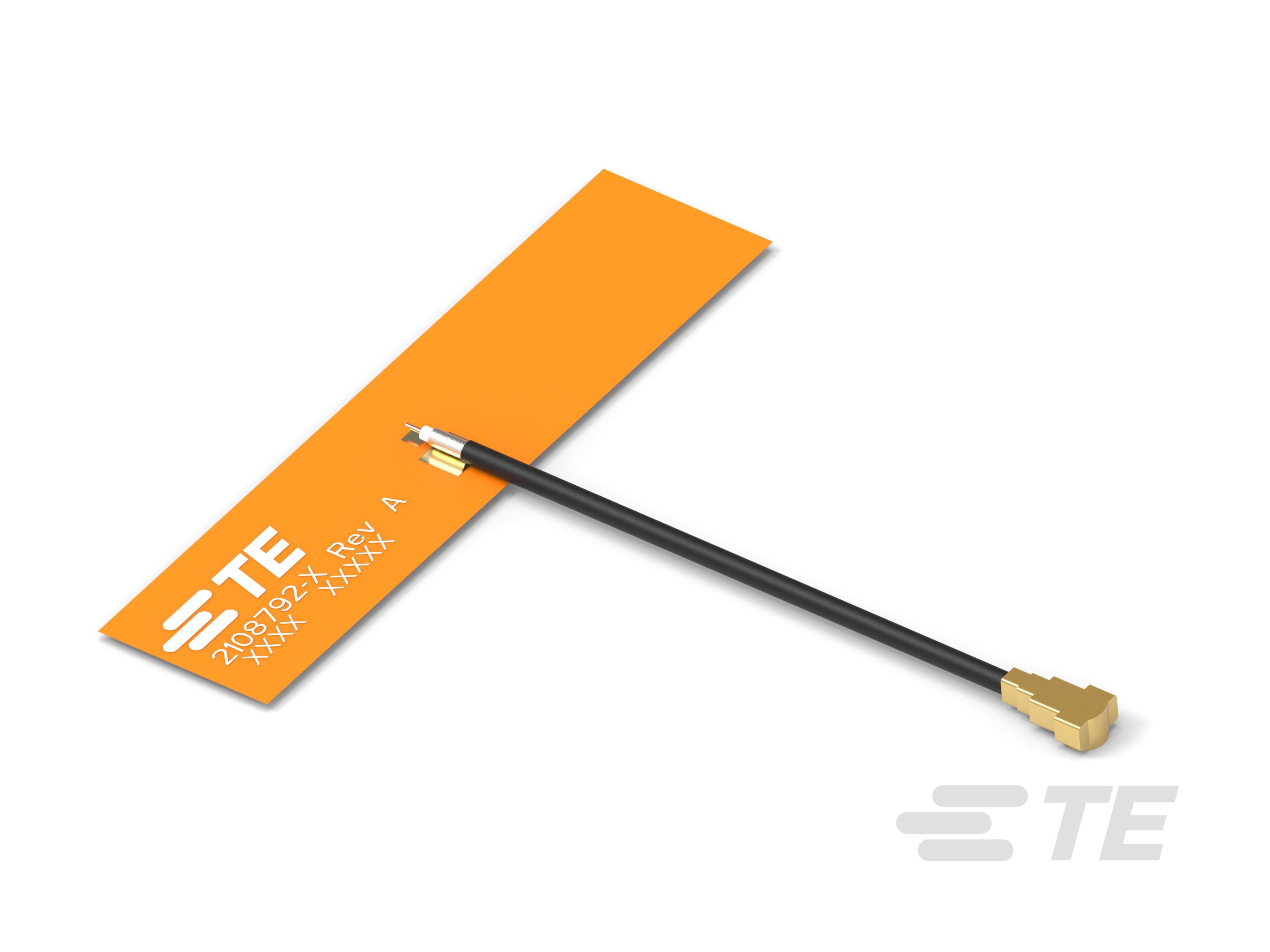

Flexible PCB (FPC) Antenna, Triple Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF / MHF1 / U.FL, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2108792-1
Gain:3.5 dB
Band Type:Triple Band
Antenna Type:Flexible PCB
Directionality:Omnidirectional
Mounting Style:Adhesive
Frequency Range:2400 - 2500 MHz, 5150 - 5875 MHz, 5925 - 7125 MHz
Center Frequency:2450 MHz, 5512.5 MHz, 6525 MHz
Antenna Termination Type:MHF, MHF1, U.FL, UMCC
Application:Bluetooth, Wi-Fi
VSWR:2:1
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Impedance:50 Ω
Polarization:Linear
SKU:AMP2108792-1

Detailed Description

Stay connected seamlessly with our RoHS-compliant Triple Band Flexible PCB Antenna, designed for optimal performance in Wi-Fi and Bluetooth applications. This omnidirectional antenna, with a gain of 3.5 dB, operates across three bands, covering frequencies from 2400 MHz to 7125 MHz, ensuring reliable connectivity in diverse environments. Its adhesive mounting style and compact form factor make it ideal for internal/embedded installations. With compatibility for MHF, MHF1, U.FL, and UMCC antenna terminations, and support for protocols like ZigBee, 802.11a/b/g/n/ac/ax, this antenna is a versatile solution for various wireless communication systems. Its linear polarization and 50 Ω impedance further enhance signal stability, while its VSWR of 2:1 guarantees efficient performance. Trust in this high-quality antenna for your connectivity needs.
