2108792-3

AMP2108792_3
Heilind Number:AMP2108792-3
Manufacturer:TE Connectivity
Manufacturer Number:2108792-3
Datasheet:Product Specification
ECAD Model:
3D Model

Description:

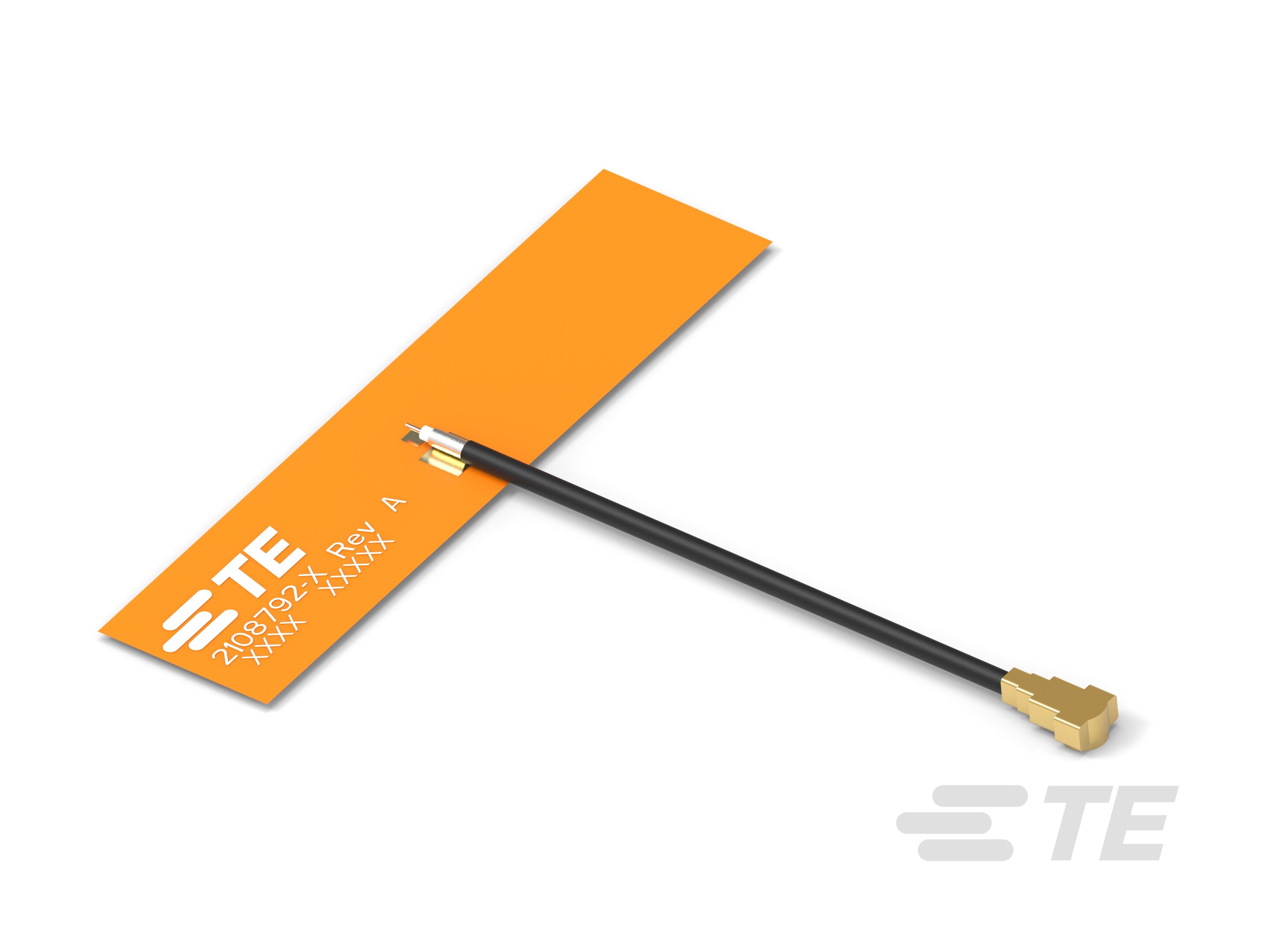

Flexible PCB (FPC) Antenna, Triple Band, Wi-Fi, Internal/Embedded Mount, Adhesive, UMCC / U.FL / MHF1, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2108792-3
Gain:3.6 dB
Band Type:Triple Band
Antenna Type:Flexible PCB
Directionality:Omnidirectional
Mounting Style:Adhesive
Frequency Range:2400 - 2500 MHz, 5150 - 5875 MHz, 5925 - 7125 MHz
Center Frequency:2450 MHz, 5512.5 MHz, 6525 MHz
Antenna Termination Type:MHF, MHF1, U.FL, UMCC
Application:Bluetooth, Wi-Fi
VSWR:2.5:1
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Impedance:50 Ω
Polarization:Linear
SKU:AMP2108792-3

Detailed Description

Stay connected with our RoHS-compliant Triple Band Flexible PCB Antenna, ideal for Bluetooth and Wi-Fi applications. With a gain of 3.6 dB and omnidirectional directionality, it ensures reliable signal transmission across the 2400-2500 MHz, 5150-5875 MHz, and 5925-7125 MHz frequency ranges. Featuring a low VSWR of 2.5:1 and impedance of 50 Ω, this antenna is optimized for ZigBee, Bluetooth, and various 802.11 protocols, including a, ac, ad, ax, b, g, and n. Its internal/embedded adhesive mounting style, along with compatibility with UMCC, U.FL, and MHF1 terminations, offers versatility in installation. Experience seamless connectivity with this high-performance FPC antenna.
