2108792-7

AMP2108792_7
Heilind Number:AMP2108792-7
Manufacturer:TE Connectivity
Manufacturer Number:2108792-7
Datasheet:3D Model (PDF)
ECAD Model:
3D Model

Description:

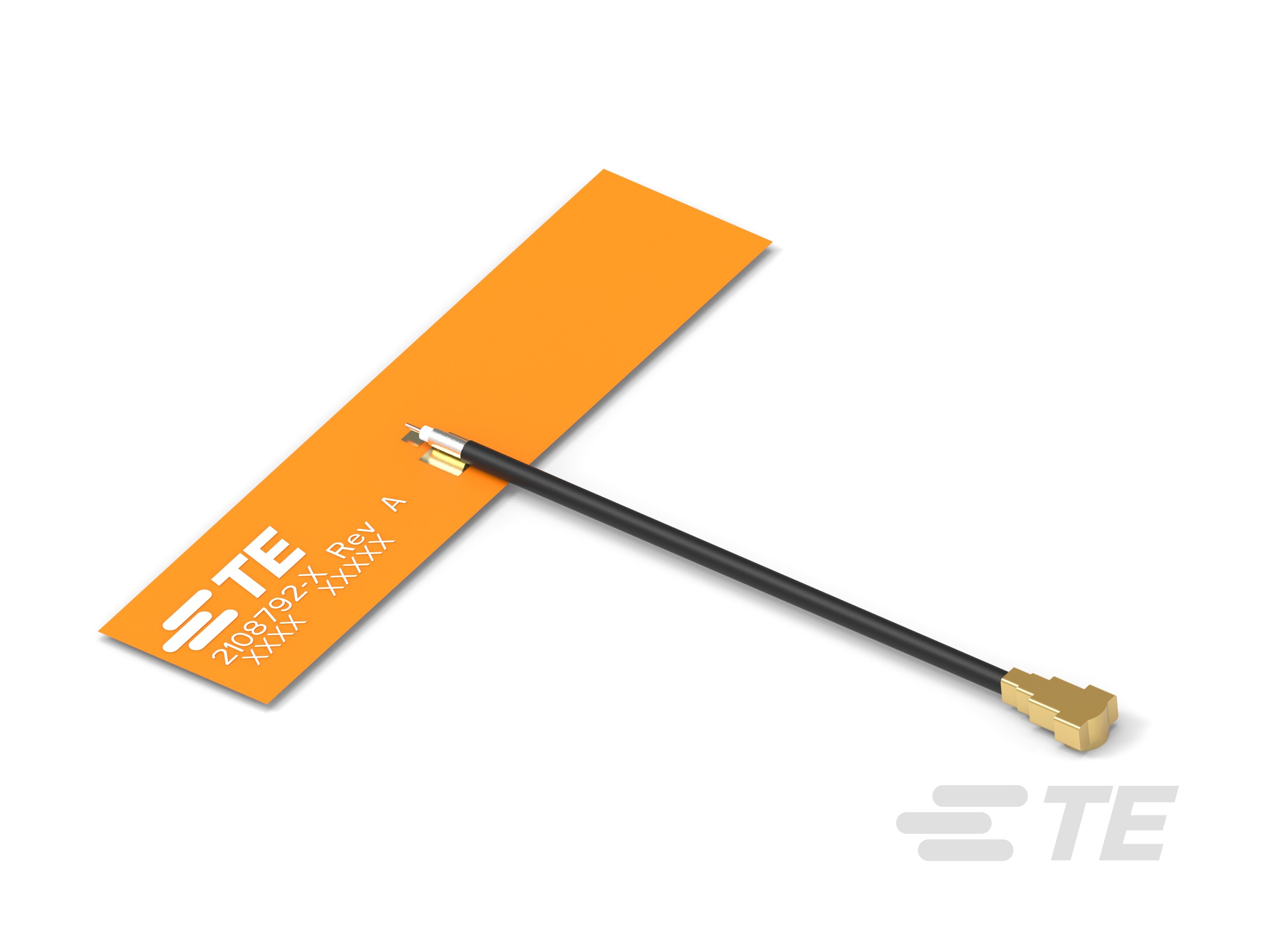

Flexible PCB (FPC) Antenna, Triple Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF4, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2108792-7
Gain:5.1 dB
Band Type:Triple Band
Antenna Type:Flexible PCB
Directionality:Omnidirectional
Mounting Style:Adhesive
Frequency Range:2400 - 2500 MHz, 5150 - 5875 MHz, 5925 - 7125 MHz
Center Frequency:2450 MHz, 5512.5 MHz, 6525 MHz
Antenna Termination Type:MHF4
Application:Bluetooth, Wi-Fi
VSWR:2.5:1
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Impedance:50 Ω
Polarization:Linear
SKU:AMP2108792-7

Detailed Description

Stay connected with our RoHS compliant Flexible PCB (FPC) Antenna, designed for Triple Band performance in the 2.4GHz, 5GHz, and 6GHz frequency ranges. Ideal for Bluetooth and Wi-Fi applications, this omnidirectional antenna boasts a gain of 5.1 dB, ensuring reliable signal transmission. With an adhesive mounting style and MHF4 termination, it offers seamless integration for internal/embedded use. Compliant with ZigBee, Bluetooth, and various 802.11 protocols, this antenna guarantees optimal performance in a range of wireless communication setups. Its linear polarization and 50 Ω impedance further enhance signal stability, making it a must-have component in antenna systems.
