2108792-8

AMP2108792_8
Heilind Number:AMP2108792-8
Manufacturer:TE Connectivity
Manufacturer Number:2108792-8
Datasheet:Product Specification
ECAD Model:
3D Model

Description:

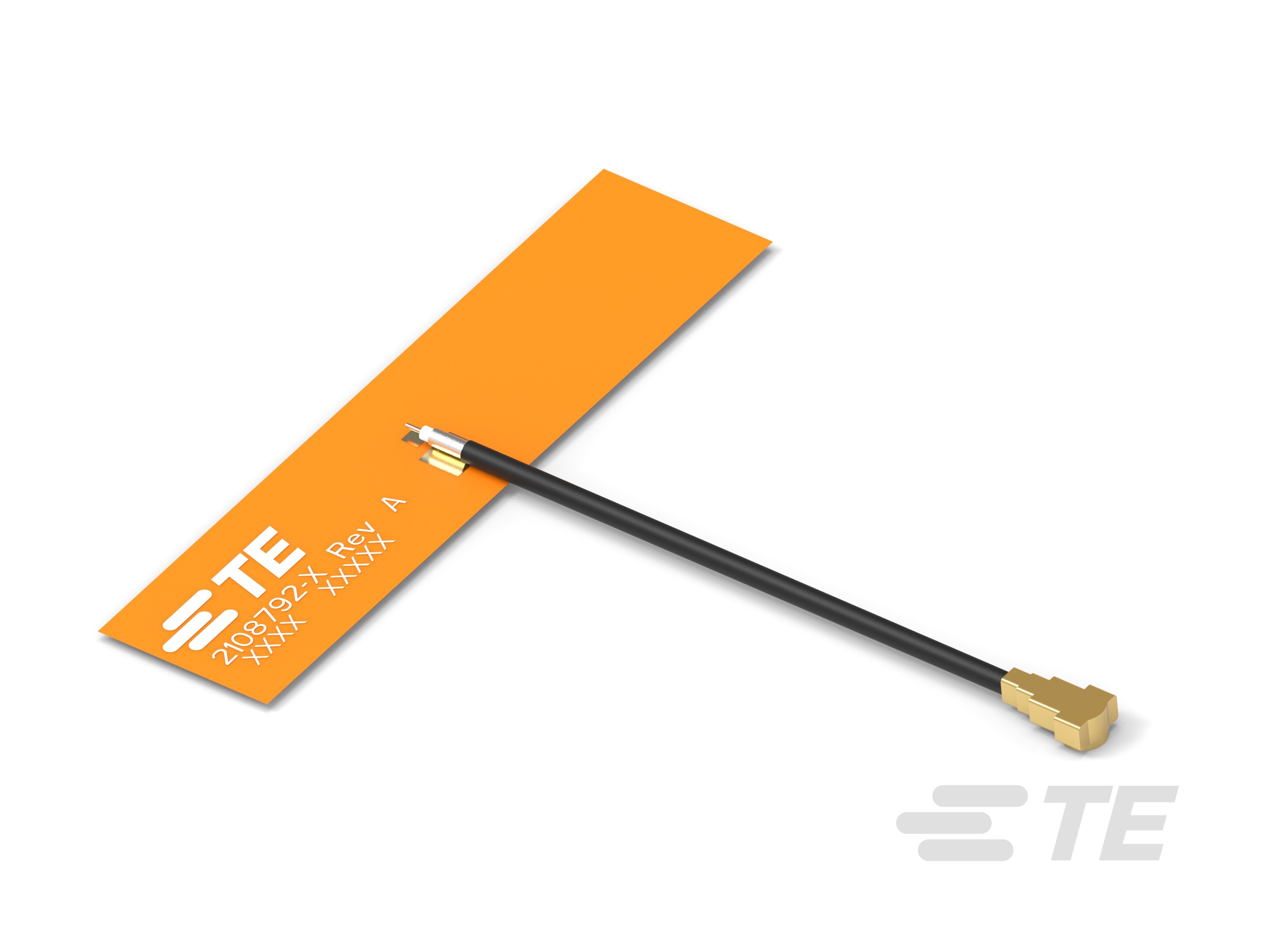

Flexible PCB (FPC) Antenna, Triple Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF4, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2108792-8
Gain:4.1 dB
Band Type:Triple Band
Antenna Type:Flexible PCB
Directionality:Omnidirectional
Mounting Style:Adhesive
Frequency Range:2400 - 2500 MHz, 5150 - 5875 MHz, 5925 - 7125 MHz
Center Frequency:2450 MHz, 5512.5 MHz, 6525 MHz
Antenna Termination Type:MHF4
Application:Bluetooth, Wi-Fi
VSWR:2:1
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Impedance:50 Ω
Polarization:Linear
SKU:AMP2108792-8

Detailed Description

Stay connected with our RoHS-compliant Triple Band Flexible PCB Antenna, offering a gain of 4.1 dB across 2400-2500 MHz, 5150-5875 MHz, and 5925-7125 MHz frequency ranges. Designed for seamless integration, this omnidirectional antenna features an adhesive mounting style and MHF4 termination. Perfect for Bluetooth and Wi-Fi applications, it ensures optimal performance with a VSWR of 2:1. Supporting various protocols including ZigBee and 802.11 standards, this antenna is a versatile choice for wireless communication needs. With linear polarization and impedance of 50 Ω, it guarantees reliable signal transmission. Ideal for internal/embedded mounting, this antenna is a must-have for achieving high-speed connectivity in a compact form factor.
