2108793-2

AMP2108793_2
Heilind Number:AMP2108793-2
Manufacturer:TE Connectivity
Manufacturer Number:2108793-2
Datasheet:Material Declaration (XLSX)
ECAD Model:
3D Model

Description:

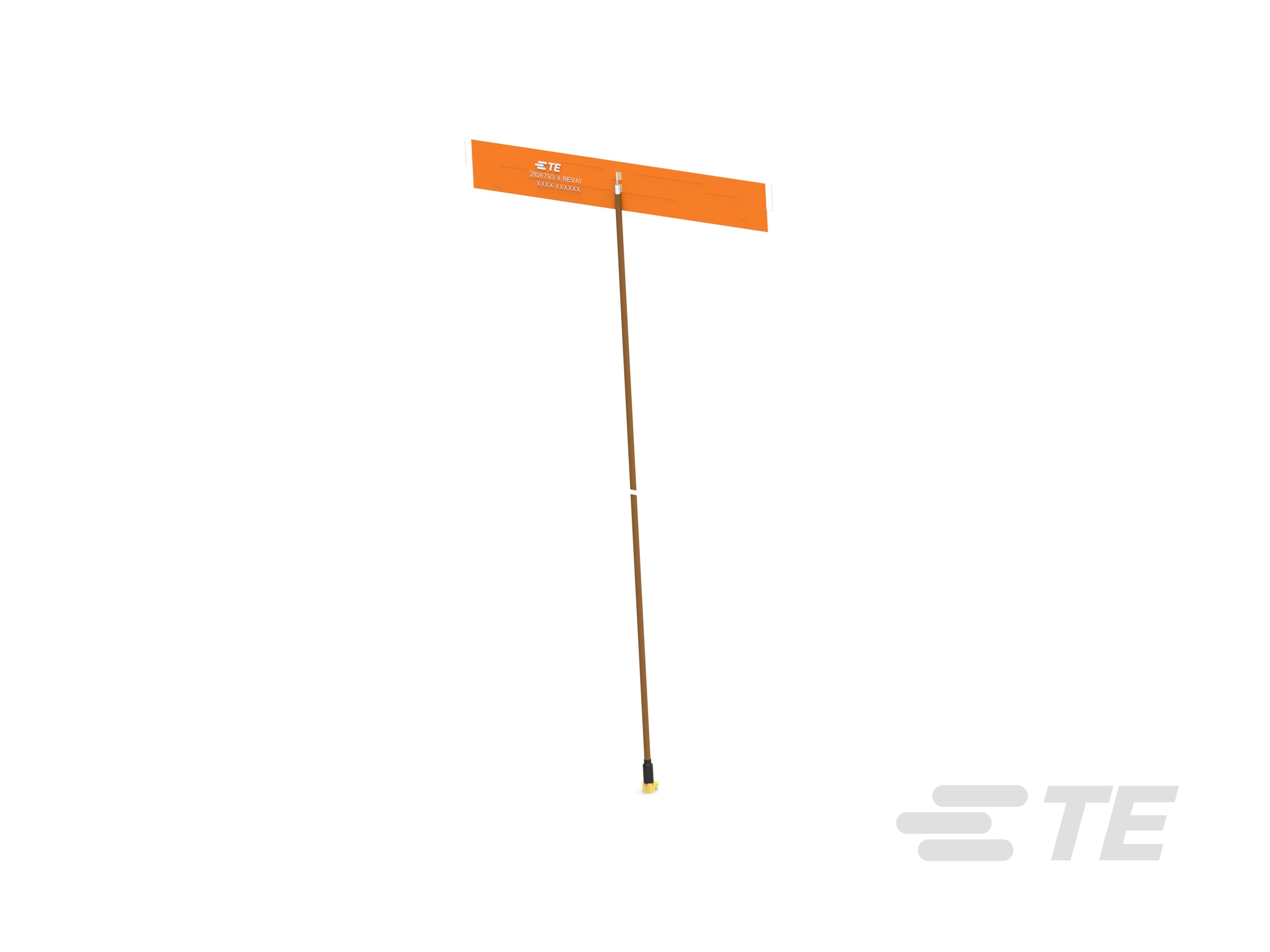

Flexible PCB (FPC) Antenna, Dual Band, Bluetooth / ISM / Wi-Fi, Internal/Embedded Mount, Adhesive, MMCX, Omnidirectional, Single Port, Gain 0 < 3 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2108793-2
Impedance:50 Ω
Polarization:Linear
Protocol:802.11b, 802.11g, Bluetooth, Cellular, EU Cellular, WiMAX, ZigBee
Mounting Style:Adhesive
VSWR:2.1:1
Antenna Type:Flexible PCB
Antenna Termination Type:MMCX
Application:Bluetooth, ISM, Wi-Fi, Zigbee
Band Type:Dual Band
Center Frequency:2450 MHz, 892 MHz
Directionality:Omnidirectional
Frequency Range:2400 - 2500 MHz, 824 - 960 MHz
Gain:2.1 dB, 2 dB
SKU:AMP2108793-2

Detailed Description

Stay connected with our RoHS-compliant Dual Band Flexible PCB Antenna, perfect for Bluetooth, ISM, Wi-Fi, and Zigbee applications. Designed for internal/embedded mounting with an adhesive backing, this omnidirectional antenna features a gain of 2.1 dB in the 2400-2500 MHz and 2 dB in the 824-960 MHz frequency ranges. With MMCX antenna termination and a linear polarization, it ensures reliable performance for various protocols including ZigBee, Cellular, Bluetooth, WiMAX, 802.11b, and 802.11g. Operating at a center frequency of 2450 MHz and 892 MHz, with a VSWR of 2.1:1, it's an essential component for seamless wireless connectivity.
