2108857-1

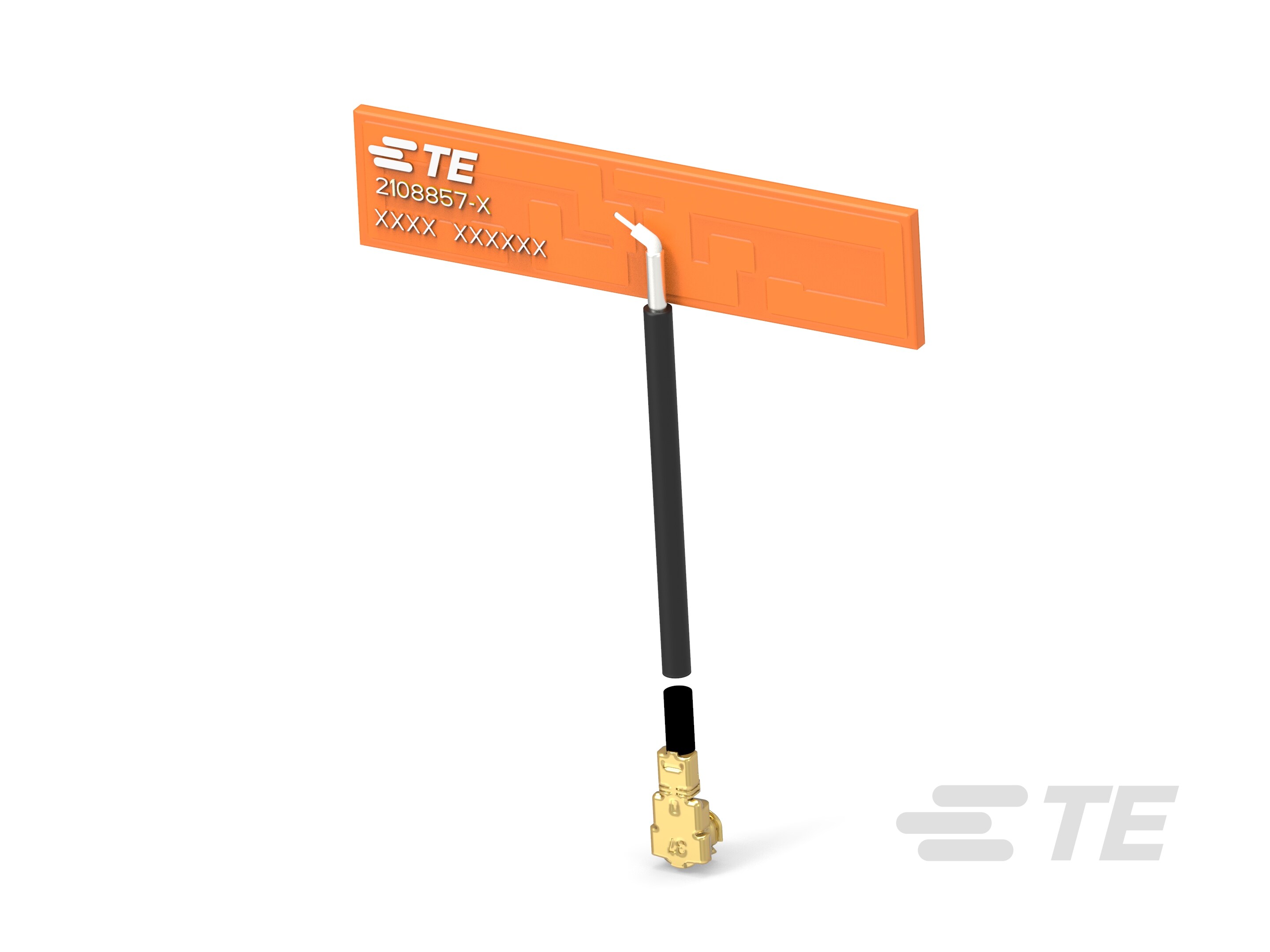

AMP2108857_1
Heilind Number:AMP2108857-1
Manufacturer:TE Connectivity
Manufacturer Number:2108857-1
Datasheet:2D Model (DXF)
ECAD Model:
3D Model

Description:

PCB Antenna, Triple Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF / MHF1 / U.FL, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2108857-1
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Mounting Style:Adhesive
VSWR:2.1:1
Antenna Type:PCB
Antenna Termination Type:MHF, MHF1, U.FL, UMCC
Application:Bluetooth, Wi-Fi
Band Type:Triple Band
Center Frequency:2725 MHz, 5537.5 MHz, 6900 MHz
Directionality:Omnidirectional
Frequency Range:2650 - 2800 MHz, 5200 - 5875 MHz, 6000 - 7800 MHz
Gain:5 dB
SKU:AMP2108857-1

Detailed Description

Stay connected with our Triple Band PCB Antenna, designed for seamless Wi-Fi performance across multiple frequencies. This internal/embedded mount adhesive antenna offers omnidirectional coverage with a 5 dB gain, ensuring reliable signal transmission. Compatible with MHF, MHF1, U.FL, and UMCC antenna terminations, it supports Bluetooth, ZigBee, and various 802.11 protocols. Operating at 2650-2800 MHz, 5200-5875 MHz, and 6000-7800 MHz, it guarantees optimal performance in diverse wireless applications. With a VSWR of 2.1:1 and 50 Ω impedance, this antenna delivers efficient connectivity while its linear polarization enhances signal strength. Ideal for Bluetooth and Wi-Fi applications, this antenna is a must-have for any wireless communication setup.
