2108857-6

AMP2108857_6
Heilind Number:AMP2108857-6
Manufacturer:TE Connectivity
Manufacturer Number:2108857-6
Datasheet:Product Specification
ECAD Model:
3D Model

Description:

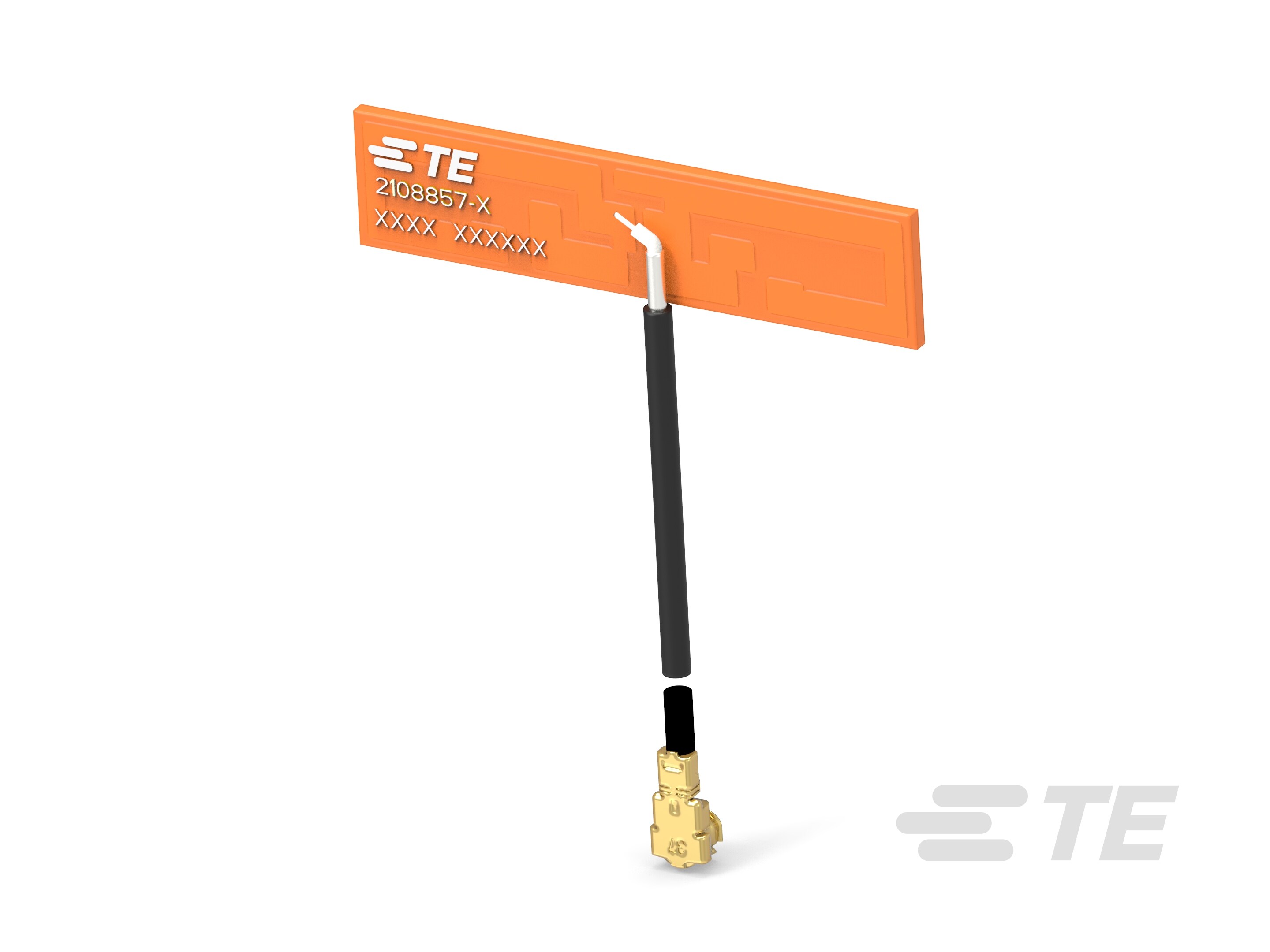

PCB Antenna, Triple Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF4, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2108857-6
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Mounting Style:Adhesive
VSWR:2:1
Antenna Type:PCB
Antenna Termination Type:MHF4
Application:Bluetooth, Wi-Fi
Band Type:Triple Band
Center Frequency:2725 MHz, 5537.5 MHz, 6900 MHz
Directionality:Omnidirectional
Frequency Range:2650 - 2800 MHz, 5200 - 5875 MHz, 6000 - 7800 MHz
Gain:4.9 dB
SKU:AMP2108857-6

Detailed Description

Stay connected with seamless wireless communication using this RoHS-compliant PCB Antenna. With a gain of 4.9 dB and a VSWR of 2:1, it ensures optimal signal strength in the 2650-2800 MHz, 5200-5875 MHz, and 6000-7800 MHz frequency bands. Designed for ZigBee, Bluetooth, and various Wi-Fi standards including 802.11a/ac/ad/ax/b/g/n, this triple-band antenna guarantees versatile performance. Its compact form, with a linear polarization and omnidirectional directionality, allows for easy integration on PCBs using adhesive mounting. The MHF4 termination further enhances its efficiency, making it ideal for Bluetooth and Wi-Fi applications. With a single port and a gain range of 3-6 dBi, it offers reliable connectivity for a wide range of devices. Explore the possibilities of wireless technology with this high-performance internal/embedded antenna.
