2108937-2

AMP2108937_2
Heilind Number:AMP2108937-2
Manufacturer:TE Connectivity
Manufacturer Number:2108937-2
Datasheet:Product Specification
ECAD Model:
3D Model

Description:

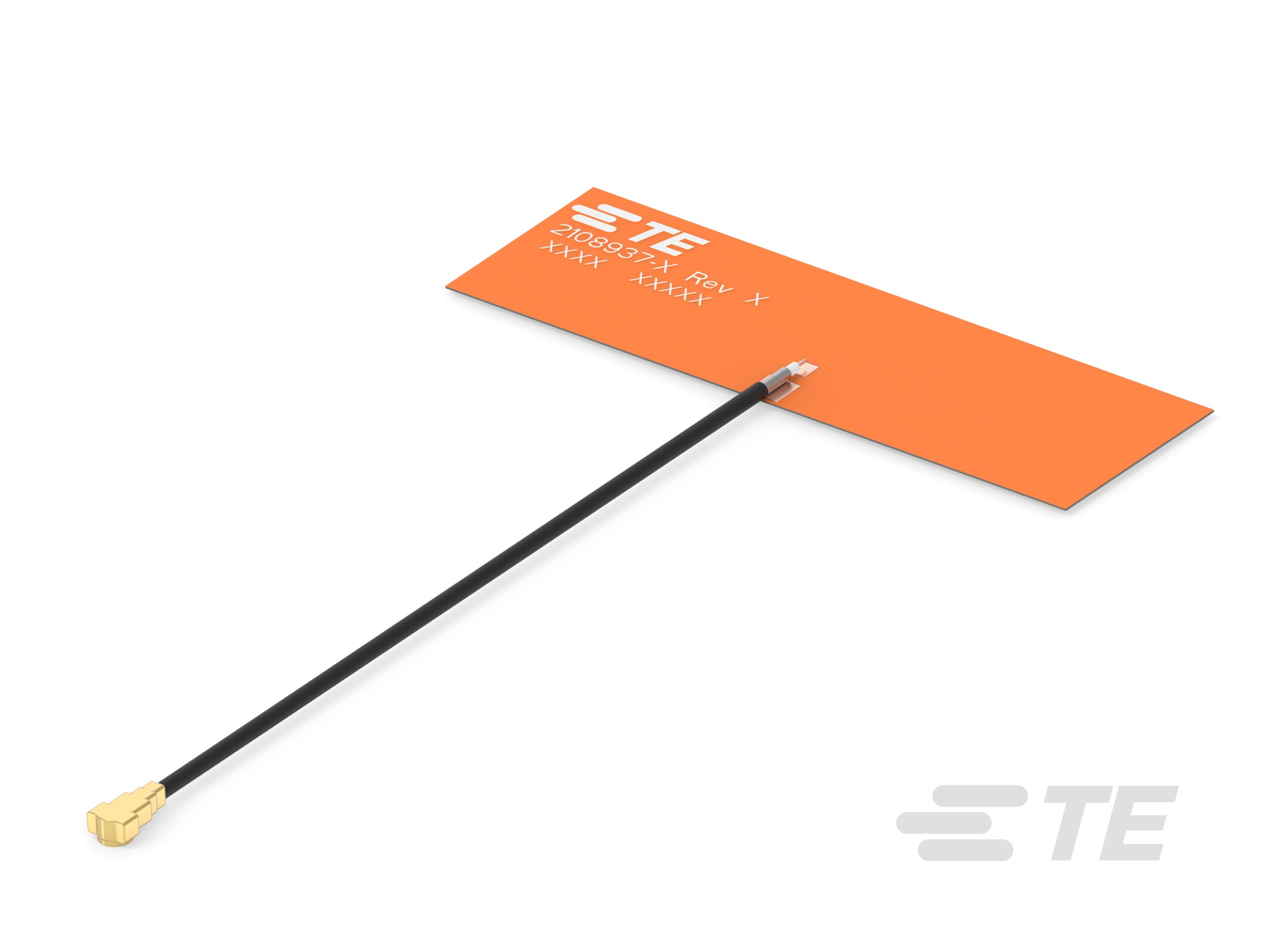

Flexible PCB (FPC) Antenna, Quad Band, GNSS / Wi-Fi, Internal/Embedded Mount, Adhesive, MHF / MHF1 / U.FL, Omnidirectional, Single Port

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2108937-2
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Mounting Style:Adhesive
VSWR:1.8:1
Antenna Type:Flexible PCB
Antenna Termination Type:MHF, MHF1, U.FL, UMCC
Application:GNSS, Wi-Fi, Zigbee
Band Type:Quad Band
Center Frequency:1584.5 MHz, 2450 MHz, 5512.5 MHz, 6525 MHz
Directionality:Omnidirectional
Frequency Range:1559 - 1610 MHz, 2400 - 2500 MHz, 5150 - 5875 MHz, 5925 - 7125 MHz
Gain:4.2 dB
SKU:AMP2108937-2

Detailed Description

Enhance connectivity with this RoHS-compliant Flexible PCB Antenna, designed for seamless integration into a range of devices. Boasting a 4.2 dB gain and a VSWR of 1.8:1, it ensures efficient signal transmission across the ZigBee, Bluetooth, and various 802.11 standards. Operating in Quad Band frequencies with a linear polarization and omnidirectional directionality, it offers versatility for GNSS, Wi-Fi, and Zigbee applications. The adhesive mounting and compact form factor make it ideal for internal/embedded installations. With multiple antenna termination options, including MHF, MHF1, U.FL, and UMCC, it caters to diverse connectivity needs. Experience reliable performance and seamless communication with this high-quality antenna.
