| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 2108965-4 |
| Impedance: | 50 Ω |
| Polarization: | Linear |
| Protocol: | UWB |
| Mounting Style: | Adhesive |
| VSWR: | 2:1 |
| Antenna Type: | Flexible PCB |
| Antenna Termination Type: | MHF, MHF1, U.FL, UMCC |
| Application: | UWB |
| Band Type: | Wide Band |
| Center Frequency: | 7200 MHz |
| Directionality: | Omnidirectional |
| Frequency Range: | 5900 - 8500 MHz |
| Gain: | 3.4 dB |
| SKU: | AMP2108965-4 |
2108965-4
| Heilind Number: | AMP2108965-4 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 2108965-4 |
| Datasheet: | 3D Model (STP) |
| ECAD Model: | |
Description:

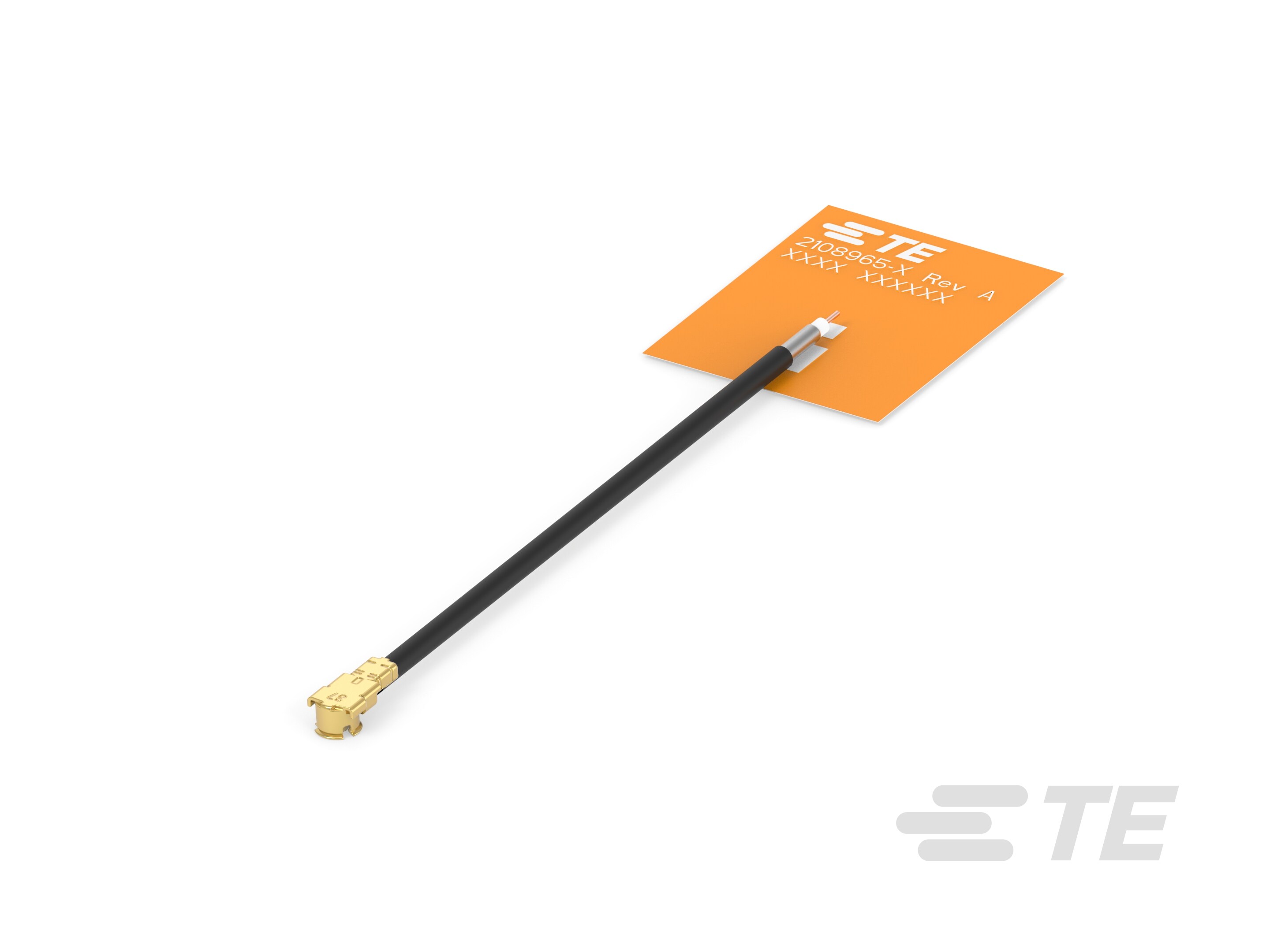

Flexible PCB (FPC) Antenna, Wide Band, UWB, Internal/Embedded Mount, Adhesive, UMCC / MHF / MHF1, Omnidirectional, Gain 3 < 6 dBi
More >>Specifications
Detailed Description
Enhance your UWB connectivity with this high-performance Flexible PCB Antenna. With a gain of 3.4 dB and a VSWR of 2:1, it ensures reliable signal transmission in the 5900-8500 MHz frequency range, with a center frequency of 7200 MHz. Designed for internal/embedded mounting, its adhesive backing allows for easy installation. Featuring a 50 Ω impedance, linear polarization, and omnidirectional directionality, it offers versatile use in various applications. Compatible with MHF, MHF1, U.FL, and UMCC connectors, it guarantees seamless integration into your system for optimal performance. Perfect for UWB communication, this antenna is a must-have for any high-speed data transmission setup.
For Use With
| Product | Part # | Description | Stock |
|---|---|---|---|
 | TE Connectivity 2337019-1 |  |
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
