2108965-7

AMP2108965_7
Heilind Number:AMP2108965-7
Manufacturer:TE Connectivity
Manufacturer Number:2108965-7
Datasheet:Product Specification
ECAD Model:
3D Model

Description:

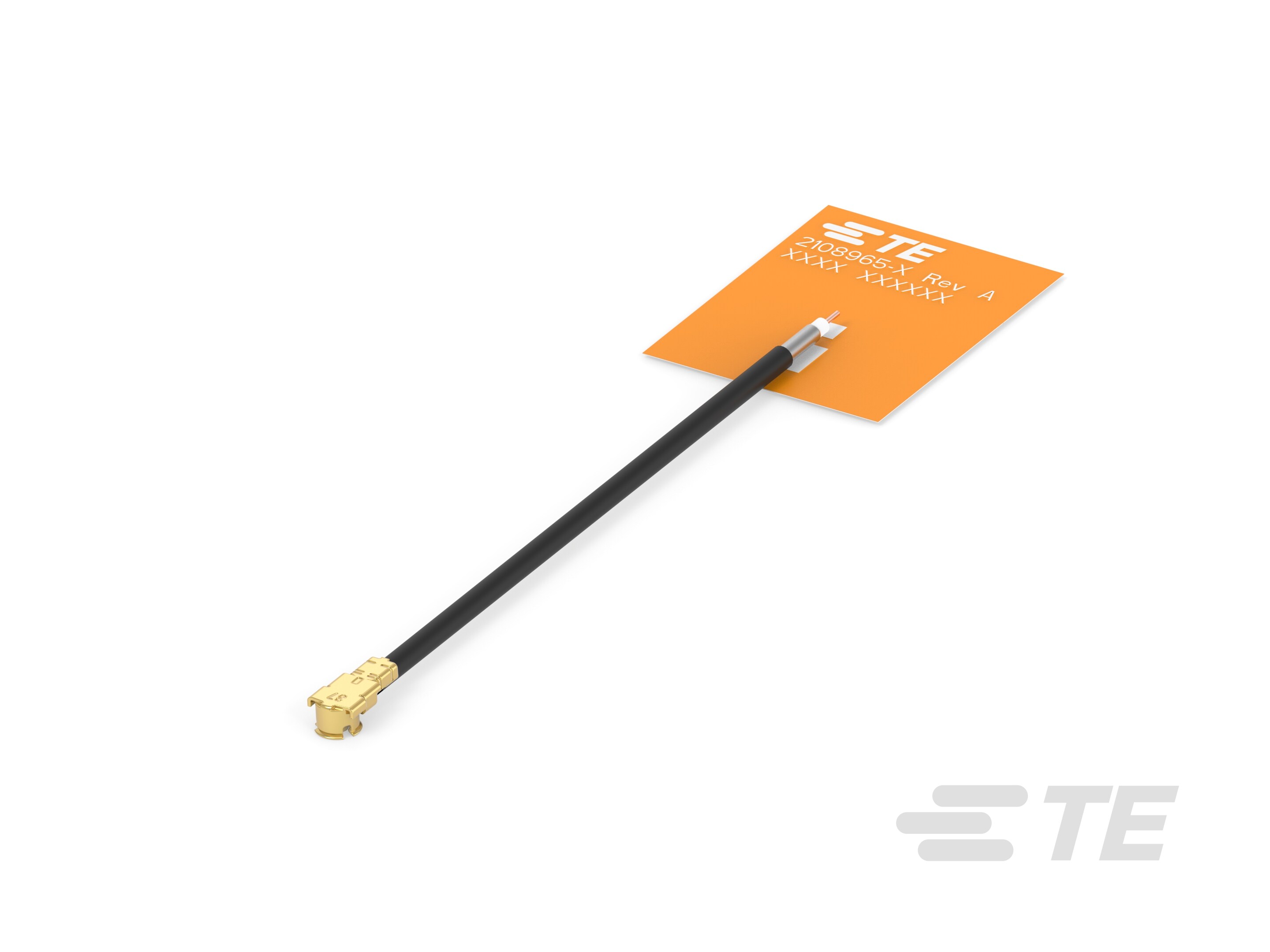

Flexible PCB (FPC) Antenna, Wide Band, UWB, Internal/Embedded Mount, Adhesive, MHF4, Omnidirectional, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2108965-7
Impedance:50 Ω
Polarization:Linear
Protocol:UWB
Mounting Style:Adhesive
VSWR:1.8:1
Antenna Type:Flexible PCB
Antenna Termination Type:MHF4
Application:UWB
Band Type:Wide Band
Center Frequency:7200 MHz
Directionality:Omnidirectional
Frequency Range:5900 - 8500 MHz
Gain:3.5 dB
SKU:AMP2108965-7

Detailed Description

Enhance your wireless connectivity with this high-performance Flexible PCB Antenna. Designed for wide band UWB applications, this internal/embedded mount adhesive antenna boasts a gain of 3.5 dB and a VSWR of 1.8:1, ensuring optimal signal strength and efficiency. Operating within the frequency range of 5900-8500 MHz with a center frequency of 7200 MHz, it guarantees reliable performance for various communication needs. Its omni-directional linear polarization and impedance of 50 Ω make it suitable for a wide range of applications. The MHF4 termination offers easy integration, while the flexible PCB design allows for versatile installation. Ideal for UWB applications, this antenna is a must-have for any setup requiring robust and efficient wireless connectivity.
