| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 2108971-6 |
| Impedance: | 50 Ω |
| Polarization: | Linear |
| Protocol: | UWB |
| Mounting Style: | Adhesive |
| VSWR: | 2.1:1 |
| Antenna Type: | Flexible PCB |
| Antenna Termination Type: | MHF4 |
| Application: | UWB |
| Band Type: | Wide Band |
| Center Frequency: | 4050 MHz, 7200 MHz |
| Directionality: | Omnidirectional |
| Frequency Range: | 3100 - 5000 MHz, 5900 - 8500 MHz |
| Gain: | 3.9 dB |
| SKU: | AMP2108971-6 |
2108971-6
| Heilind Number: | AMP2108971-6 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 2108971-6 |
| Datasheet: | Material Declaration (XLSX) |
| ECAD Model: | |
Description:

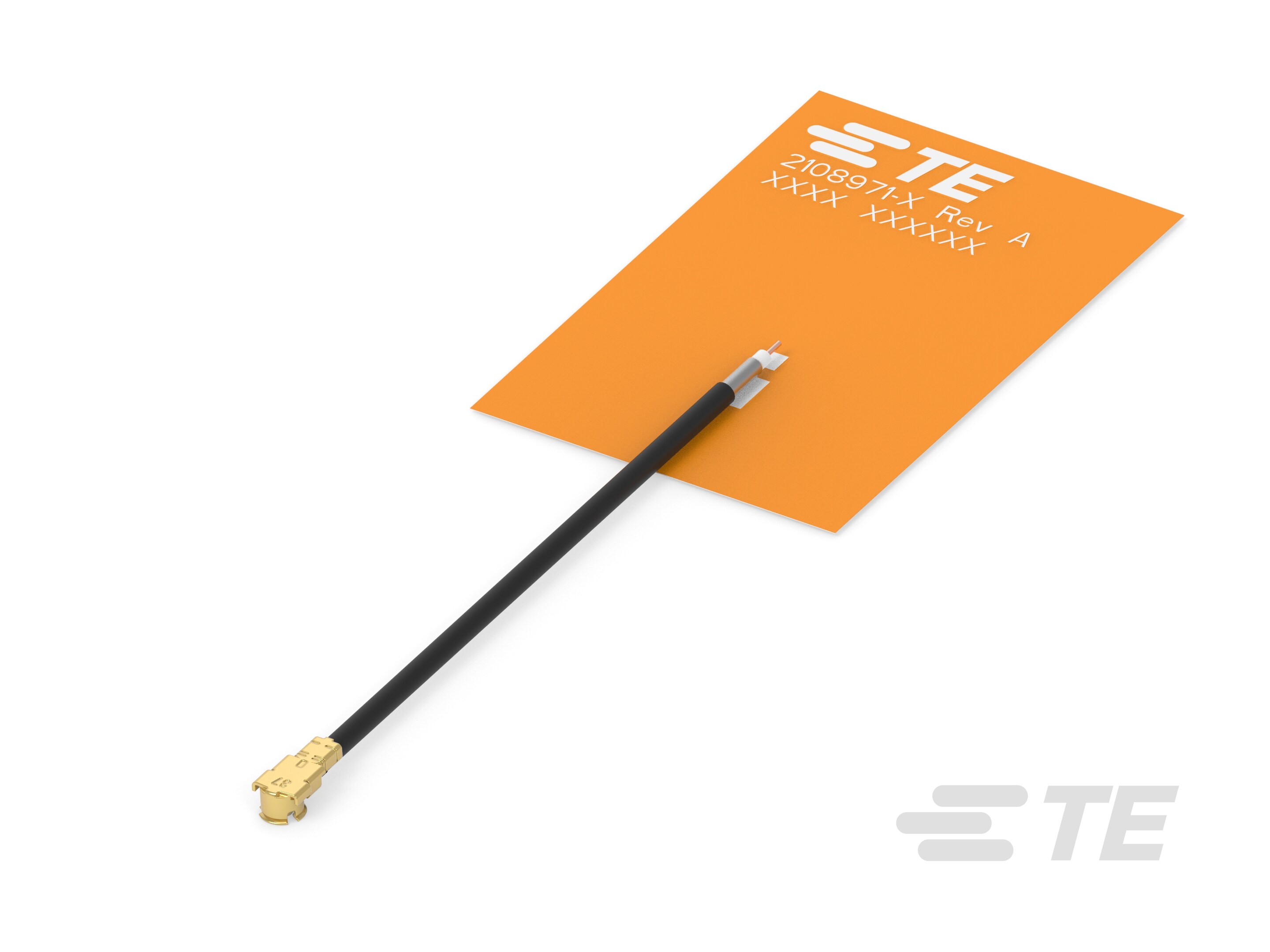

Flexible PCB (FPC) Antenna, Wide Band, UWB, Internal/Embedded Mount, Adhesive, MHF4, Omnidirectional, Gain 3 < 6 dBi
More >>Specifications
Detailed Description
Enhance your UWB connectivity with this high-performance Flexible PCB (FPC) Antenna. Designed for internal/embedded mounting, its adhesive backing ensures easy installation. Operating in the Wide Band frequency range of 3100 - 5000 MHz and 5900 - 8500 MHz, this antenna offers omnidirectional coverage with a gain of 3.9 dB. With a VSWR of 2.1:1, it guarantees efficient signal transmission. Constructed with a linear polarization and impedance of 50 Ω, it is ideal for various UWB applications. The center frequencies of 4050 MHz and 7200 MHz make it suitable for diverse communication needs. Featuring an MHF4 termination, it provides seamless connectivity. Upgrade your antenna system with this versatile solution.
For Use With
| Product | Part # | Description | Stock |
|---|---|---|---|
 | TE Connectivity 2334884-1 |  |
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
