2118016-2

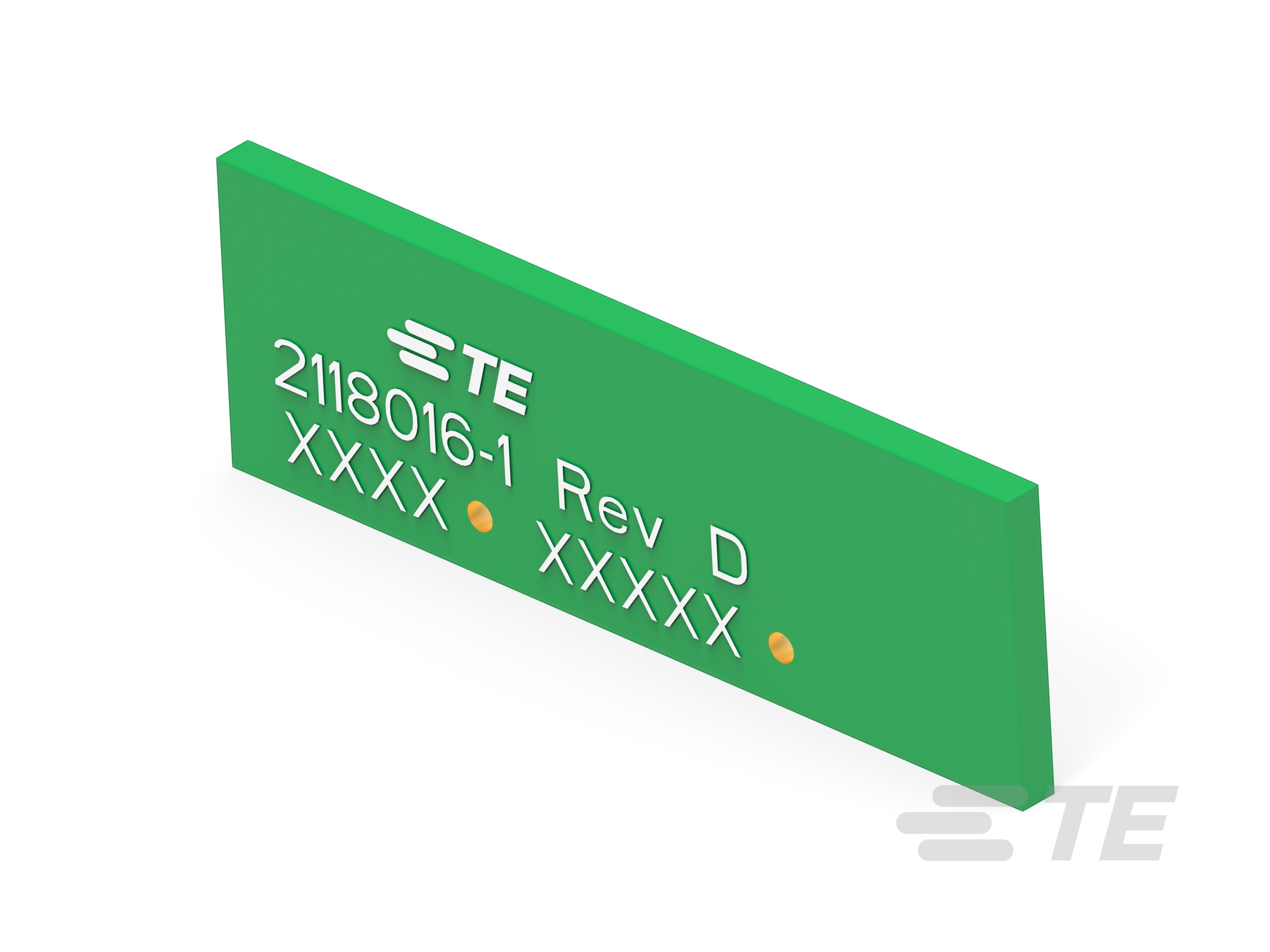

AMP2118016_2
Heilind Number:AMP2118016-2
Manufacturer:TE Connectivity
Manufacturer Number:2118016-2
Datasheet:3D Model (STP)
ECAD Model:
3D Model

Description:

Chip Antenna, Dual Band, Bluetooth / Wi-Fi, Internal/Embedded Mount, Surface Mount, Omnidirectional, Single Port, Gain 0 < 3 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2118016-2
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Mounting Style:Surface Mount
VSWR:3:1
Antenna Type:Chip, PCB
Application:Bluetooth, Wi-Fi
Band Type:Dual Band
Center Frequency:2441.75 MHz, 5512.5 MHz
Directionality:Omnidirectional
Frequency Range:2400 - 2483.5 MHz, 5150 - 5875 MHz
Gain:2 dB
SKU:AMP2118016-2

Detailed Description

Enhance your wireless connectivity with this dual-band chip antenna, designed for seamless integration into Bluetooth and Wi-Fi devices. Featuring internal/embedded mounting capabilities, this omnidirectional antenna offers a gain of up to 2 dB, ensuring reliable signal transmission. With a compact surface mount design, it is ideal for space-constrained applications. RoHS compliant and offering a low VSWR of 3:1, this antenna is suitable for a range of protocols including ZigBee, Bluetooth, and various 802.11 standards. Operating in the 2.4 GHz and 5 GHz frequency bands, it covers a wide spectrum for efficient data transmission. Perfect for Bluetooth and Wi-Fi applications, this antenna is a versatile and high-performance solution for your connectivity needs.
