2118060-1

AMP2118060_1
Heilind Number:AMP2118060-1
Manufacturer:TE Connectivity
Manufacturer Number:2118060-1
Datasheet:2D Model (DXF)
ECAD Model:
3D Model

Description:

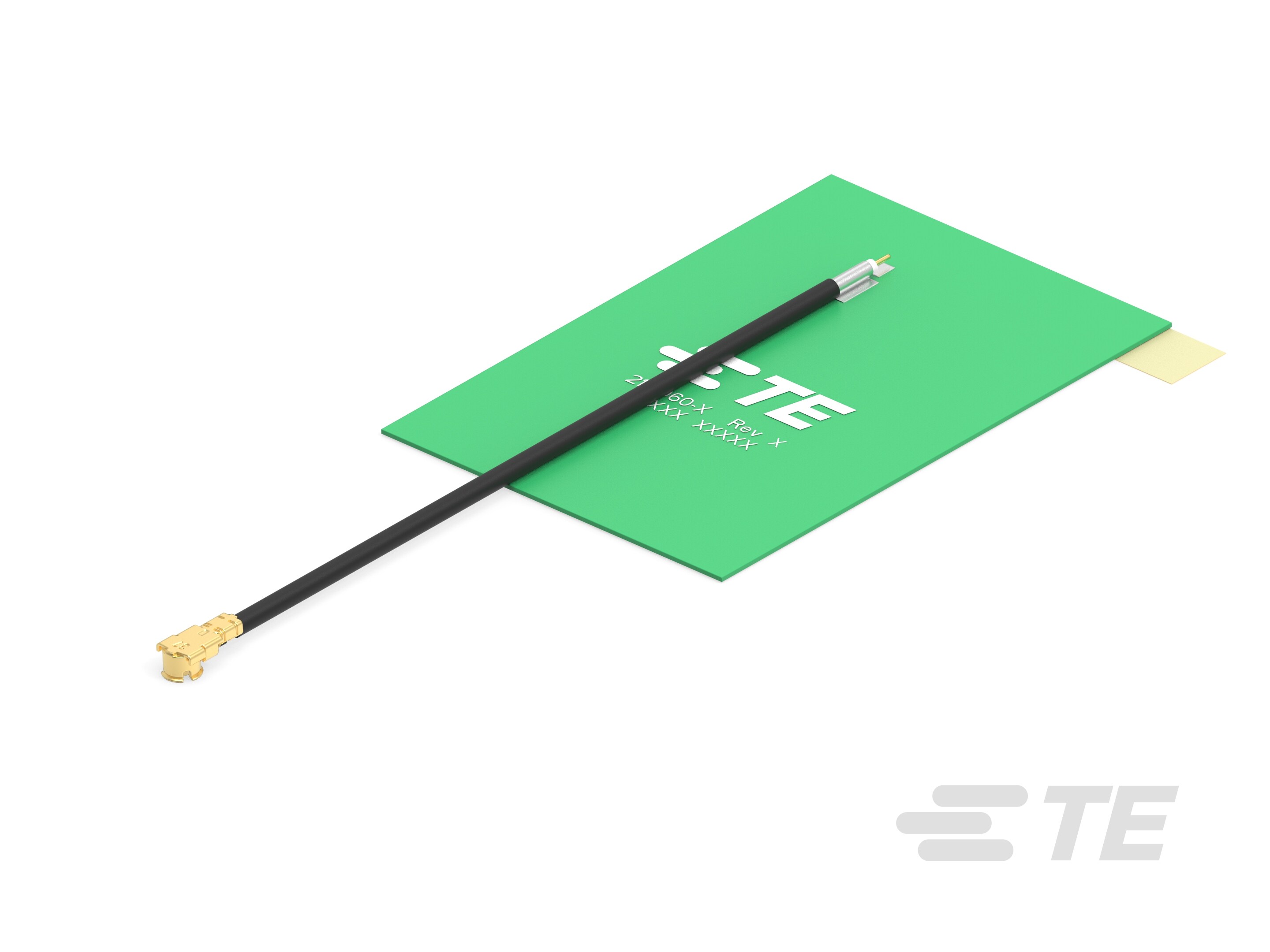

PCB Antenna, Dual Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF / MHF1 / U.FL, Omnidirectional, Single Port, Gain 0 < 3 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2118060-1
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11b, 802.11g, 802.11n, Bluetooth, WiMAX, ZigBee
Mounting Style:Adhesive
VSWR:3:1
Antenna Type:PCB, Thin PCB
Antenna Termination Type:MHF, MHF1, U.FL, UMCC
Application:Bluetooth, Wi-Fi
Band Type:Dual Band
Center Frequency:3050 MHz, 5512.5 MHz
Directionality:Omnidirectional
Frequency Range:2300 - 3800 MHz, 5150 - 5875 MHz
Gain:2 dB
SKU:AMP2118060-1

Detailed Description

Stay connected seamlessly with our RoHS compliant dual-band PCB antenna, perfect for ZigBee, Bluetooth, WiMAX, and various 802.11 protocols. Designed for internal/embedded mounting with adhesive support, this antenna operates at frequencies ranging from 2300 to 3800 MHz and 5150 to 5875 MHz. With a 2 dB gain and 3:1 VSWR, it ensures efficient signal transmission. The linearly polarized, omnidirectional design, with a 50 Ω impedance, guarantees reliable performance. Compatible with MHF, MHF1, U.FL, and UMCC terminations, this antenna suits Bluetooth, Wi-Fi, and other applications, making it a versatile choice for your connectivity needs.
