| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 2118060-3 |
| Impedance: | 50 Ω |
| Polarization: | Linear |
| Protocol: | 802.11a, 802.11b, 802.11g, 802.11n, Bluetooth, WiMAX, ZigBee |
| Mounting Style: | Adhesive |
| VSWR: | 3:1 |
| Antenna Type: | PCB, Thin PCB |
| Antenna Termination Type: | MHF, MHF1, U.FL, UMCC |
| Application: | Bluetooth, Wi-Fi |
| Band Type: | Dual Band |
| Directionality: | Omnidirectional |
| Gain: | 2 dB |
| SKU: | AMP2118060-3 |
2118060-3
| Heilind Number: | AMP2118060-3 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 2118060-3 |
| Datasheet: | 3D Model (PDF) |
| ECAD Model: | |
Description:

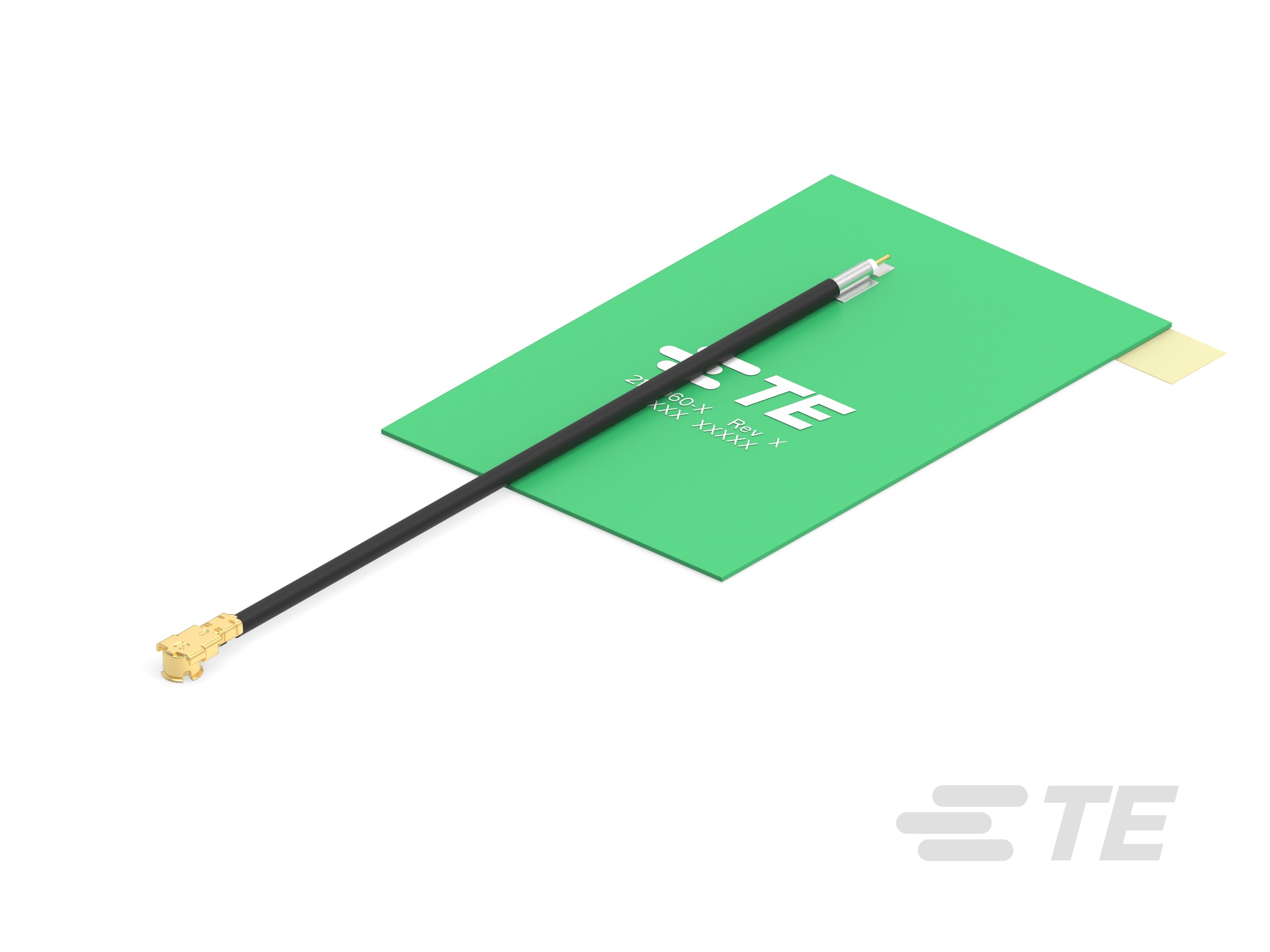

PCB Antenna, Dual Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF / MHF1 / U.FL, Omnidirectional, Single Port, Gain 0 < 3 dBi
More >>Specifications
Detailed Description
Ensure reliable wireless connectivity with this Dual Band PCB Antenna, suitable for a range of protocols including ZigBee, Bluetooth, WiMAX, and various 802.11 standards. With a 2 dB gain and 3:1 VSWR, it offers efficient signal transmission and reception. Designed for internal/embedded mounting with adhesive, it features a linear polarization and omnidirectional directionality, making it ideal for applications requiring wide coverage. With an impedance of 50 Ω and compatibility with MHF, MHF1, U.FL, and UMCC antenna terminations, it provides versatility for connectivity needs. Perfect for Bluetooth and Wi-Fi applications, this antenna is a reliable choice for achieving optimal wireless performance.
For Use With
| Product | Part # | Description | Stock |
|---|---|---|---|
 | TE Connectivity 2337019-1 |  |
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
