MS3456L22-1PX

AMP2118308_4
Heilind Number:AMP2118308-4
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Number:MS3456L22-1PX
Datasheet:2D Model (DXF)
ECAD Model:
3D Model

Description:

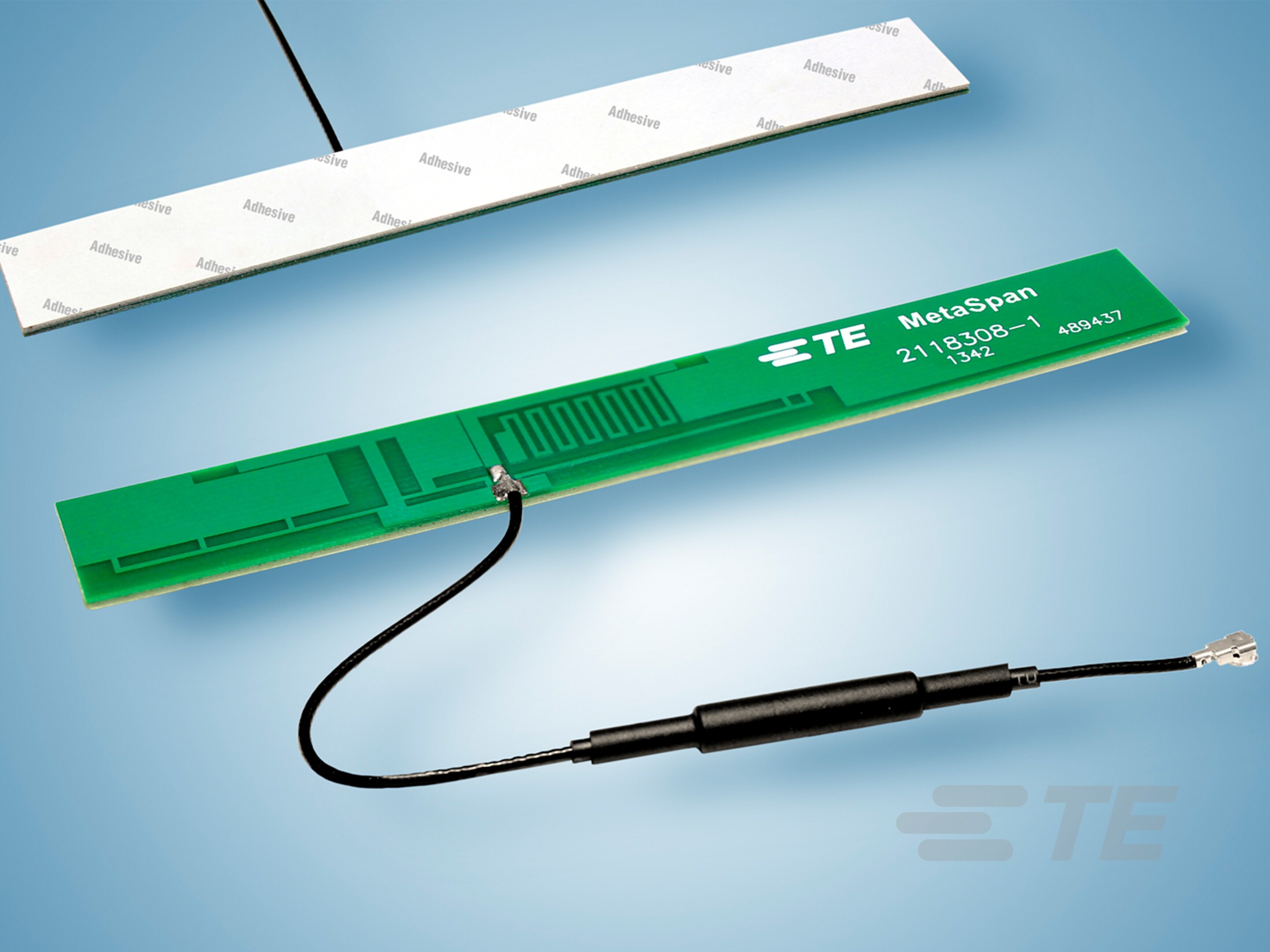

PCB Antenna, Multi Band, Cat-M/NB-IoT / Cellular / Wi-Fi, Internal/Embedded Mount, Adhesive, MHF / MHF1 / U.FL, Omnidirectional, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Part Number:Aero-Electric Connector | Conesys MS3456L22-1PX
Impedance:50 Ω
Polarization:Linear
Protocol:EU Triband, LTE, UMTS, US Dual Band, WCDMA
Mounting Style:Adhesive
VSWR:3:1
Antenna Type:PCB
Antenna Termination Type:MHF, MHF1, U.FL, UMCC
Application:Bluetooth, Cat-M/NB-IoT, Cellular, Wi-Fi
Band Type:Multi Band
Directionality:Omnidirectional
Gain:3.9 dB
SKU:AMP2118308-4

Detailed Description

This RoHS-compliant PCB antenna offers seamless connectivity across LTE, UMTS, EU Triband, and US Dual Band frequencies, making it a versatile choice for wireless communication. With a gain of 3.9 dB and a VSWR of 3:1, it ensures reliable signal strength and efficiency. Designed for multi-band applications, including Cat-M/NB-IoT, Cellular, and Wi-Fi, it features an omnidirectional, linear polarization for consistent performance. Mountable via adhesive, it boasts compatibility with MHF, MHF1, U.FL, and UMCC antenna terminations. Ideal for internal/embedded use, it delivers seamless connectivity in a compact form factor, making it suitable for a wide range of applications.
