| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 2118899-3 |
| Impedance: | 50 Ω |
| Polarization: | Linear |
| Mounting Style: | Connector |
| VSWR: | 2:1 |
| Antenna Type: | PCB |
| Antenna Termination Type: | MHF, MHF1, U.FL, UMCC |
| Application: | Bluetooth, Wi-Fi |
| Band Type: | Dual Band |
| Center Frequency: | 2442.5 MHz, 5512.5 MHz |
| Directionality: | Omnidirectional |
| Frequency Range: | 2400 - 2485 MHz, 5150 - 5875 MHz |
| Gain: | 14 dB |
| SKU: | AMP2118899-3 |
2118899-3
| Heilind Number: | AMP2118899-3 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 2118899-3 |
| Datasheet: | Material Declaration (XLSX) |
| ECAD Model: | |
Description:

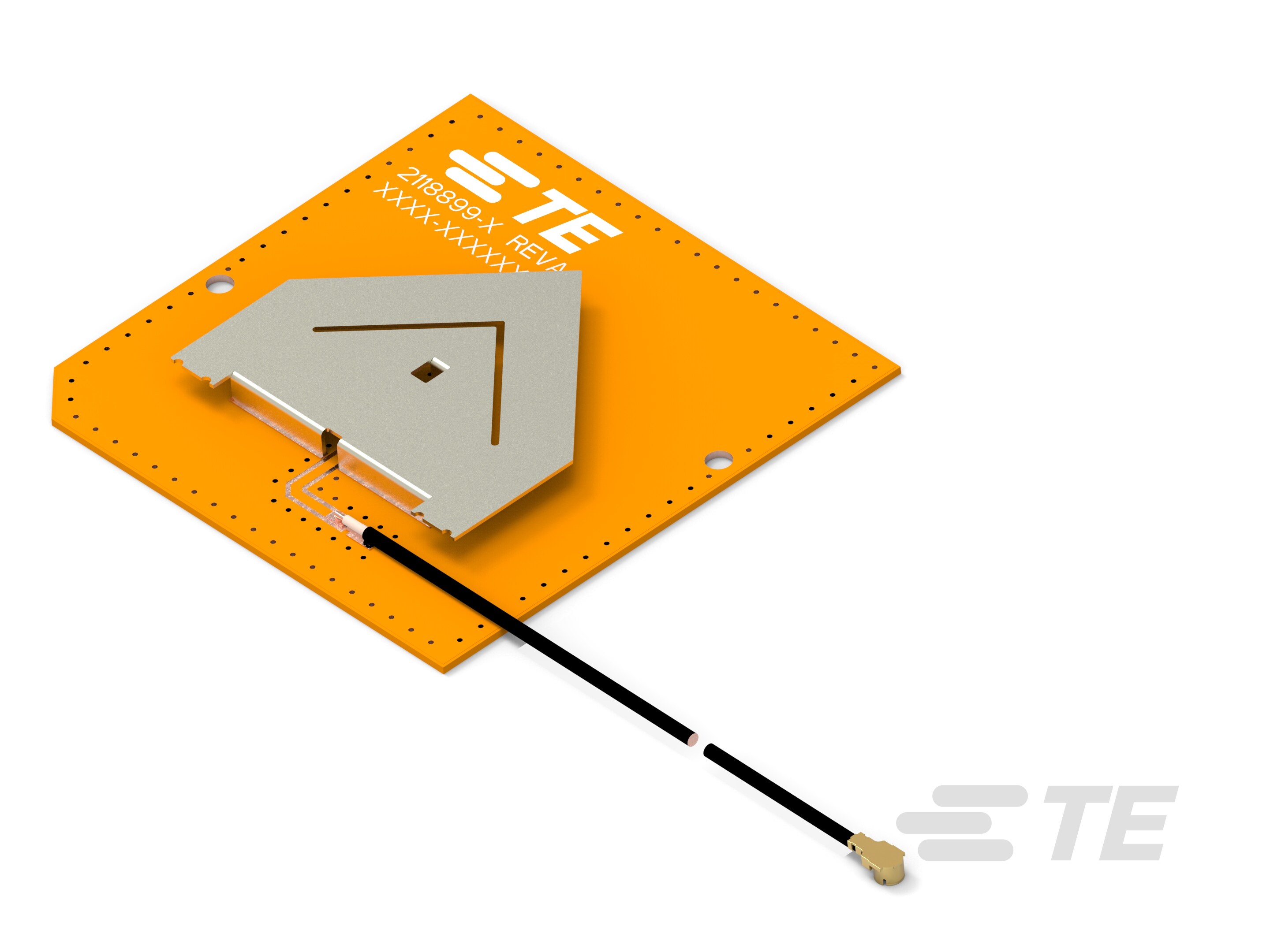

PCB Antenna, Dual Band, Wi-Fi, Internal/Embedded Mount, Connector, MHF / MHF1 / U.FL, Omnidirectional, Single Port, Gain > 6 dBi
More >>Specifications
Detailed Description
Enhance your connectivity with this Dual Band PCB Antenna, designed for optimal performance in Wi-Fi and Bluetooth applications. Offering a gain of 14 dB, it ensures strong signal reception, while its linear polarization and omnidirectional directionality guarantee seamless coverage. With a VSWR of 2:1 and impedance of 50 Ω, this antenna operates efficiently within the 2400 - 2485 MHz and 5150 - 5875 MHz frequency ranges. Perfect for internal/embedded mounting, it features a connector termination option, compatible with MHF, MHF1, U.FL, and UMCC connectors. Whether for personal or professional use, this antenna is a reliable choice for achieving superior wireless connectivity.
For Use With
| Product | Part # | Description | Stock |
|---|---|---|---|
 | TE Connectivity 2334884-1 |  |
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
