2118907-3

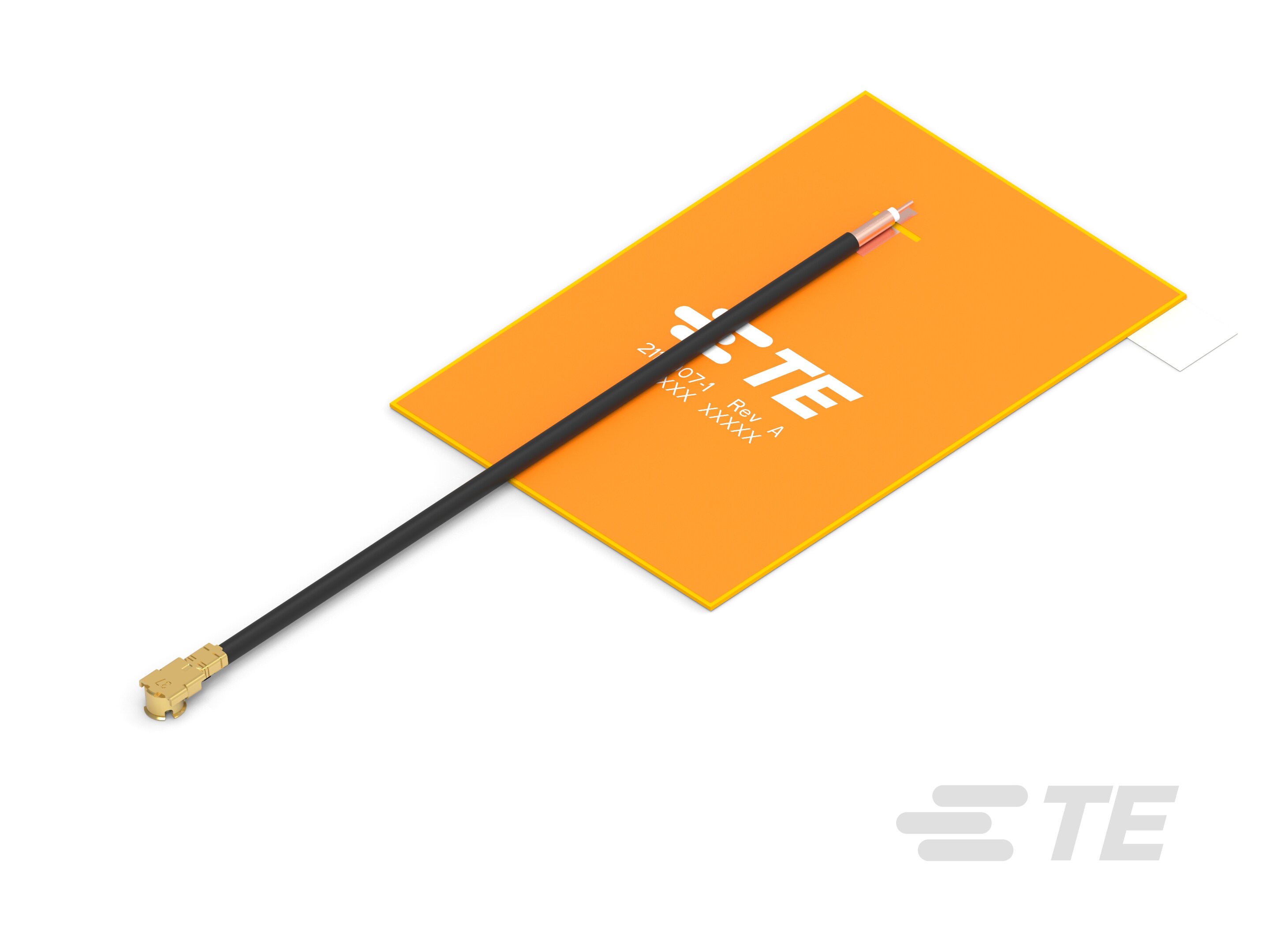

AMP2118907_3
Heilind Number:AMP2118907-3
Manufacturer:TE Connectivity
Manufacturer Number:2118907-3
Datasheet:Product Specification
ECAD Model:
3D Model

Description:

PCB Antenna, Triple Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF / MHF1 / U.FL, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2118907-3
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Mounting Style:Adhesive
VSWR:2:1
Antenna Type:PCB
Antenna Termination Type:MHF, MHF1, U.FL, UMCC
Application:Bluetooth, Wi-Fi
Band Type:Triple Band
Center Frequency:3135 MHz, 5512.5 MHz, 6525 MHz
Directionality:Omnidirectional
Frequency Range:2310 - 3960 MHz, 5150 - 5875 MHz, 5925 - 7125 MHz
Gain:4.2 dB
SKU:AMP2118907-3

Detailed Description

Enhance your wireless connectivity with this RoHS-compliant triple band PCB antenna, delivering a gain of 4.2 dB and VSWR of 2:1. Designed for ZigBee, Bluetooth, and various 802.11 protocols, it operates across a wide frequency range from 2310 to 7125 MHz. With an impedance of 50 Ω and linear polarization, this omnidirectional antenna ensures reliable performance. Featuring an adhesive mount and compatibility with MHF, MHF1, U.FL, and UMCC terminations, it is ideal for internal/embedded applications in Bluetooth, Wi-Fi, and other wireless systems. Subtle yet powerful, it offers a gain between 3 and 6 dBi, making it a versatile choice for optimizing signal strength.
