2118907-7

AMP2118907_7
Heilind Number:AMP2118907-7
Manufacturer:TE Connectivity
Manufacturer Number:2118907-7
Datasheet:3D Model (PDF)
ECAD Model:
3D Model

Description:

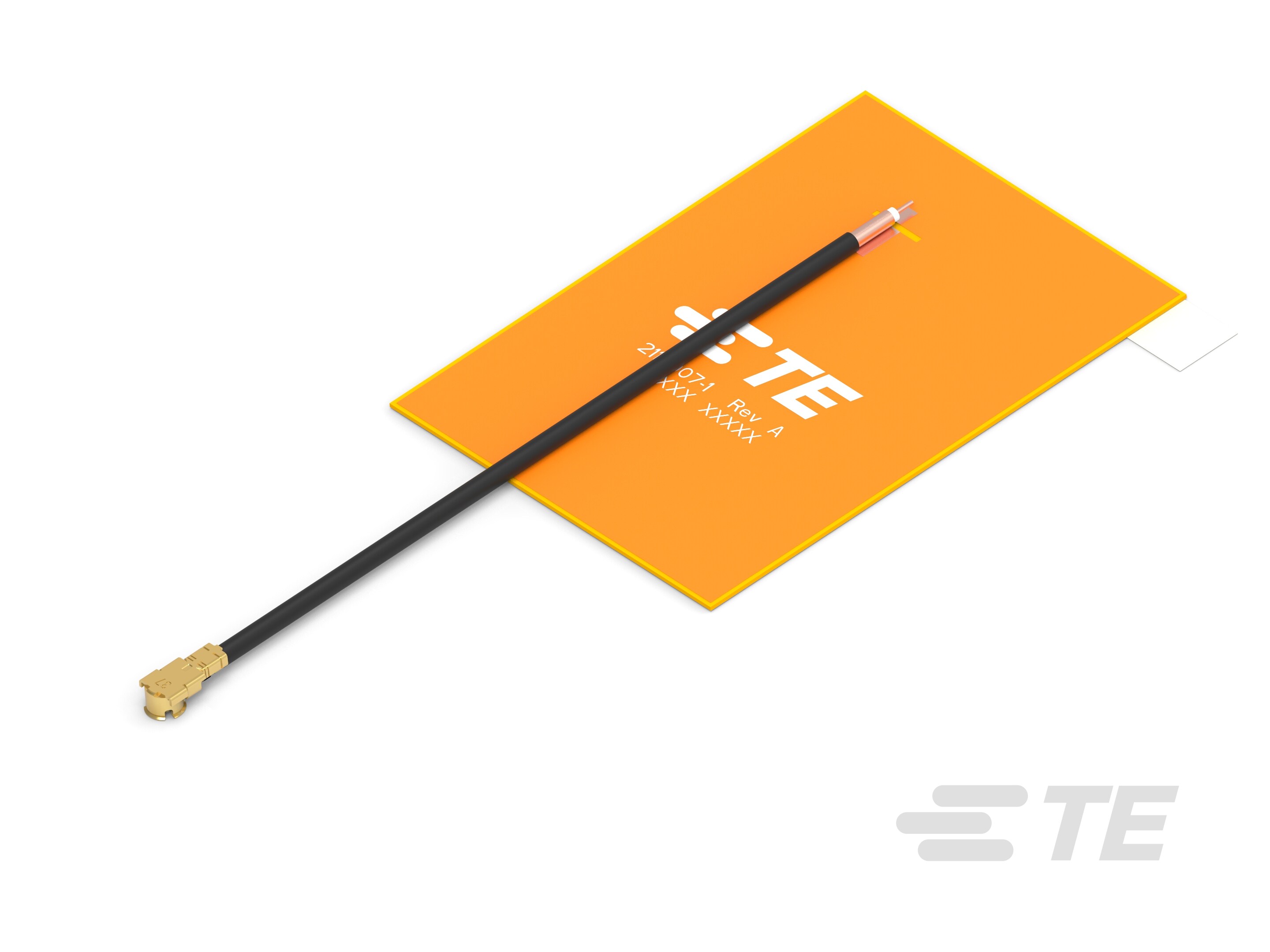

PCB Antenna, Triple Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF4, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2118907-7
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Mounting Style:Adhesive
VSWR:2:1
Antenna Type:PCB
Antenna Termination Type:MHF4
Application:Bluetooth, Wi-Fi
Band Type:Triple Band
Center Frequency:2960 MHz, 5512.5 MHz, 6525 MHz
Directionality:Omnidirectional
Frequency Range:2380 - 3540 MHz, 5150 - 5875 MHz, 5925 - 7125 MHz
Gain:3.8 dB
SKU:AMP2118907-7

Detailed Description

Stay connected with our Triple Band PCB Antenna, designed for seamless integration in your devices. Operating across a wide frequency range of 2380-3540 MHz, 5150-5875 MHz, and 5925-7125 MHz, it ensures reliable performance for ZigBee, Bluetooth, and various 802.11 standards including a, ac, ad, ax, b, g, and n. With a gain of 3.8 dB and VSWR of 2:1, this omnidirectional antenna provides efficient signal transmission. Its compact internal/embedded mount with adhesive backing and MHF4 termination makes installation a breeze. Perfect for Bluetooth and Wi-Fi applications, it offers a polarization of linear and impedance of 50 Ω. Whether you're designing for IoT devices, smart home systems, or industrial applications, this antenna guarantees optimal connectivity.
