213977-9

AMP213977-9
Heilind Number:AMP213977-9
Manufacturer:TE Connectivity
Manufacturer Number:213977-9
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

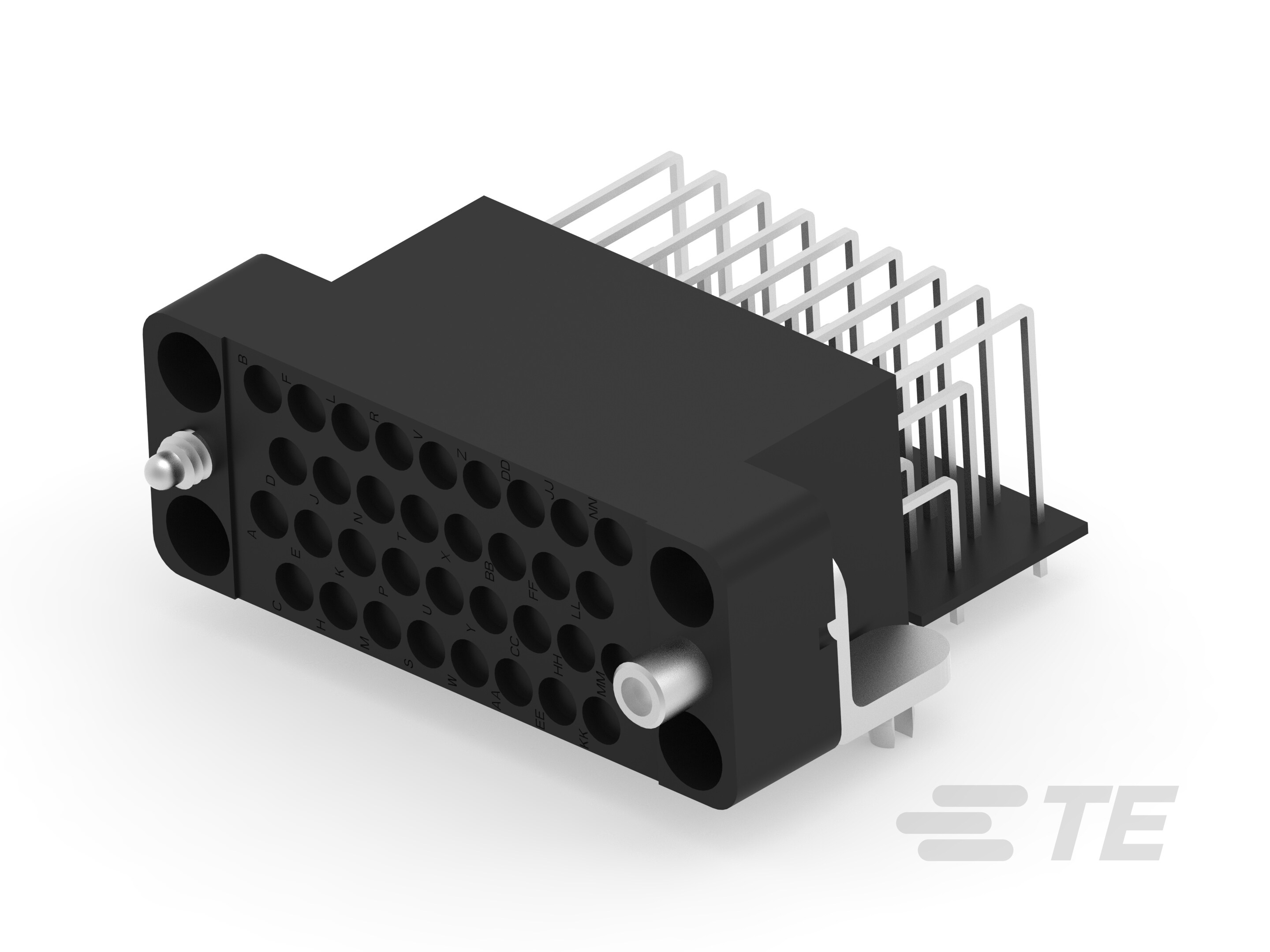

V.35 R/A SKT ASY,W/BDLK LF

More >>

Specifications

AttributeValue
Product Category:
Connectors Power Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 213977-9
Series:AMP-METRIMATE
Housing Material:Polyester - GF
Termination Method:Solder, Through Hole - Solder
Contact Type:Socket, Tab
Strain Relief:No Strain Relief
Package Quantity:12
Number of Positions:34
Housing Color:Black
Mount Orientation:Right Angle
GPL:231
Mating Retention Type:Jackscrews - Fixed
Packaging:Box & Tray, Tray
Operating Temperature Range:-55 - 130 °C, -67 - 266 °F
Circuit Application:Signal
Contact Mating Area Plating:Gold
Panel Mount:Without
Shielded:No
PCB Retention:With
Contact Termination Plating Thickness:100 µin, 2.540 µm
Connector Height:23.24 mm, .915 in
PCB Retention Type:Boardlock
Sealable:No
Mating Alignment:With
Mating Alignment Type:Guide Hole
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:4883
Connector Length:2 in, 50.8 mm
Screw Hole Thread Size:6-32 UNC-2A, 6-32 UNC-2B
Connector System:Cable-to-Board
Contact Termination Plating:Tin
Connector Product Type:Connector Assembly
ECCN:EAR99
Connector Width:19.05 mm, .75 in
Mating Retention:With
PCB Mount Alignment:Without
Termination Post Tail Length:.12 in, 3.05 mm
Position Locations Loaded:Fully Loaded
Contact Retention:With
Contact Retention Type:Locking Spring
Connector and Housing Type:Receptacle
Standards Met:CSA UL
Material Flammability Standard:UL 94V-0
Part Aliases:213977-9
SKU:AMP213977-9

Detailed Description

Easily connect power and signal cables with this V.35 right angle socket assembly, complete with boardlock for secure installation. Designed for industrial use, the black polyester housing meets UL 94V-0 flammability standards. With 34 gold-plated contacts, this connector ensures reliable conductivity in temperatures ranging from -55 to 130°C. Featuring jackscrews for mating retention, it offers stability in high-vibration environments. The solder termination method and 6-32 UNC-2B screw holes facilitate easy installation on printed circuit boards. Perfect for cable-to-board applications, this assembly guarantees a secure and durable connection for your electronic devices while complying with RoHS regulations.
