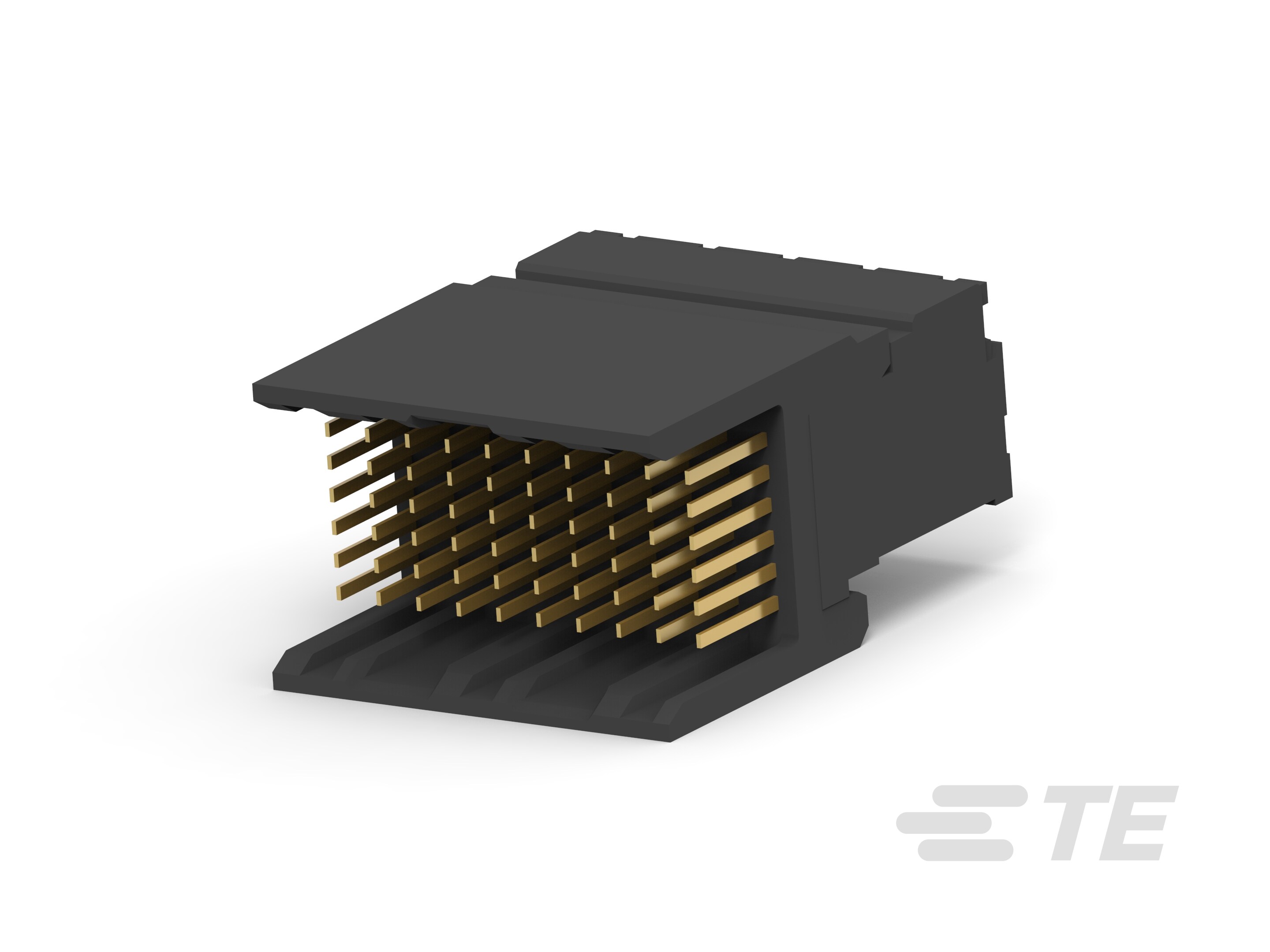

2143012-3

AMP2143012-3
Heilind Number:AMP2143012-3
Manufacturer:TE Connectivity
Manufacturer Number:2143012-3
Datasheet:Drawing
ECAD Model:
3D Model

Description:

IMP100S,H,RA2P10C,UG,OEW39,5.5

More >>

Specifications

AttributeValue
Product Category:
Backplane Connectors & Accessories Backplane Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2143012-3
Series:IMPACT
Amperage:.75 A
Connector Type:Header
Gender:Plug
Housing Material:LCP (Liquid Crystal Polymer)
Number of Rows:6
Mount Type:Board Mount
Termination Method:Through Hole - Press-Fit
Contact Material:Copper-Nickel-Silicon
Pitch:.075 in, 1.9 mm
Voltage:30 V AC, 30 V DC
Contact Type:Pin
Contact Length:18.9 mm, .217 in, 5.5 mm
Row Spacing:.053 in, 1.35 mm
Impedance:100 Ω
Component Type:Connector Assembly
PCB Hole Diameter:.015 in, .39 mm
Number of Pairs:20
Number of Positions:60
Data Rate:20 - 25 Gb/s
Housing Color:Black
Mount Orientation:Vertical
GPL:K74
Tail Length:.047 in, 1.2 mm
Packaging:Box & Tube, Tube
Operating Temperature Range:-55 - 85 °C, -67 - 185 °F
Circuit Application:Signal
Contact Mating Area Plating:Gold
Contact Mating Area Plating Thickness:29.92 - 59.84 µin, .76 µm
PCB Retention:With
Contact Underplating Material:Nickel
PCB Thickness (Recommended):1.6 mm
Connector Height:12.7 mm, .49 in
PCB Retention Type:Action/Compliant Tail
Sealable:No
Mating Alignment:With
Mating Alignment Type:Polarization
GPL Description:Data and Devices
Connector and Contact Terminate To:Printed Circuit Board
Product Code:L870
Number of Columns:10
Number of Signal Positions:40
Contact Design:Dual Beam
Contact Layout:Inline
Contact Transmits:Signal (Data)
Connector Length:.74 in
Connector System:Board to Board
UL Agency Certification:E28476
Contact Termination Plating:Tin
Stackable:No
Connector Product Type:Connector
Pairs Per Column:2
Contact Style:Press-Fit
Board to Board Configuration:Right Angle
Contact Underplating Thickness:1.27 µm, 50 µin
PCB Contact Termination Area Plating Finish:Matte
Connector Width:24.6 mm, .96 in
Mating Retention:Without
Make First / Break Last:No
Shroud Type:Partial
PCB Contact Termination Area Plating Thickness:30 - 60 µin, .76 - 1.52 µm
Guide Location:Unguided
Number of Ground Positions:20
End Wall Location:Open
Guide Hardware:Without
Signal Arrangement:Differential
Material Flammability Standard:UL 94V-0
Part Aliases:2143012-3
SKU:AMP2143012-3

Detailed Description

Experience high-speed data transmission with our IMPACT series connector assembly. Perfect for signal applications, this board-to-board connector features a dual-beam contact design with 60 positions, 40 of which are dedicated to signal transmission. With a data rate of 20-25 Gb/s and impedance of 100 Ω, it ensures reliable performance. The connector is housed in durable LCP material, meeting UL 94V-0 flammability standards. Featuring press-fit termination for secure attachment to a 1.6mm PCB, it operates in a wide temperature range from -55 to 85°C. Gold-plated contacts with a thickness of .76µm provide excellent conductivity. Its compact design, with a vertical mount orientation and right-angle configuration, allows for efficient PCB-to-PCB connections. RoHS compliant and UL certified, this connector is the ideal choice for high-speed data applications.
