MS3456LS20-3P

AMP2246667_1
Heilind Number:AMP2246667-1
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Number:MS3456LS20-3P
Datasheet:Product Specification
ECAD Model:
3D Model

Description:

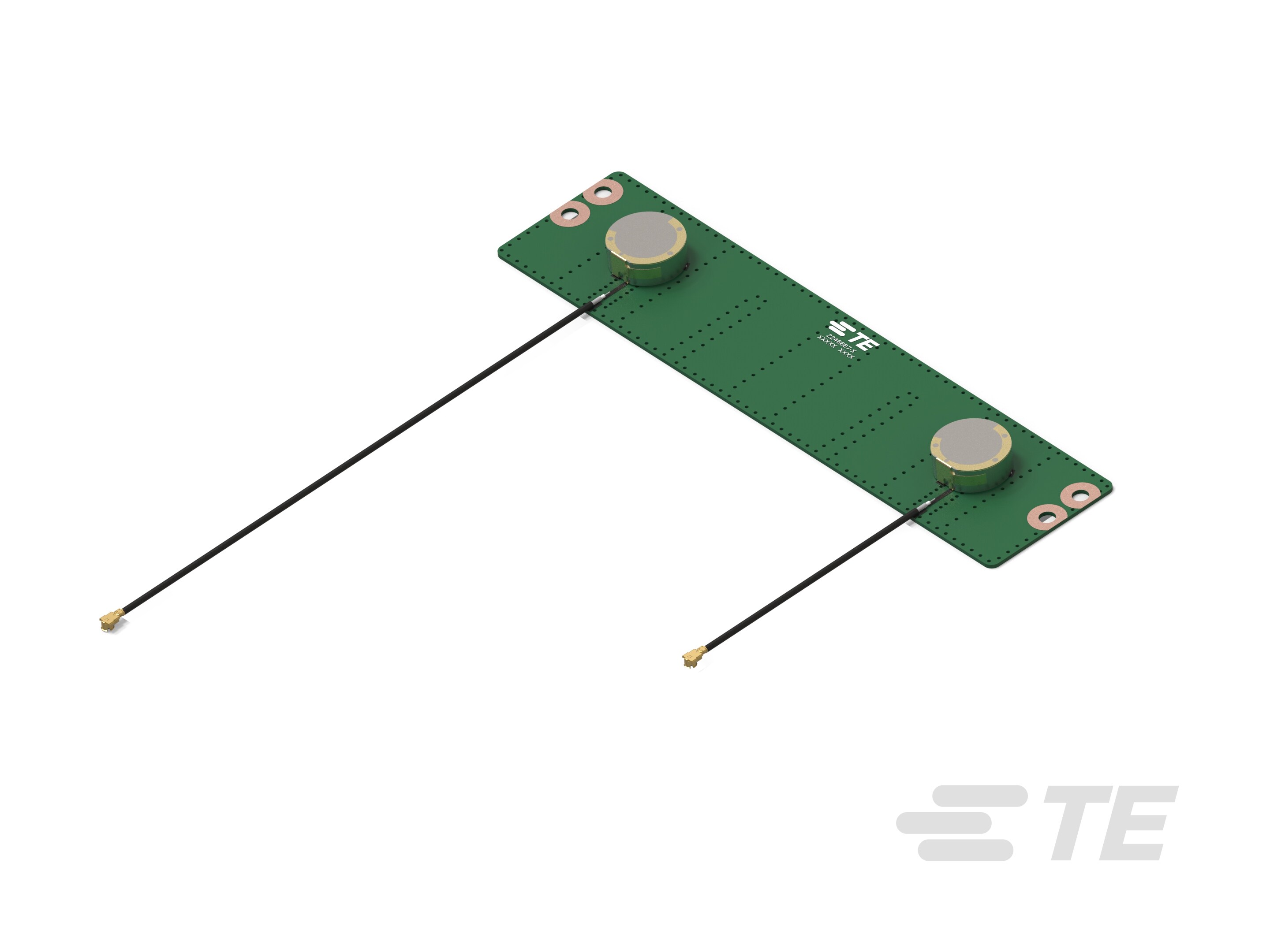

Stamped Metal Antenna, Dual Band, Wi-Fi, Internal/Embedded Mount, Stud/Screw/Lug Mount, MHF / MHF1 / U.FL, Omnidirectional, Multiple Ports

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Part Number:Aero-Electric Connector | Conesys MS3456LS20-3P
Impedance:50 Ω
Polarization:Vertical Linear
Protocol:802.11a, 802.11ac, 802.11ad, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Mounting Style:Lug, Screw Mount, Stud
VSWR:3.5:1
Antenna Type:Stamped Metal
Antenna Termination Type:MHF, MHF1, U.FL, UMCC
Application:Bluetooth, Wi-Fi
Band Type:Dual Band
Center Frequency:2441.75 MHz, 5512.5 MHz
Directionality:Omnidirectional
Frequency Range:2400 - 2483.5 MHz, 5150 - 5875 MHz
Gain:1.2 dB, 4.7 dB
SKU:AMP2246667-1

Detailed Description

Ensure seamless connectivity with this RoHS-compliant dual-band stamped metal antenna, designed for optimal performance in various protocols including ZigBee, Bluetooth, and multiple 802.11 standards. With a gain of 1.2 dB at 2.4 GHz and 4.7 dB at 5 GHz, this antenna guarantees reliable signal strength. Its omnidirectional, vertical linear polarization and screw mount make it versatile for internal/embedded applications. Operating at 50 Ω impedance, it covers frequency ranges of 2.4-2.4835 GHz and 5.15-5.875 GHz, catering to Bluetooth and Wi-Fi functionalities. Terminate with MHF, MHF1, U.FL, or UMCC connectors for seamless integration. Perfect for diverse wireless communication needs.
