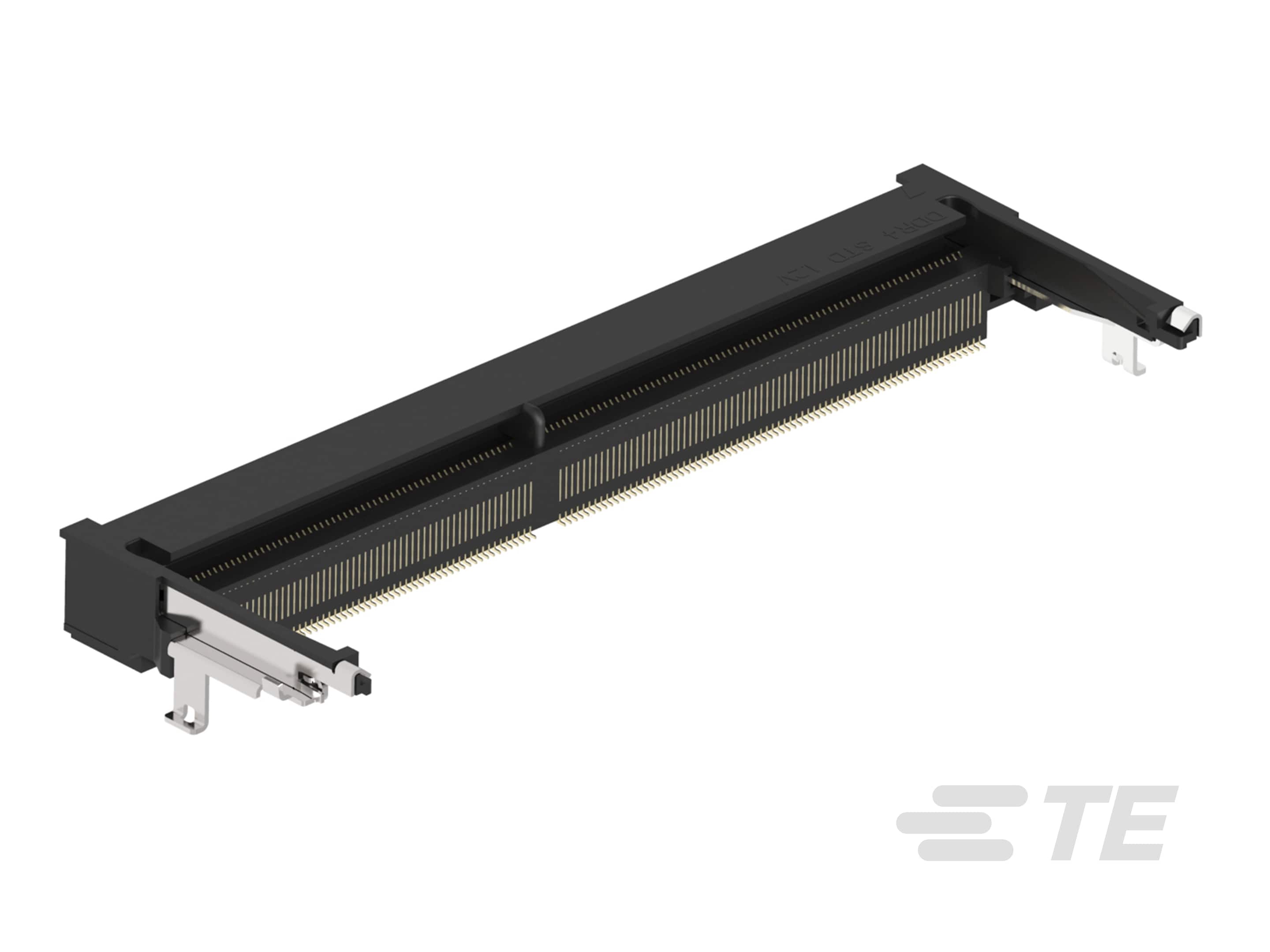

2309411-2

Heilind Number:	AMP2309411-2
Manufacturer:	TE Connectivity
Manufacturer Number:	2309411-2
Datasheet:	2D Model (DXF)
ECAD Model:

Description:

DDR4 SODIMM 260P 8.0H STD

More >>

Specifications

Attribute	Value
Product Category:	Memory Sockets & Connectors DIMM & SIMM Memory Sockets
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 2309411-2
Series:	DDR4 DIMM
Housing Material:	High Temperature Thermoplastic
Number of Rows:	2
Mount Type:	Board Mount
Contact Material:	Copper Alloy
Pitch:	.0197 in, 5 mm
Voltage:	1.2 V
Socket Type:	Memory Card
Row Spacing:	.322 in, 8.2 mm
Keying:	Standard
Package Quantity:	500
Key Type:	Offset Left
Latch Material:	High Temperature Thermoplastic
Contact Amperage:	.5 A
Number of Positions:	260
Housing Color:	Black
GPL:	053
Profile:	High
Packaging:	Tape & Reel
Operating Temperature Range:	-55 - 85 °C, -67 - 185 °F
Circuit Application:	Power
Contact Mating Area Plating:	Gold
Contact Mating Area Plating Thickness:	.127 µm, 5 µin
PCB Retention:	With
Contact Underplating Material:	Nickel
PCB Contact Termination Area Plating:	Gold Flash
PCB Retention Type:	Solder Peg
Sealable:	No
GPL Description:	Data and Devices
Connector and Contact Terminate To:	Printed Circuit Board
Product Code:	L540
Connector System:	Cable-to-Board
Stack Height:	.315 in, 8 mm
Ejector Type:	Locking
PCB Mounting Style:	Surface Mount
Ejector Location:	Both Ends
Center Key:	Offset Left
Center Post:	Without
DRAM Type:	Small Outline (SO)
Insertion Style:	Cam-In
Socket Style:	SO DIMM
Module Orientation:	Right Angle
Retention Post Location:	Both Ends
Retention Post Material:	Stainless Steel
Material Flammability Standard:	UL 94V-0
Part Aliases:	2309411-2
SKU:	AMP2309411-2

Detailed Description

Upgrade your system's memory with our DDR4 SODIMM 260P 8.0H STD. Designed for optimal performance, this memory module features a high-temperature thermoplastic housing in sleek black. With 260 positions and a voltage of 1.2V, it offers reliable connectivity and efficient power usage. The gold-plated contact mating area ensures a secure and durable connection to your printed circuit board, while the UL 94V-0 flammability standard guarantees safety. Operating in a wide temperature range from -55 to 85°C, this module is suitable for various environments. Perfect for power circuit applications, it is lead-free and RoHS compliant, making it an environmentally friendly choice. Whether you're a tech enthusiast or a professional, this DDR4 SODIMM is essential for enhancing your system's performance. Packaged in tape & reel for convenience, it's ready for installation via board mount. Upgrade your memory with confidence and experience seamless computing.
