2309414-1

AMP2309414-1
Heilind Number:AMP2309414-1
Manufacturer:TE Connectivity
Manufacturer Number:2309414-1
Datasheet:3DDrawing
ECAD Model:
3D Model

Description:

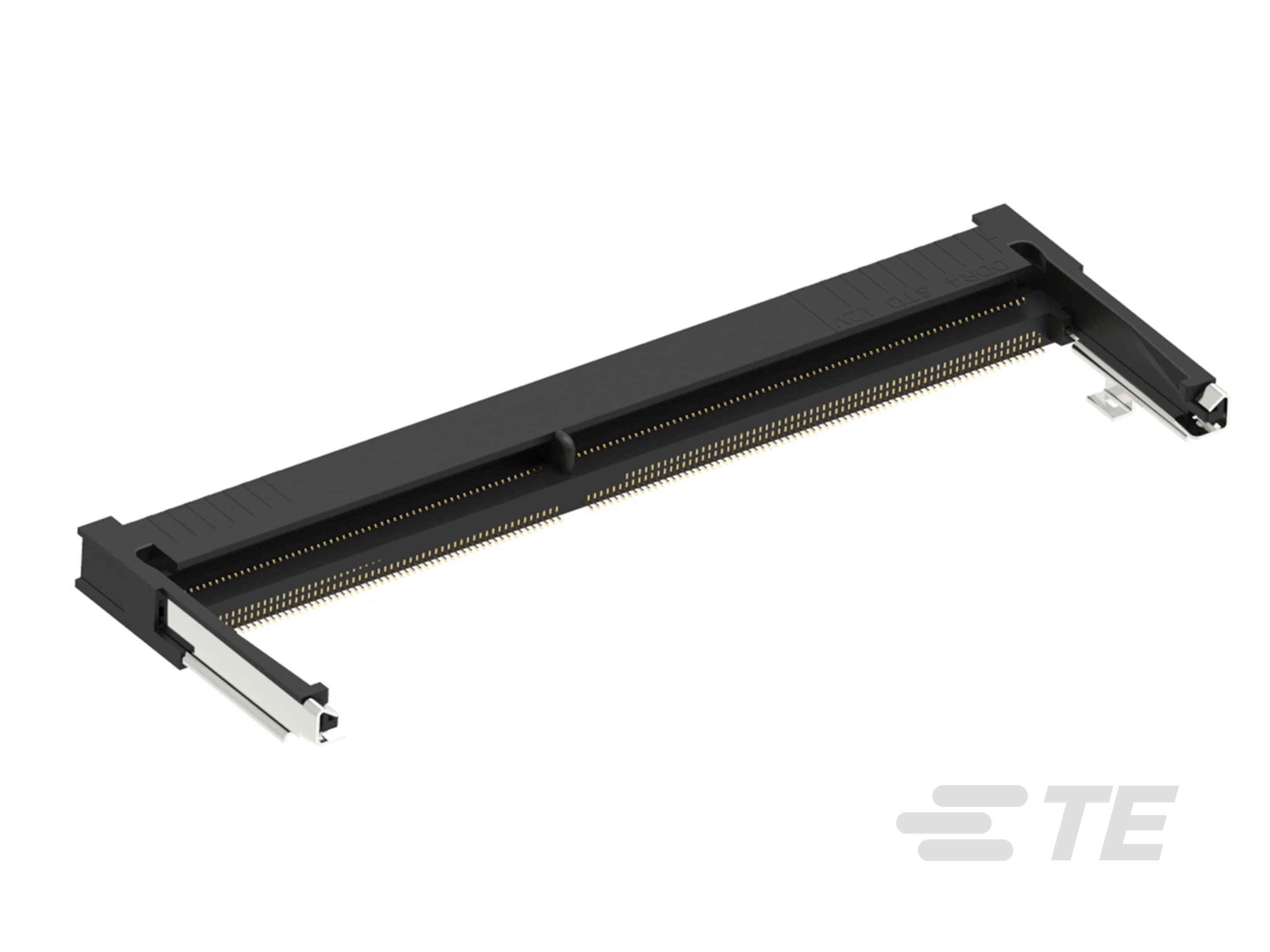

DDR4 SODIMM 260P 9.2H RVS

More >>

Specifications

AttributeValue
Product Category:
Memory Sockets & Connectors DIMM & SIMM Memory Sockets
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2309414-1
Series:DDR4 DIMM
Housing Material:High Temperature Thermoplastic
Number of Rows:2
Mount Type:Board Mount
Contact Material:Copper Alloy
Pitch:.0197 in, 5 mm, 7.3 mm
Voltage:1.2 V
Socket Type:Memory Card
Row Spacing:.322 in, 8.2 mm
Keying:Reverse
Package Quantity:500
Key Type:Offset Right
Latch Material:High Temperature Thermoplastic
Contact Amperage:.5 A
Number of Positions:260
Housing Color:Black
GPL:053
Profile:High
Packaging:Tape & Reel
Operating Temperature Range:-55 - 85 °C, -67 - 185 °F
Circuit Application:Power
Contact Mating Area Plating:Gold Flash
PCB Retention:With
Contact Underplating Material:Nickel
PCB Contact Termination Area Plating:Gold Flash
PCB Retention Type:Solder Peg
Sealable:No
GPL Description:Data and Devices
Connector and Contact Terminate To:Printed Circuit Board
Product Code:L540
Connector System:Cable-to-Board
ECCN:EAR99
Stack Height:.362 in, 9.2 mm
Ejector Type:Locking
PCB Mounting Style:Surface Mount
Ejector Location:Both Ends
Center Key:Offset Right
Center Post:Without
DRAM Type:Small Outline (SO)
Insertion Style:Cam-In
Socket Style:SO DIMM
Module Orientation:Right Angle
Retention Post Location:Both Ends
Retention Post Material:Stainless Steel
Material Flammability Standard:UL 94V-0
Part Aliases:2309414-1
SKU:AMP2309414-1

Detailed Description

Enhance your memory module with the DDR4 SODIMM 260P 9.2H RVS, a high-performance connector designed for seamless board mount installation. Featuring a durable housing made of high-temperature thermoplastic in sleek black, this connector boasts 260 positions with a contact amperage of .5 A and a low operating voltage of 1.2 V. With gold flash plating on contact mating areas and PCB terminations, it ensures reliable power delivery even in extreme temperatures ranging from -55 to 85°C. RoHS compliant and lead-free solder capable, it meets stringent quality standards for eco-friendly manufacturing. Perfect for various applications including power circuits, this connector is packaged in a quantity of 500 for convenience and is tape and reel compatible for efficient assembly. Upgrade your connectivity with this cutting-edge DDR4 SODIMM connector.
