2323743-8

AMP2323743-8
Heilind Number:AMP2323743-8
Manufacturer:TE Connectivity
Manufacturer Number:2323743-8
Datasheet:Material Declaration (XLSX)
ECAD Model:
3D Model

Description:

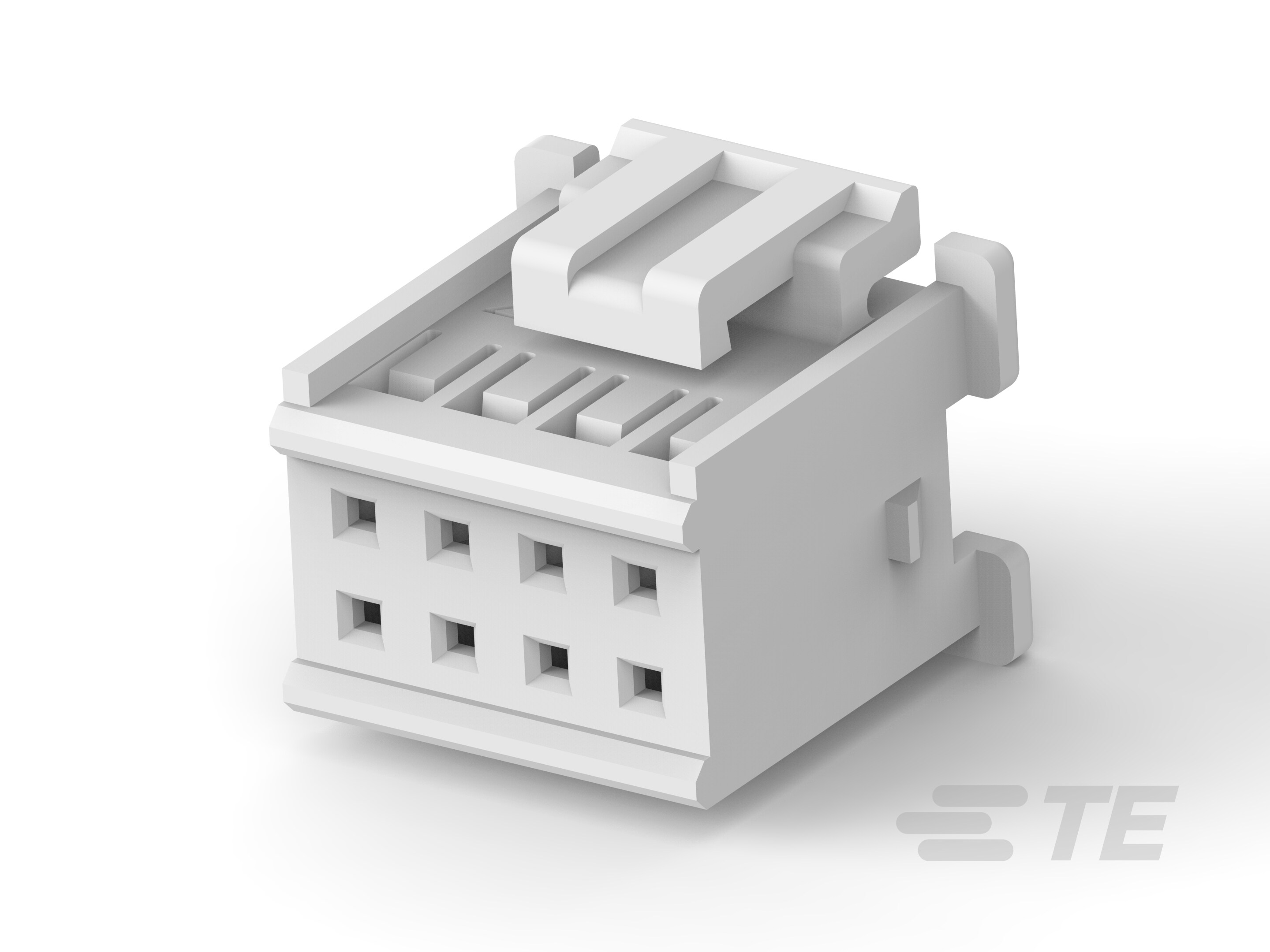

HOUSING, PLUG, GWT, 8P, DUAL ROW, EP2.5

More >>

Specifications

AttributeValue
Product Category:
Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2323743-8
Amperage:3 A
Connector Type:Housing
Housing Material:Nylon
Number of Rows:2
Mount Type:Cable Mount (Free-Hanging)
Termination Method:Crimp
Overall Width:12.32 mm, .485 in
Overall Height:.326 in, 8.3 mm
Overall Length:11.04 mm, .435 in
Pitch:.098 in, 4.2 mm
Contact Type:Socket
Row Spacing:.09 in, 2.5 mm
Number of Positions:8
Housing Color:Natural
Operating Temperature Range:-55 - 105 °C, -67 - 221 °F
Circuit Application:Power & Signal
Wire Size:.13 - .33 mm², 22 - 26 AWG
Connector System:Wire to Wire
Mating Retention:With
Connector and Housing Type:Plug
Operating Voltage:250 VAC
SKU:AMP2323743-8

Detailed Description

Enhance your connectivity with this efficient Housing Plug, designed for optimal performance in dual-row configurations. Crafted from durable Nylon, it ensures reliable operation in demanding environments. With a compact design that offers easy Cable Mount (Free-Hanging) installation, it's perfect for various applications. Featuring 8 positions and a pitch of 4.2mm, it facilitates seamless power and signal transmission. Operating temperature ranging from -55°C to 105°C guarantees consistent functionality even in extreme conditions. RoHS compliant and suitable for wire sizes 22-26 AWG, this Housing Plug is a versatile and essential component for your connectivity needs.
