MS3456W16S-4S

AMP2344654_2
Heilind Number:AMP2344654-2
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Number:MS3456W16S-4S
Datasheet:Product Specification
ECAD Model:
3D Model

Description:

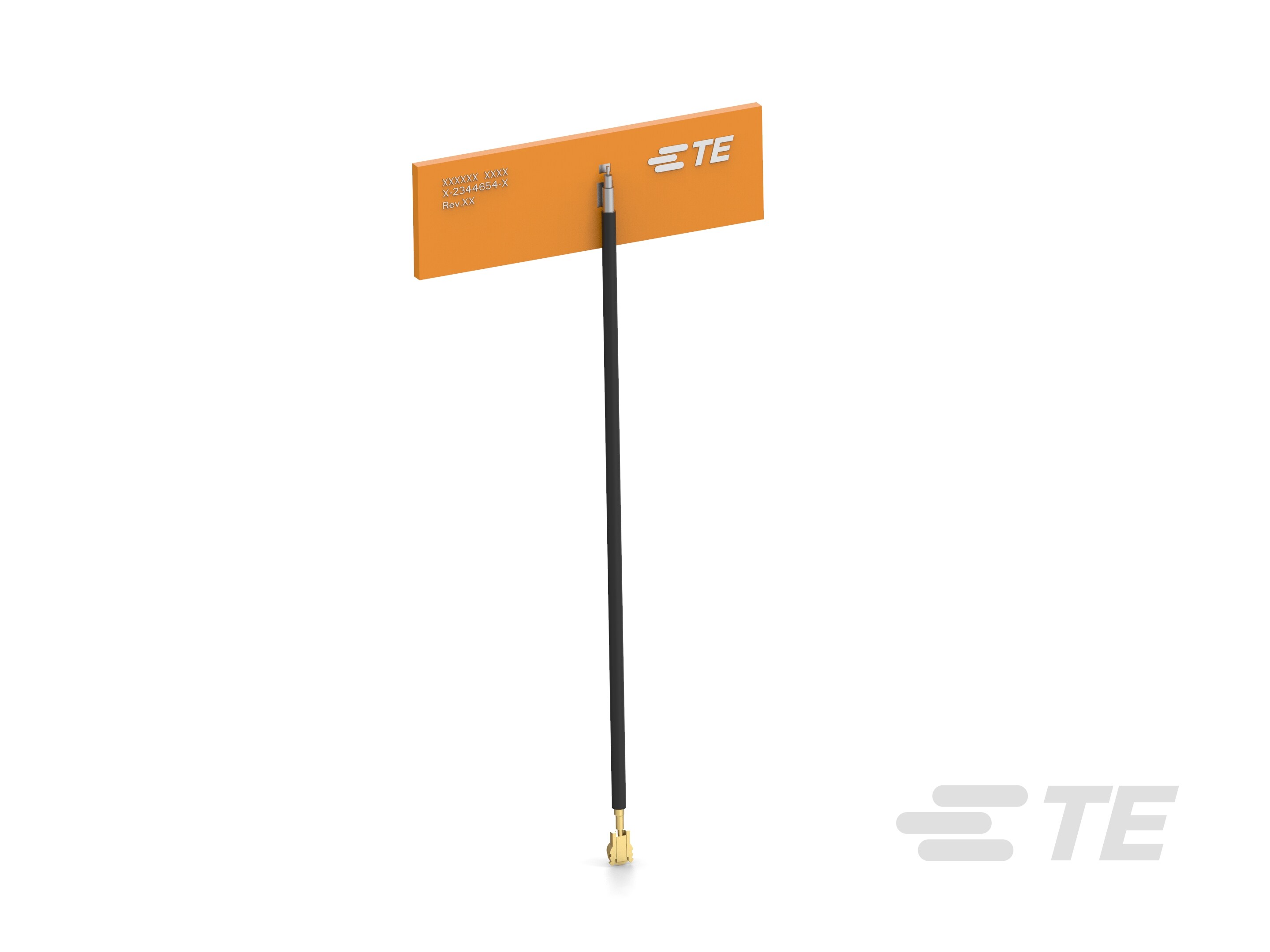

PCB Antenna, Dual Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF / MHF1 / U.FL, Omnidirectional, Single Port, Gain 0 < 3 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Part Number:Aero-Electric Connector | Conesys MS3456W16S-4S
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11ac, 802.11ad, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Mounting Style:Adhesive
VSWR:2:1
Antenna Type:PCB
Antenna Termination Type:MHF, MHF1, U.FL, UMCC
Application:Bluetooth, Wi-Fi
Band Type:Dual Band
Center Frequency:2450 MHz, 5512.5 MHz
Directionality:Omnidirectional
Frequency Range:2400 - 2500 MHz, 5150 - 5875 MHz
Gain:2 dB
SKU:AMP2344654-2

Detailed Description

Stay connected with seamless wireless performance using this dual-band PCB antenna, perfect for ZigBee, Bluetooth, and various 802.11 protocols. Designed for optimal efficiency, it boasts a 2 dB gain and 2:1 VSWR ratio, ensuring reliable signal transmission. Operating across both 2.4 GHz and 5 GHz frequencies, it offers versatility for a range of applications. With a linear polarization and omnidirectional directionality, it guarantees consistent coverage. Its adhesive mount and compact size make it ideal for internal/embedded installation. Compatible with MHF, MHF1, U.FL, and UMCC terminations, it's easy to integrate into your setup. Whether for Bluetooth or Wi-Fi, this antenna is a must-have for achieving high-performance connectivity.
