2344654-4

AMP2344654_4
Heilind Number:AMP2344654-4
Manufacturer:TE Connectivity
Manufacturer Number:2344654-4
Datasheet:3D Model (STP)
ECAD Model:
3D Model

Description:

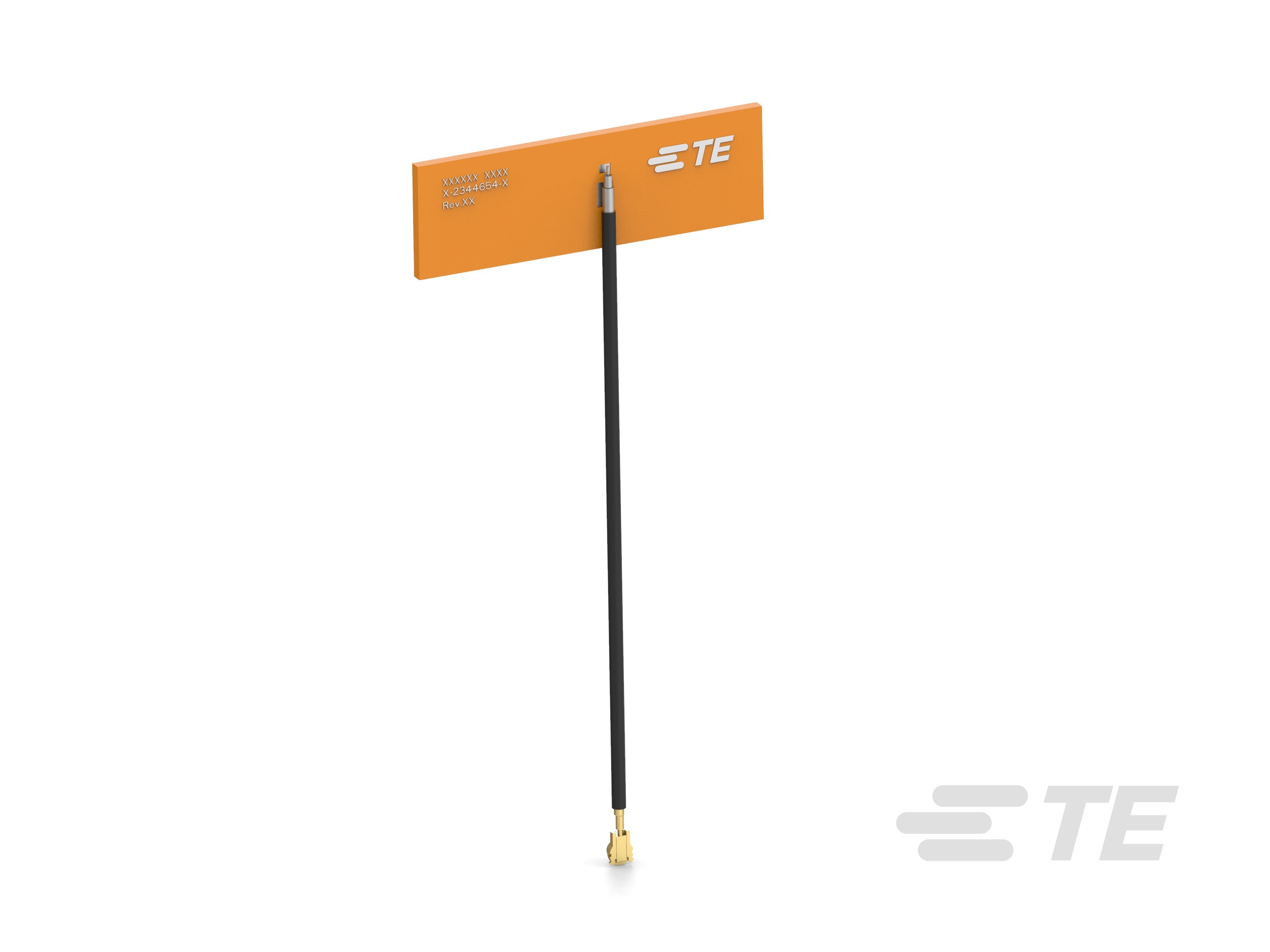

PCB Antenna, Dual Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF / MHF1 / U.FL, Omnidirectional, Single Port, Gain 0 < 3 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2344654-4
Gain:2 dB
VSWR:2:1
Protocol:802.11a, 802.11ac, 802.11ad, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Band Type:Dual Band
Impedance:50 Ω
Antenna Type:PCB
Polarization:Linear
Directionality:Omnidirectional
Mounting Style:Adhesive
Frequency Range:2400 - 2500 MHz, 5150 - 5875 MHz
Center Frequency:2450 MHz, 5512.5 MHz
Application:Bluetooth, Wi-Fi
Antenna Termination Type:MHF, MHF1, U.FL, UMCC
SKU:AMP2344654-4

Detailed Description

Stay connected with high-performance wireless communication using this RoHS-compliant PCB antenna. Operating at a gain of 2 dB with a VSWR of 2:1, it's perfect for ZigBee, Bluetooth, and various 802.11 standards including a, ac, ad, b, g, and n. Designed for dual-band functionality in the 2.4 GHz and 5 GHz ranges, this antenna offers reliable signal reception with an impedance of 50 Ω. Its omnidirectional polarization and adhesive mounting style make it ideal for internal/embedded applications. With a center frequency of 2450 MHz and 5512.5 MHz, it ensures seamless connectivity in both Wi-Fi and Bluetooth devices. Compatible with MHF, MHF1, U.FL, and UMCC terminations, this antenna guarantees easy integration for optimal performance. Whether for personal or professional use, it's the perfect choice for enhancing your wireless connectivity experience.
