MS3456W16S-5PX

AMP2344655_1
Heilind Number:AMP2344655-1
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Number:MS3456W16S-5PX
Datasheet:3D Model (PDF)
ECAD Model:
3D Model

Description:

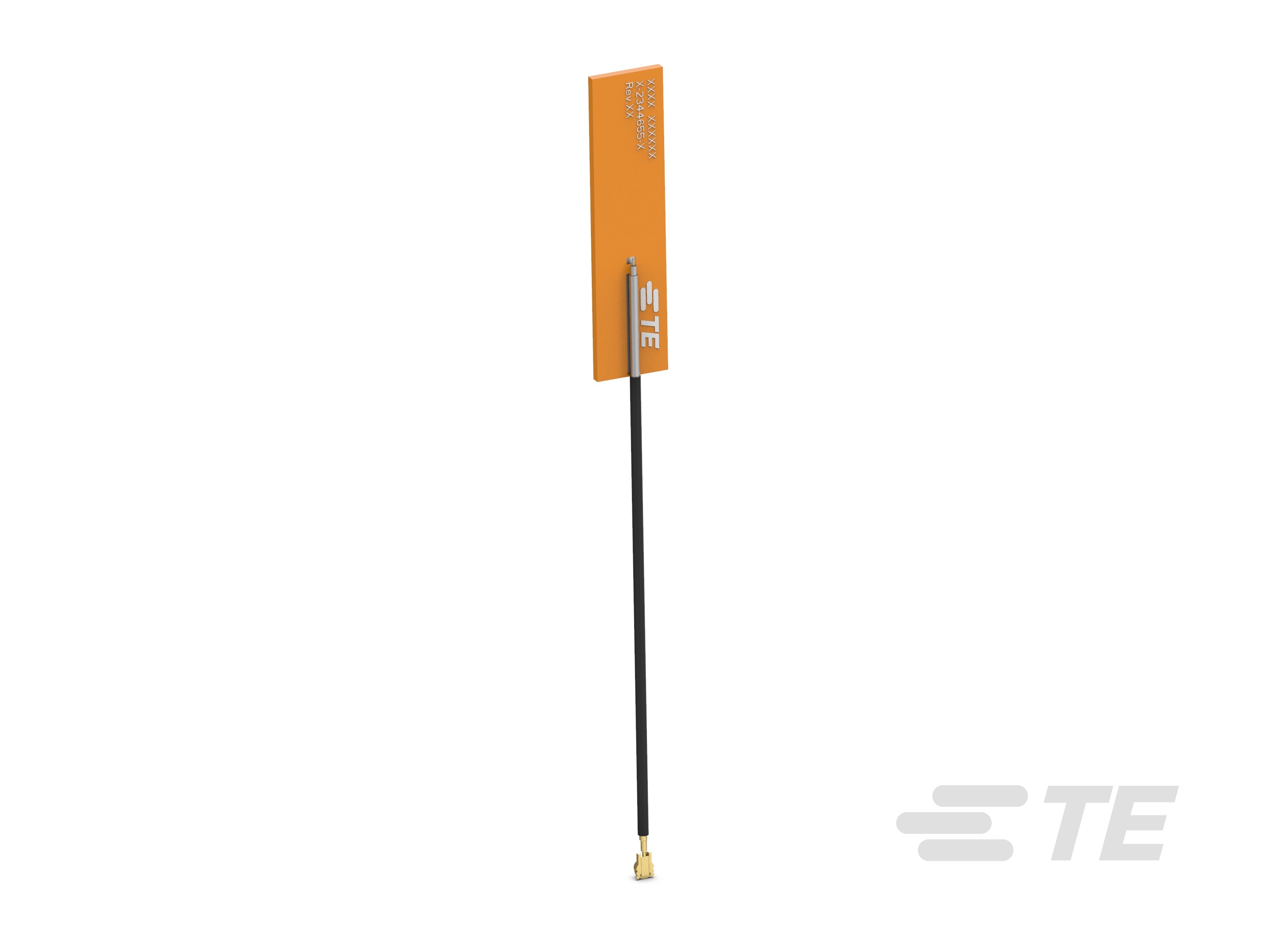

PCB Antenna, Triple Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF / MHF1 / U.FL, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Part Number:Aero-Electric Connector | Conesys MS3456W16S-5PX
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Mounting Style:Adhesive
VSWR:2.7:1
Antenna Type:PCB
Antenna Termination Type:MHF, MHF1, U.FL, UMCC
Application:Bluetooth, Wi-Fi
Band Type:Triple Band
Center Frequency:2550 MHz, 6000 MHz
Directionality:Omnidirectional
Frequency Range:2450 - 2650 MHz, 5000 - 7000 MHz
Gain:5.9 dB
SKU:AMP2344655-1

Detailed Description

Stay connected seamlessly with our Triple Band PCB Antenna, designed for Wi-Fi and Bluetooth applications. This internal/embedded mount antenna features adhesive backing for easy installation, making it ideal for a variety of devices. With a gain of 5.9 dB and an omnidirectional polarization, it ensures reliable signal transmission in all directions. Operating in the 2450-2650 MHz and 5000-7000 MHz frequency ranges, it is compatible with ZigBee, Bluetooth, and various 802.11 standards. The antenna terminates in MHF, MHF1, U.FL, or UMCC connectors, providing flexibility for different setups. Whether for personal or professional use, this antenna is a versatile choice for enhancing wireless connectivity.
