MS3456W16S-8PX

AMP2344656_2
Heilind Number:AMP2344656-2
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Number:MS3456W16S-8PX
Datasheet:2D Model (DXF)
ECAD Model:
3D Model

Description:

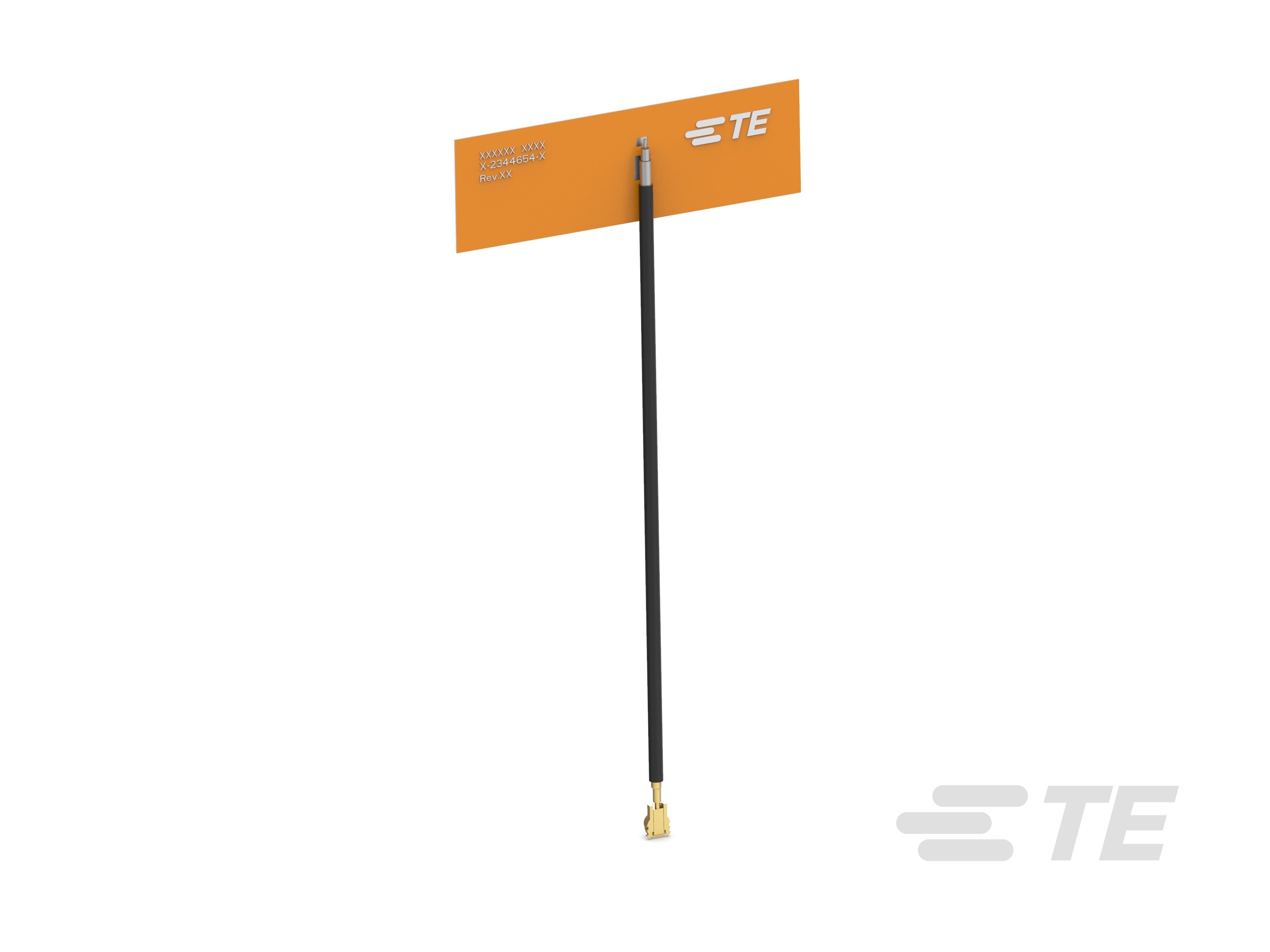

Flexible PCB (FPC) Antenna, Dual Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF / MHF1 / U.FL, Omnidirectional, Single Port, Gain 0 < 3 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Part Number:Aero-Electric Connector | Conesys MS3456W16S-8PX
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11ac, 802.11ad, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Mounting Style:Adhesive
VSWR:2:1
Antenna Type:Flexible PCB, Thin PCB
Antenna Termination Type:MHF, MHF1, U.FL, UMCC
Application:Bluetooth, Wi-Fi
Band Type:Dual Band
Center Frequency:2450 MHz, 5512.5 MHz
Directionality:Omnidirectional
Frequency Range:2400 - 2500 MHz, 5150 - 5875 MHz
Gain:2 dB
SKU:AMP2344656-2

Detailed Description

Stay connected with our dual-band Wi-Fi antenna, designed for seamless integration in a variety of devices. This flexible PCB antenna offers omnidirectional coverage and can be easily mounted internally with adhesive. With a gain of 2 dB and a VSWR of 2:1, it ensures reliable signal strength in the 2.4 GHz and 5 GHz bands. Supporting protocols such as ZigBee, Bluetooth, and various 802.11 standards, it's perfect for wireless communication applications. The antenna impedance of 50 Ω and linear polarization guarantee efficient signal transmission, while the choice of MHF, MHF1, U.FL, or UMCC termination options provides flexibility in installation. Ideal for Bluetooth and Wi-Fi connectivity, this antenna is a must-have for any wireless system requiring high-performance internal antennas.
